WIRING CONNECTION

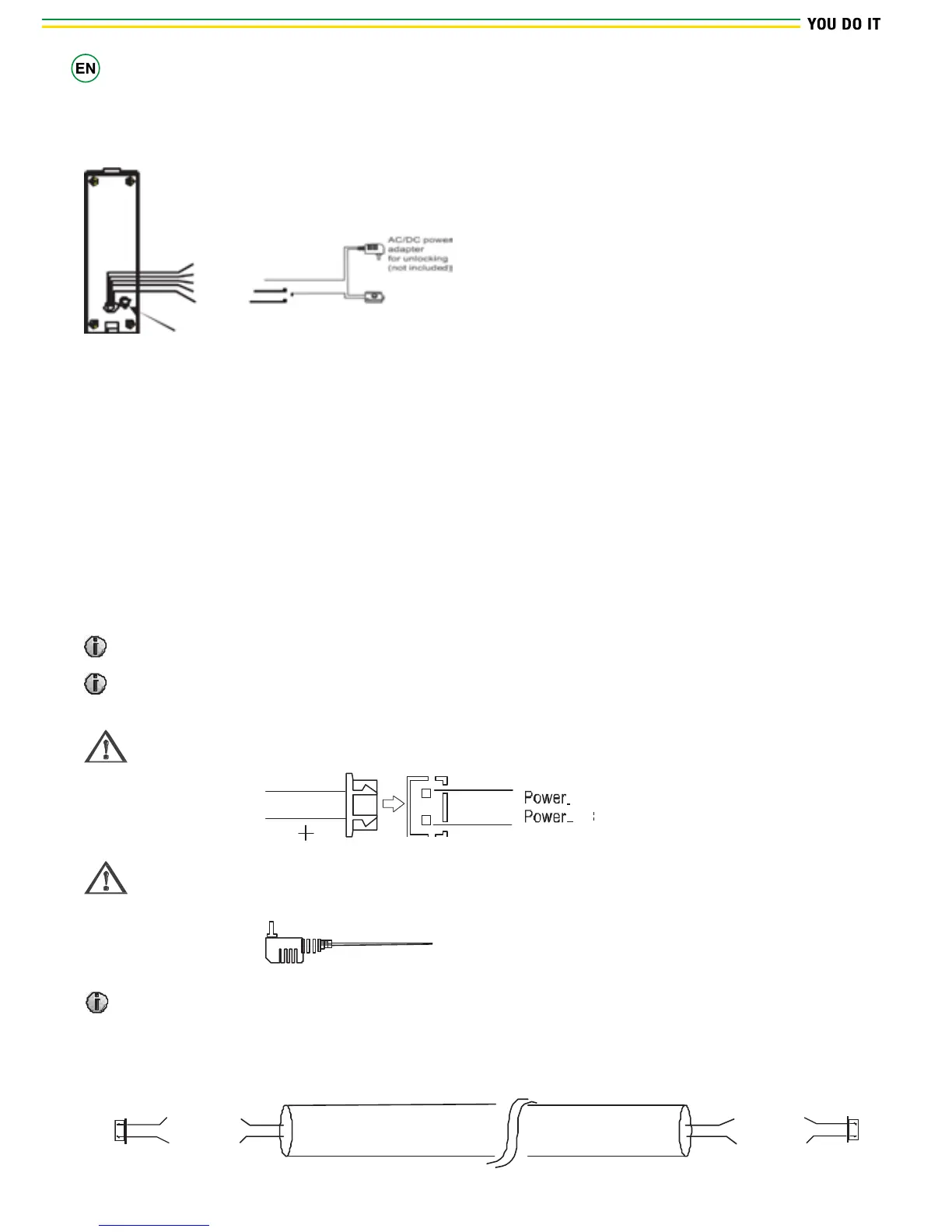

1. Wiring diagram for outdoor doorbell
1. Red: DC15
2. Black: GND
3. Brown: COM
4. Yellow: NC
5. Blue: NO
Regolazione volume
altoparlante
Serratura elettrica
(non inclusa)
1. RED: 15Vdc
2. Black: GND
3/4. Brown/Yellow - COM/NC: to magnetic lock
3/5. Brown/Blue - COM/NO: to magnetic lock
2. Wiring diagram for internal monitor
User can connect up to 2 outdoor doorbell, 2 outdoor cameras and 4 internal monitos (1 master and 3 slave). Outdoor cameras
must use a separate power supply.
Notes on wiring connection
The lock/source/camera is not included in the package.
Please check that the socket of power supply is correct.
Please first pull out the switching power supply of the device before installation.
DC15V
The wiring connection requirement:
- 2 ordinary non-UTP wiring cable
- Eective distance from the outdoor camera to furthest indoor monitor:
cable section 0,2mm 2≤28m
cable section 0,3mm 2≤50m
DC+/Video/Audio
GND
To activate lock, one relay with C-NO-NC contacts is available.
