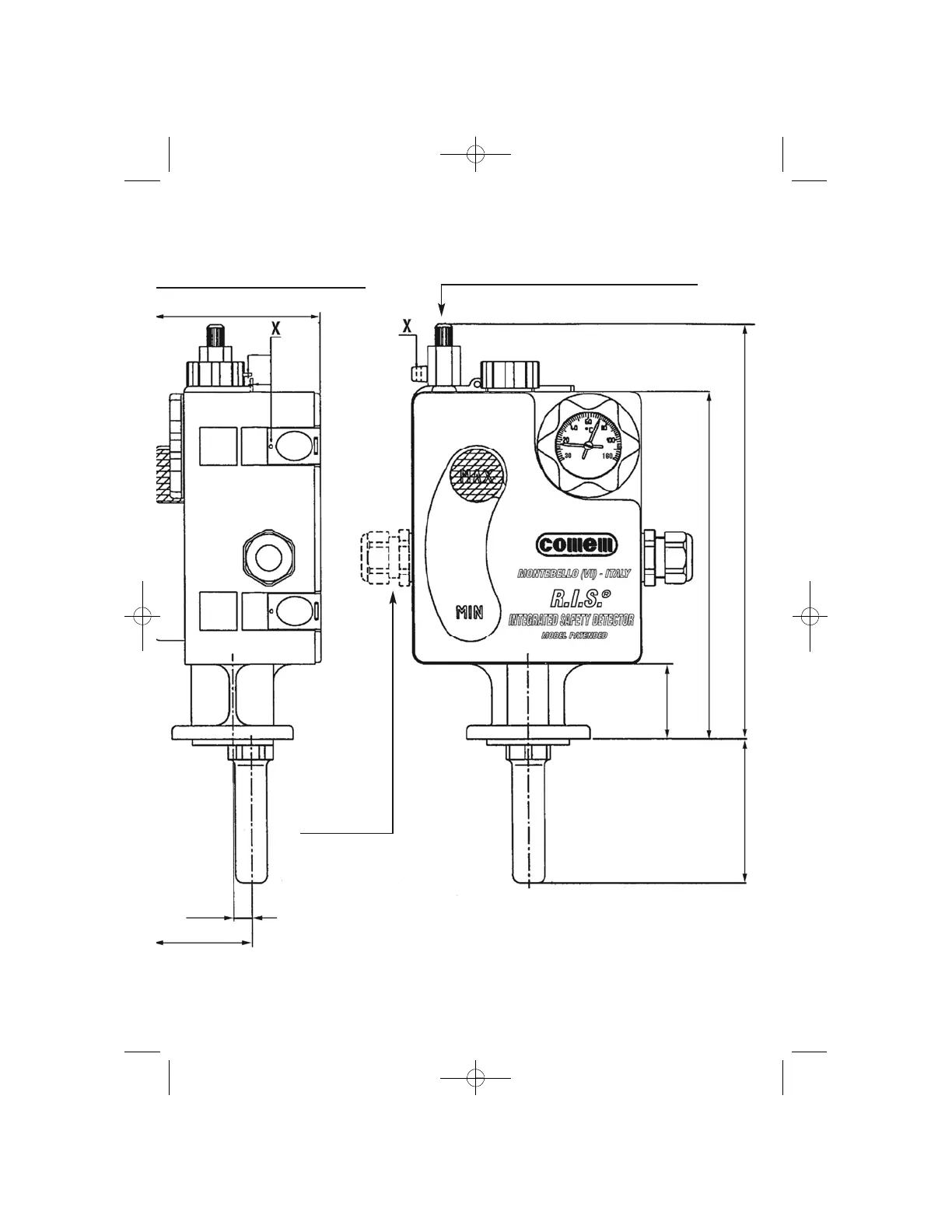

COMEM R.I.S. - Device Dimensions and Sealing; Overall Dimensions; Sealing Hole Details

COMEM manuale uso RIS 2010 7:COMEM Uso RIS 6-12-2010 9:50 Pagina 34
PER TEST DI VERIFICA (SU RICHIESTA)
FOR CHECKING TEST (ON REQUEST)
FÜR CHECK-PRÜFUNG (AUF WUNSCH)
POUR ESSAI DE CONTROLE (SUR DEMANDE)
RA TEST DE COMPROBACION
(
A PETICION
)
RUBINETTOSFIATO-PRELIEVOGASG1/8
GAS LEAK/DRAW VALVE G 1/8
GAS ENTLÜFTUNGS/ENTNAHMEVENTIL G 1/8
ROBINET PURGE/PRELEVEMENT GAZ G1/8
GRIFO DE EXPULSION - TOMA DE GAS G 1/8
116
SU RICHIEST
A
ON REQUES
T
AUF WUNSCH
SUR DEMAND
E
A PETICION
12,5
67
PART. “X”: FORI PER SIGILLATURA-PIOMBATURA
PART. “X”: SEALING HOLES
DETAIL “X”: BOHRUNGEN FÜR VERSIEGLUNG/PLOMBIERUNG
DETAIL “X”: TROUS POUR SCELLAGE/PLOMBAGE
DETALLE “X”:AGUJEROS PARA SELLADO-EMPLOMADURA
33
52
240
100
290
