INSTRUCTIONS FOR THE USER
43

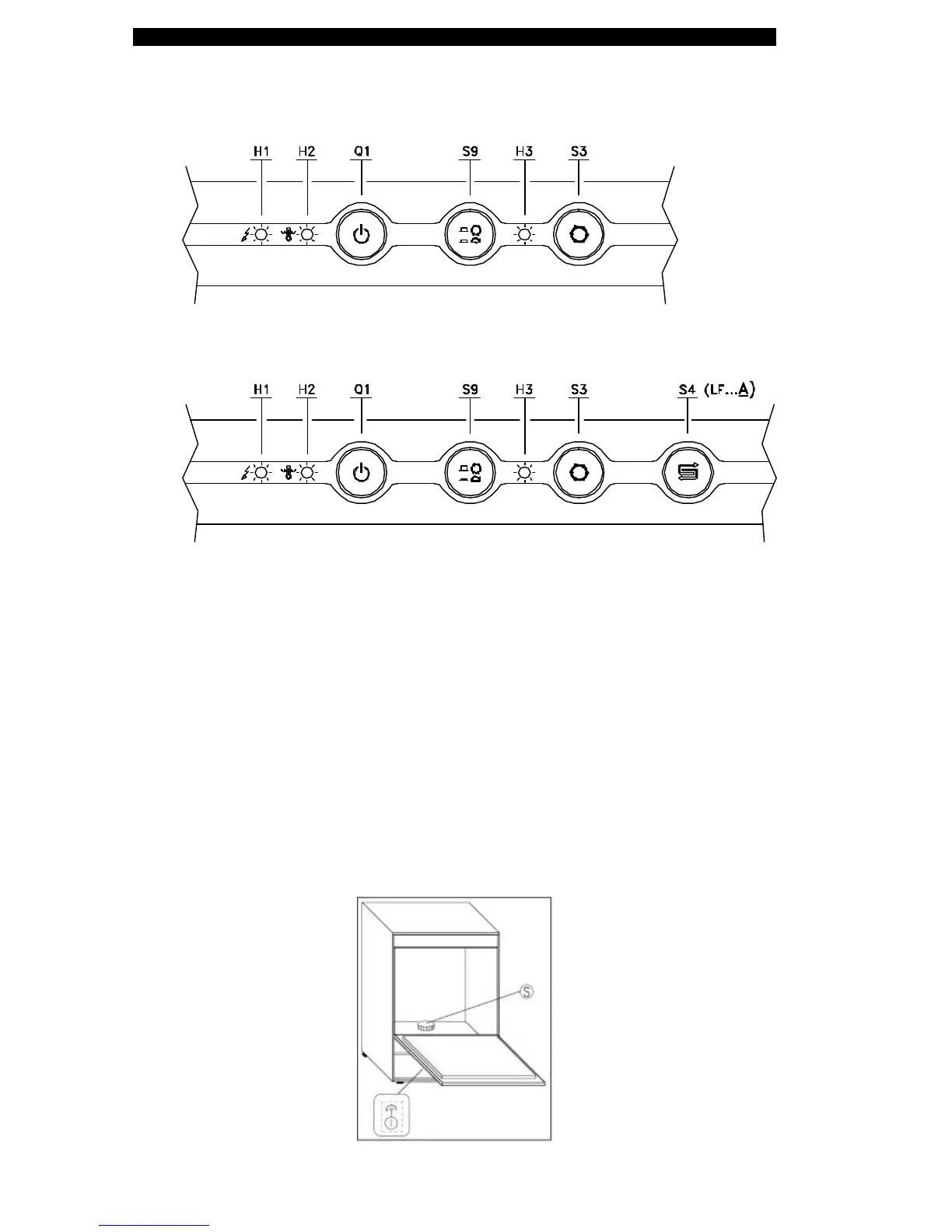

CONTROL PANEL
Q1 Main switch
H1 Pilot lamp "machine ON"
H2 Pilot lamp "machine READY"
H3 Pilot lamp "machine WORKING"
S3 Push button "CYCLE START"
S4 Push button "REGENERATION START" (only mod. LF…A)
S9 Cycle selector
S Plug
S Salt container (only mod. LF…A)
I Regulating screw for rinse aid injector
