Comestero Group RR6 HD PRO - Installing the Reading Head with Frame

WorldKey UltraLite - My RR6 HD PRO | Quick Guide
28
Figure 5
1
11
1 Reading head
2
22
2 Vending machine surface
3
33
3 Fixing nut

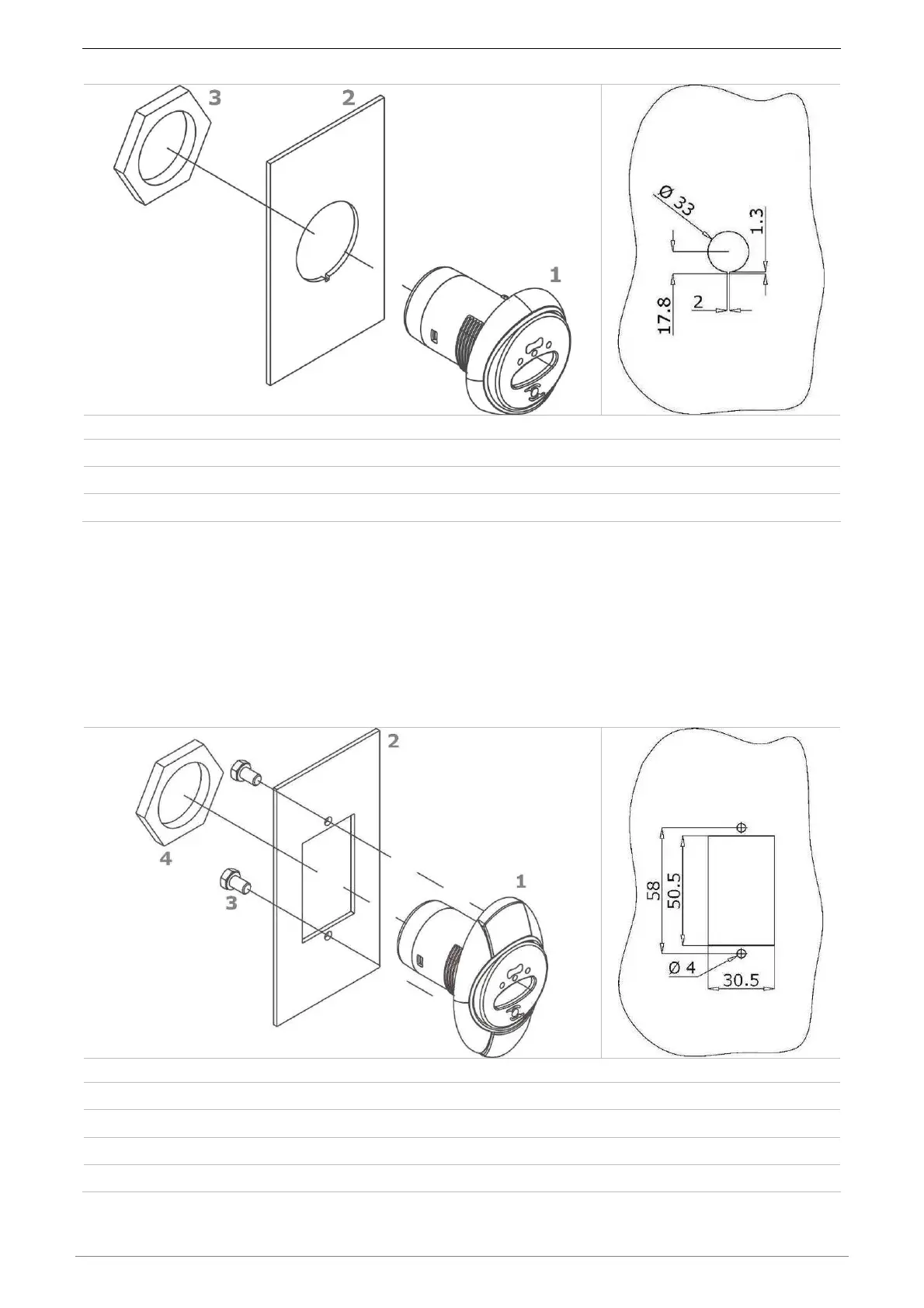

5.2 Installing the reading head with frame
If the WorldKey UltraLite is installed in a vending machine that already has a hole from
previously used cashless systems, the oval shake frame supplied must be inserted
before the reader, in order to close up the rectangular hole. There is a projection on the
perimeter of the reading head to prevent the round frame from turning.
Figure 6
1
11
1 Reading head
2
22
2 Vending machine surface
3
33
3 Fixing screws
4
44
4 Fixing nut
