Comet Premium Series - Product Description and Assembly; Safety Symbols and Warnings

DESCRIPTION AND ASSEMBLY
A Motor head
B
ON/OFF main switch
C “No water” light
D “Steam ready” light
E
ON/OFF boiler switch
F Steam adjustment knob
G Hooks for closing head/drum
J Water tank
J
1 Detergent tank
K Water level sensor
H Vacuum connection
H
1 Nozzle of the exible hose
H
2 Outlet plug for steam
I Drum
L Flexible hose
L
1 Suction motor button
L2 Steam/Air delivery safety lock
L3 Steam/Air lever
M Air lter
N Small nylon brush
N1 Small brass brush
N2 Small S/S brush
O Extension tube
P Selector pump switch
I Selector detergent
OFF O
II Selector hot water
only DSG-CAR 3 EXVF (FOAM) model:
P1
Use mode selector:
I steam
OFF O
II compressed air
Q Floor tting, dry dust (only DSG-CAR 3
EXV)
Q1 Floor tting, wet liquid (only DSG-CAR 3
EXV)
Q2 Carpet tting (only DSG-CAR 3 EXV)
Q3 Foaming brush (only DSG-CAR 3 EXVF (FOAM),
do not use with steam)
R Steam pressure gauge
S Round suction brush
S1 Brush for small rectangular nozzle 150
T Big nozzle brush by steam/suction (only DSG-
CAR 3 EXV)
T1 Small rectangular nozzle by steam/suction 150
T2 Small nozzle (STEAM/FOAM, HOT MODE)
T3 Big nozzle brush (only DSG-CAR 3 EXVF
(FOAM))
T4 Foam fitting (only DSG-CAR 3 EXVF (FOAM))
T5 Antifoam additive (only DSG-CAR 3 EXVF
(FOAM))
T6 Small nozzle (DETERGENT INJECTION/EX-
TRACTION, COLD MODE)
U Window wiper steam/suction
U1 Window wiper for small rectangular nozzle 150
V1 Compressed air fitting (only DSG-CAR 3 EXVF
(FOAM))
V2 Compressed air pressure gauge (only DSG-
CAR 3 EXVF (FOAM))
V3 Compressed air knob (only DSG-CAR 3 EXVF
(FOAM))
X Suction at lance
Y
Accessory connection with steam/suction nozzle
Z Drain hose system
Z1 Filter

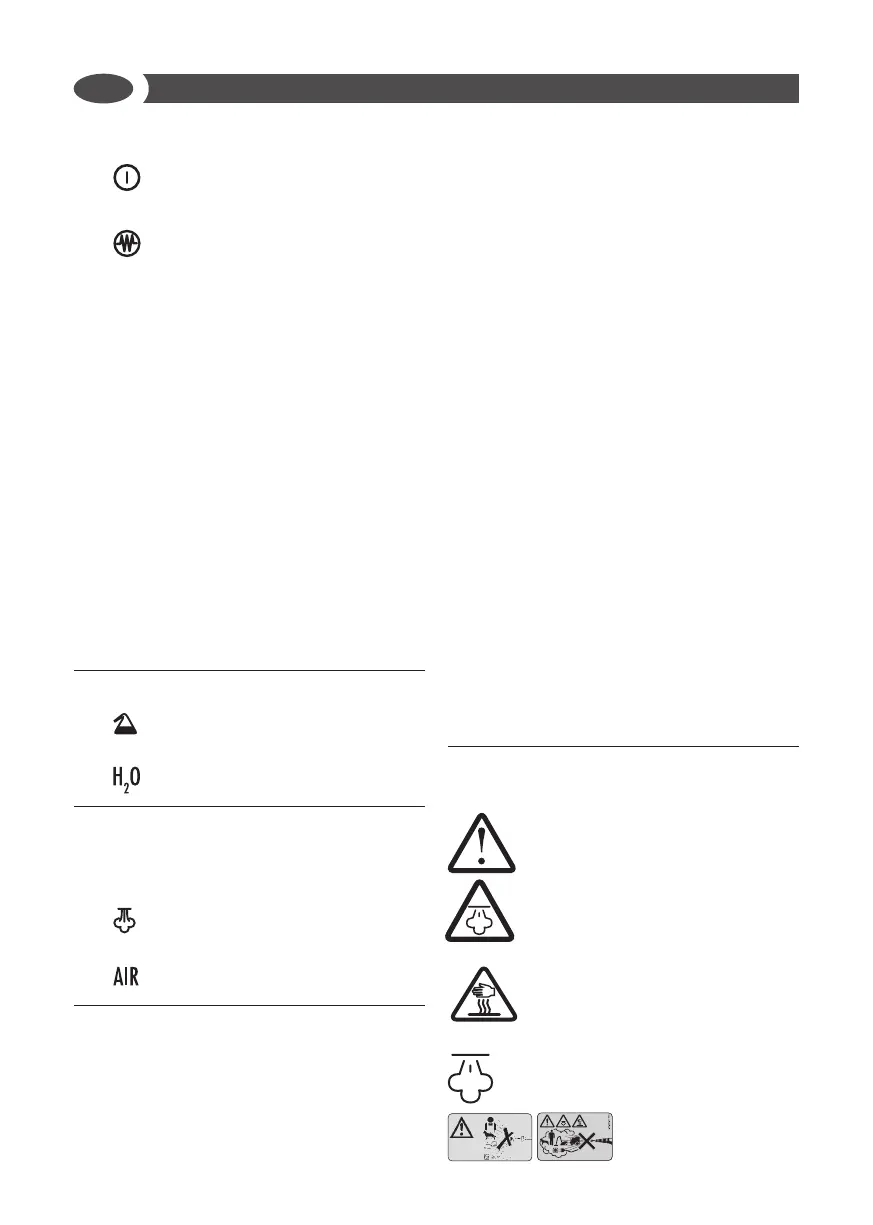

SYMBOL
CAUTION! I t is important to be care-
ful of the following items.
WARNING Danger from hot steam.
WARNING Danger of scalding
Danger from hot steam.
WARNING: High pressure
jets can be dangerous if sub-
