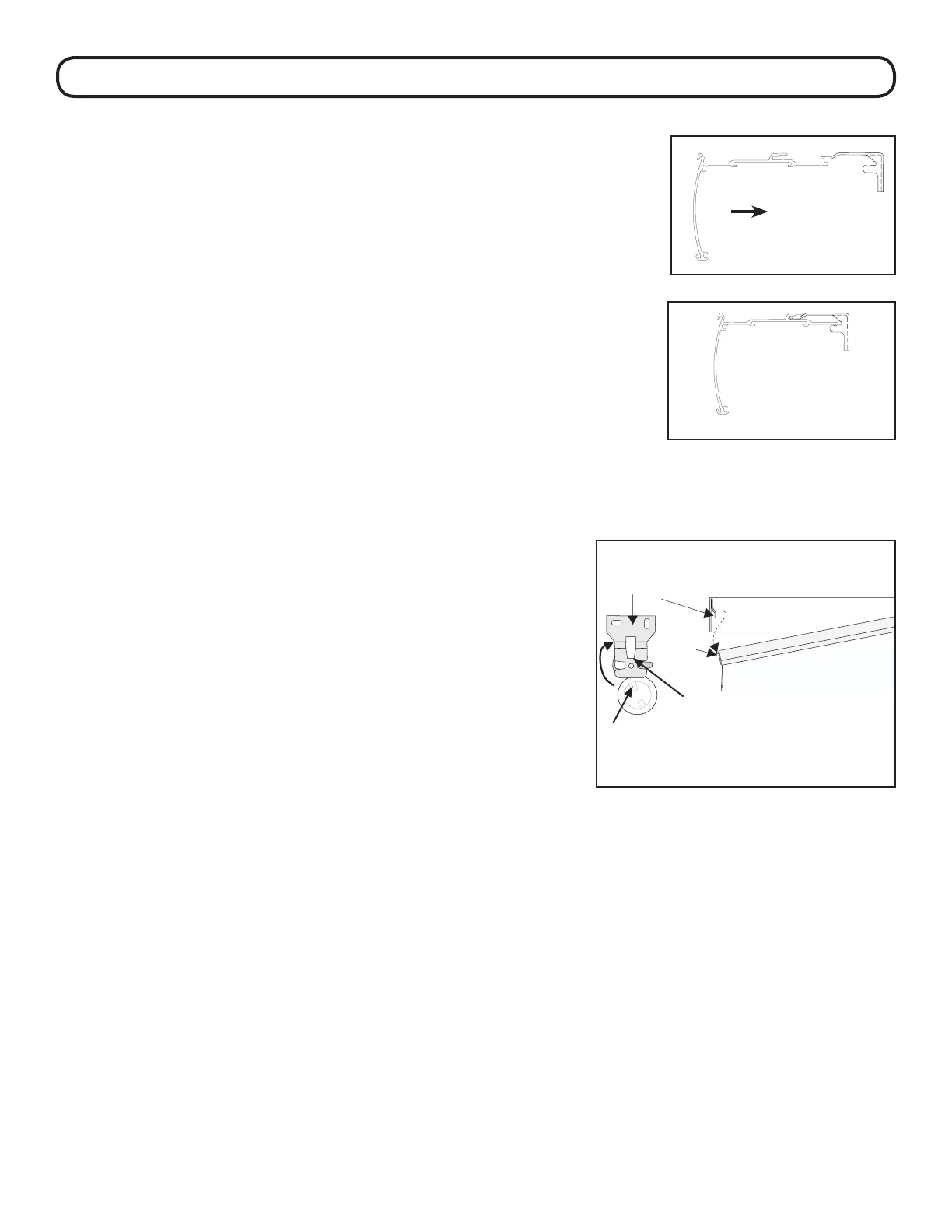

STEP 3: SHADE INSTALLATION
Push the rail back until it
is fully engaged
Center the shade in the window opening and push the head rail
into the mounting brackets as shown.
Once the brackets are secured and level, the fabric roll can be
inserted. Make sure your hands are clean to avoid soiling the
fabric.
Insert the foot of the motor-side bracket into the slotted center
hole of the motor end of the fabric roll. e wire should be
positioned so that it goes up on an inside mount or back on
an outside mount. is will provide easy access to the setting
button.
Set the post of the idler end into the V of the support bracket.
Rotate the T-hook on the support bracket to lock in the post
and secure the fabric roll.
Nub
Support Bracket
Fig.15
Idler Post
V slot
SHADES WITH HEAD RAIL
SHADES WITH NO HEAD RAIL
