Grblcontrol Use Operation
Please check to make sure the CNC machine is assembled and wired correctly first,
then start the machine test run.
1. Plug one end of the USB cable into the motherboard connector and the other one to the computer, then boot the computer.
2. Start the Candle program and verify in the status window that no errors are showing. Normally, it will show "Idle" if it has If an "Alarm" error is showing,
with your mouse, click the Candle "Reset" then "Unlock " buttons in that order to get to the "Idle" condition.
3. Connect the 24V/5A power adapter and turn on the controller board with the "O/I" button in white letters.
4.Next, click on the "Spindle" button to turn on the spindle motor. changes. Set "Feed:" to 500.
5.Click on the left set of direction buttons with the mouse to verify that the X and Y axes are moving properly. Similarly, click on the rightmost up and down buttons
to verify that the Z-axis moves properly. If all of these tests are completed properly, your CNC machine is assembled and wired correctly. Shutting down the
machine for use is done in the opposite way to the start-up process.
6. Turn off the controller board with the white letter "O/I" button.
7. Unplug the 24V/5A power adapter. Shut down the Candle program. Turn off the computer.
Translated with www.DeepL.com/Translator (free version)
1312

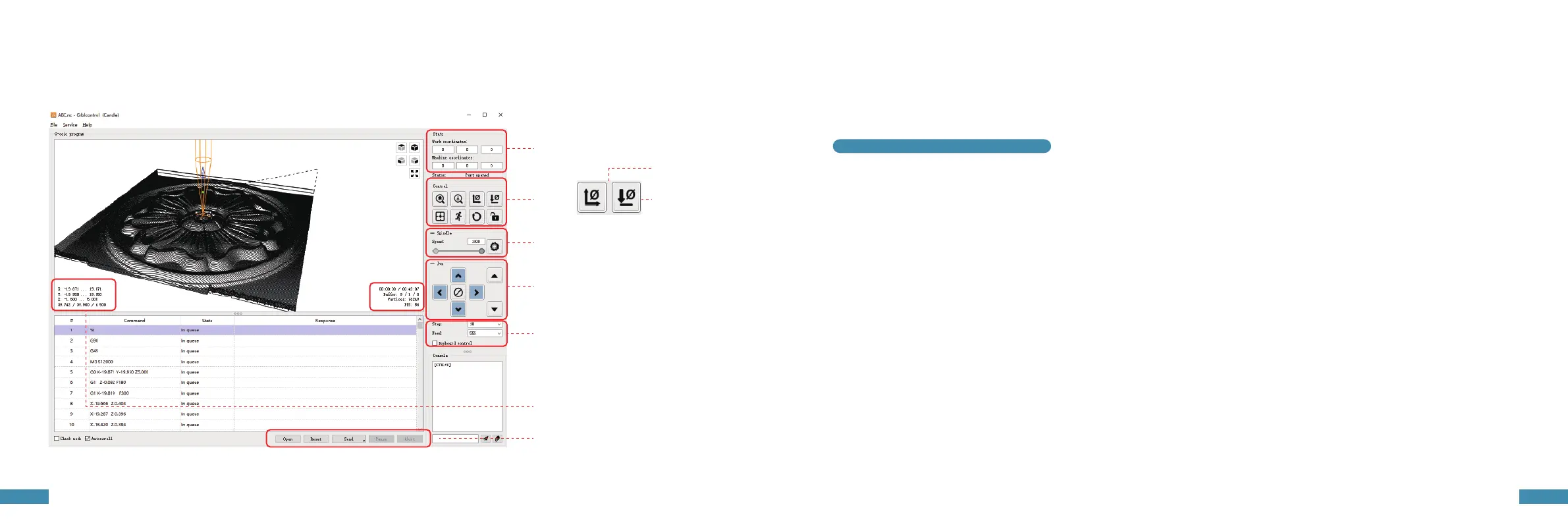

Coordinates movement
Control
XY \re zero
Z \re zero
spindle on/off
X Y Z operating button
Manual control of moving speed
Milling size
START/STOP button
We recommend following the boot sequence below
