Command Light KNIGHT 2 Manual

KNIGHT2
14
Electrical Wiring
Please Note: Detailed internal wiring schematics are located at the back of this user guide.
Run the control wire from the control box holster to the KNIGHT2.

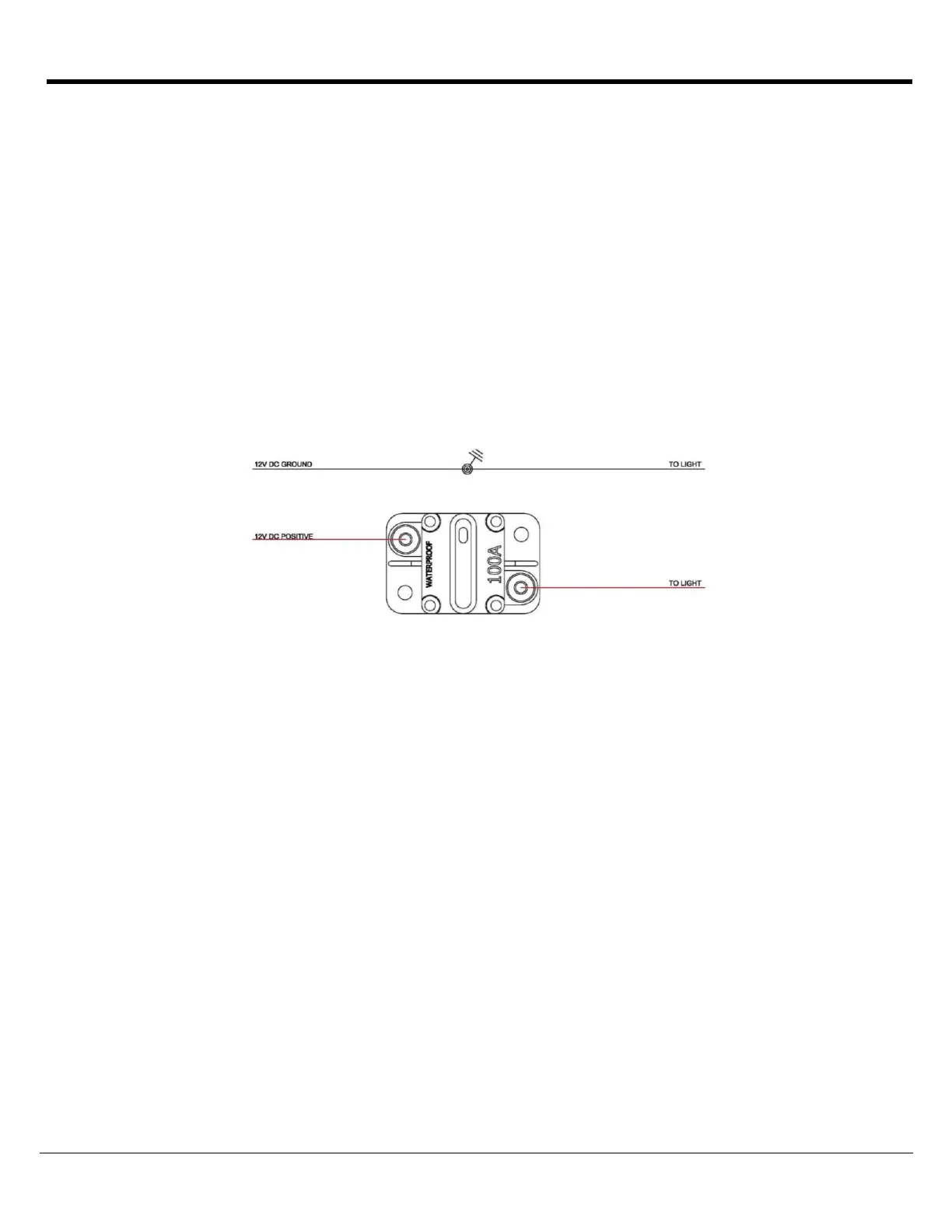

Run the power wire from the breaker box or generator to the KNIGHT2. A 100 Amp
breaker is recommended on DC models.
Make the control connections in the KNIGHT2 relay box.
The Model KL409D series KNIGHT2 comes pre-wired to connect to 12 VDC.
12 VDC
Holster Wiring
Determine if an elevated warning device will be used in conjunction with the light tower. If
a warning device will be used, use the wiring diagram on the next page, otherwise, use the
wiring diagram in the back of the user guide.
After routing the control cable into the holster through the sealing connector, attach
individual wires to the provided connectors and insert the connectors into the proper ports
on the circuit board
