ComMarker OMNI 1 - Page 14

13
5. Marking test
Place the test engraving material on the machine. Click "Red Light (F1)", the area shown by the red light is

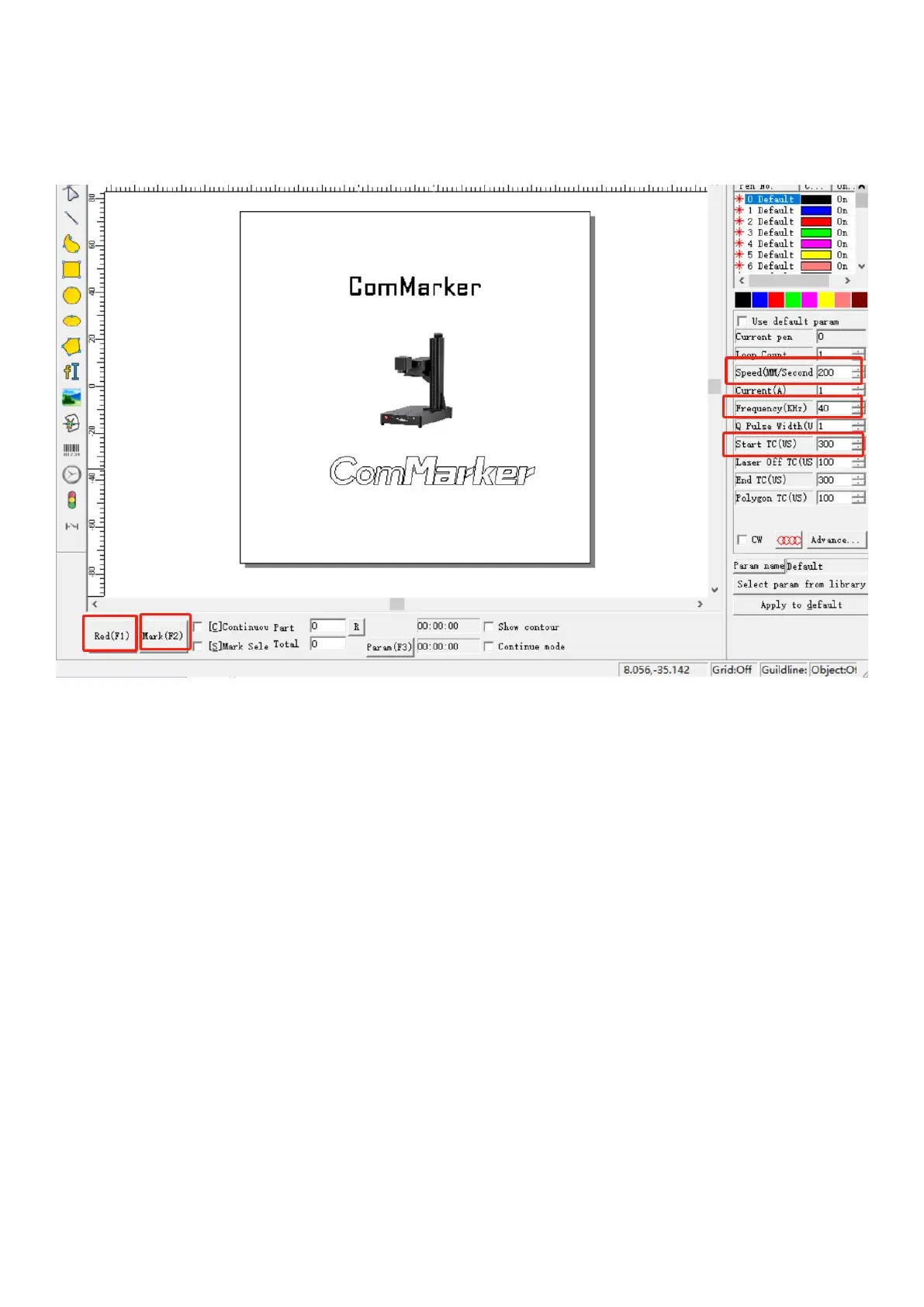

the marking area. Choose the parameters according to the following picture. Click "Mark (F2)" to start
marking.
Note: “Speed”, “Frequency” and “Q Pulse Width” are key parameters for marking result.
