2. Parts Che
c
klist and Fun
c
tions

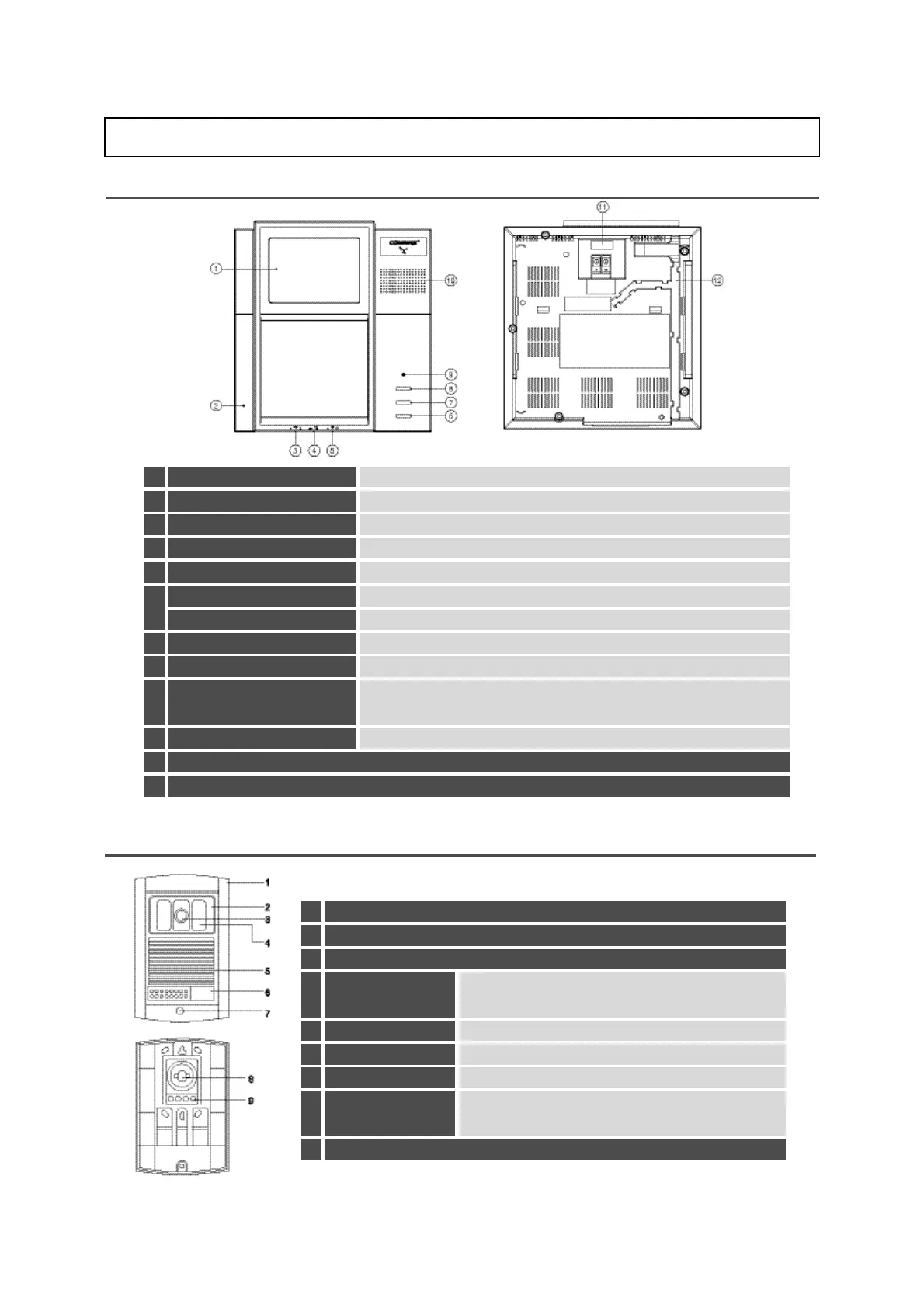

1 Monitor Screen 4” Flat B/W C RT
2 Microphone Sends voice to the camera.
3 Bell volume control C ontrols the volume of the ringtone.
4 Power switch C ontrols the power to the unit.
5 Brightness control C ontrols the brightness of the screen.
6 APV-4RH(G uardroom) Allows communication with the guardroom.
DPV-4RH(O pen) O pens the front gate if so equipped.
7 Priority C all Allows only the household’s voice to be heard
8 Monitor/Talk Displays the screen and initiates communication
9 LED light Power on: Yellow, Signal from camera or guardroom : Red
During a conversation : Red
10 Speaker Voice from the camera or guardroom is delivered
11 Individual(DPV models), guardroom(APV models) connection socket
12 Power cord insertion trenches
ሪ
Monitor(DPV-4RH)
ሪ
Camera(DRC-403N)
1 Front Panel
2 C amera protection window
3 C C D camera lens
4 Infrared LED : Allows for good visibility even when the lighting
conditions are less than adequate
5 Speaker Sound from the monitor is delivered
6 Page button pages the monitor to initiate communication
7 Screw hole cover
8
C amera Pivoting Lever
Allows the camera lens to pivot about for the
optimum angle
9 Monitor connection socket
