Commax CDV-43K User Manual

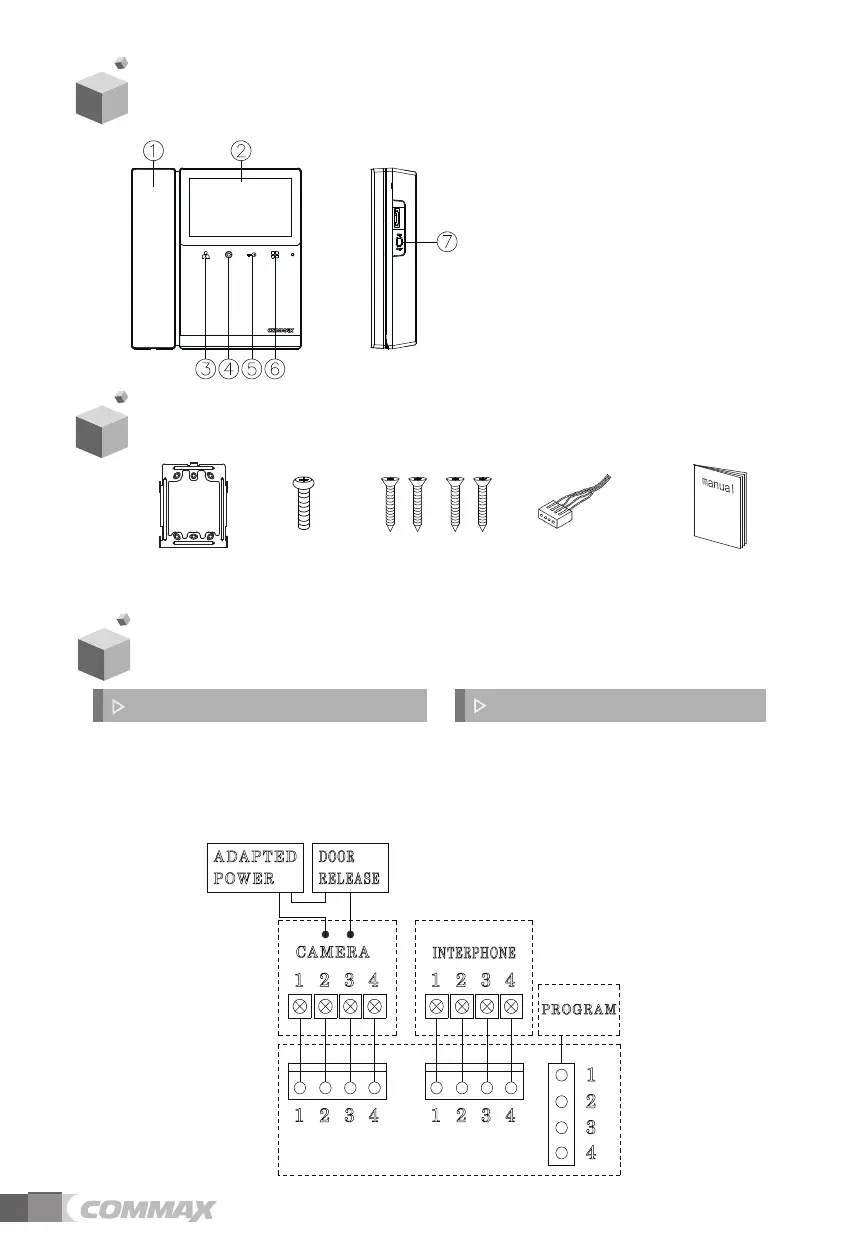

3. Parts Names
①
HANDSET
⑤
DOOR OPEN BUTTON
②
TFT-LCD
⑥
MENU BUTTON
③
MONITORING BUTTON
④
INTERPHONE BUTTON
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+12V)
4. White: Video
▷
Polarity of the camera connector
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+14V)
4. White: Call signal
▷
Polarity of interphone connector
5. Wiring and Connection Instructions
⑦
POWER SWITCH
User Manual (1EA)
Connector (1EA)
Wall bracket mounting
screw (4EA)
Monitor fixing
screw (1EA)
Wall bracket
for monitor (1EA)
4
4. Package Contents
4
