● Priority talk -
PTT ( ) When there is impeding noise that disturbs
conversation from the door camera, pressing and holding the “PTT” button will deliver
only the voice of the speaker from the CDV-70A,70AM to the door camera unit to help
clarify speech.
3-1. Recording visitors’ image
Press and hold the “monitoring” button (REC) for 1 second under “talk” or “monitor”
mode to save a cut of image with electric sound.
3-2 . Review recorded images and its setup
Press and hold the “PTT” button for 2 seconds under stand-by mode, the menu is shown
as follows.
NOTE : Following function of “Recording visitors’ image & setup” is available for
CDV- 70AM only. For CDV-70A, it is not available one.

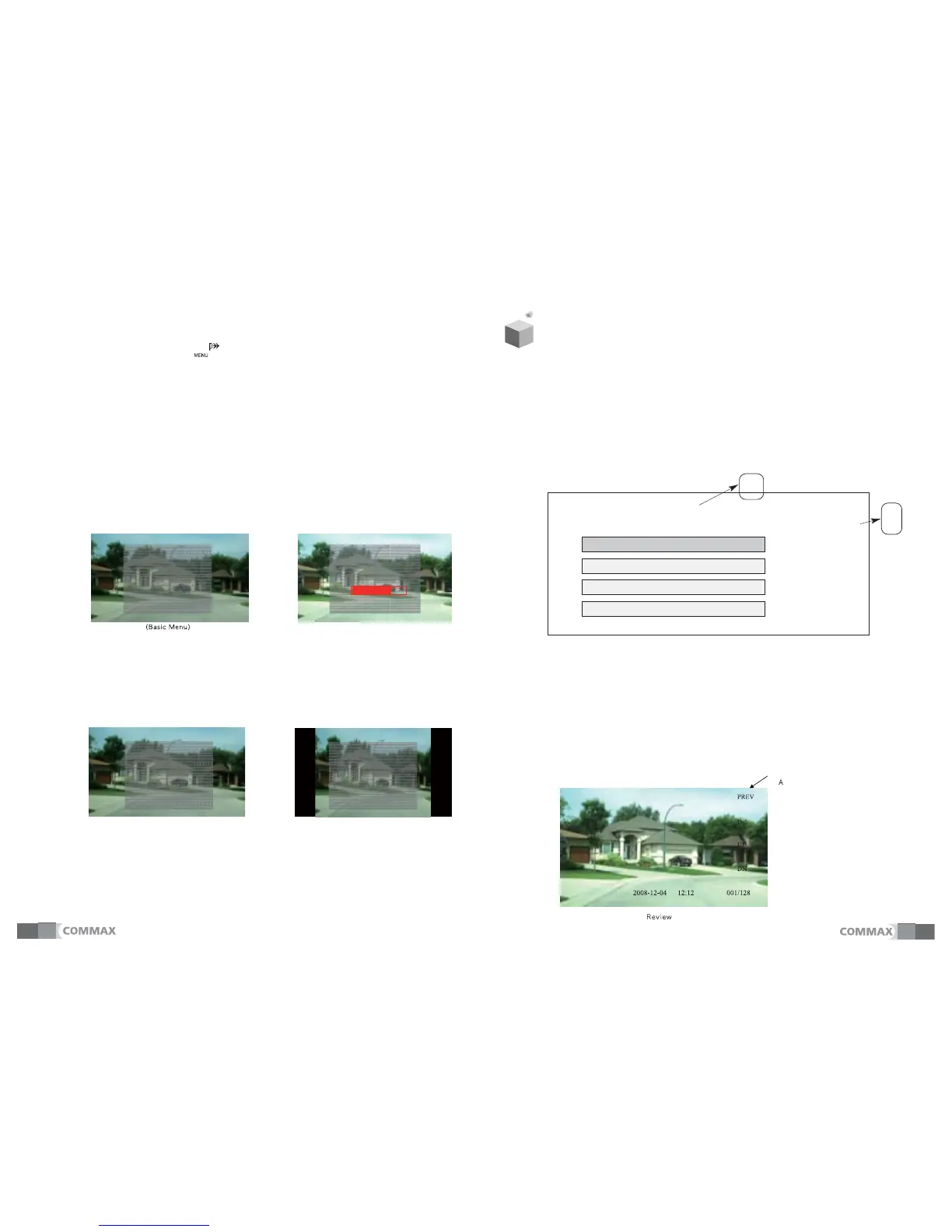

This above picture is main menu, it shall be able to set up each subject.
Description of the above pictures.
A parts : Operation button
B Part : Sub Menu
Note : EXIT – Escape UP/DN – Up & down SEL – Select
3-2-1 Review recorded images and its setting.
Press “review” button to see recorded images .
Operation button is same as right side as following picture.
Main menu
Menu
Exit
SEL
UP
DN
A
B
Review
Delete All Images
Auto Record Setting
Time Setting
"&#$ "#(#$%!
To adjust brightness or color resolution, use the buttons on the right side.
Press “MENU” button to enter “control menu ” in taking with a door camera unit or
monitoring status and then push the “SELECT” button.
Scroll the proper menu you want to change by using “UP/DOWN” button.
And then push “select” button to enter into “changing mode”.
Press “ UP/DOWN” button to change into proper level
Press “SELECT” button to save the new one and it return “basic menu”
automatically. Adjust each menu as per same way.
Press the “UP/DOWN” button to change the ratio of monitor image size.
"menu" button shall be pressed to return standby mode from "basic menu" after
setting proper level .
Note : “MENU” Button – Enter or Close adjustment mode
“SELECT” button – Select sub - menu or move previous menu
“UP/DOWN” button – Scroll the menu or change the value
● Adjustment of image resolution
● To adjust the ratio of monitor image size, select the "Disp. Ratio"
menu and press "SELECT" button.
+
+
7
7
6
6
<
<
:
:
7
7
4
4
5
5
-
-
6
6
=
=
