Commax CDV-70A User Guide

11
10
 ! $#

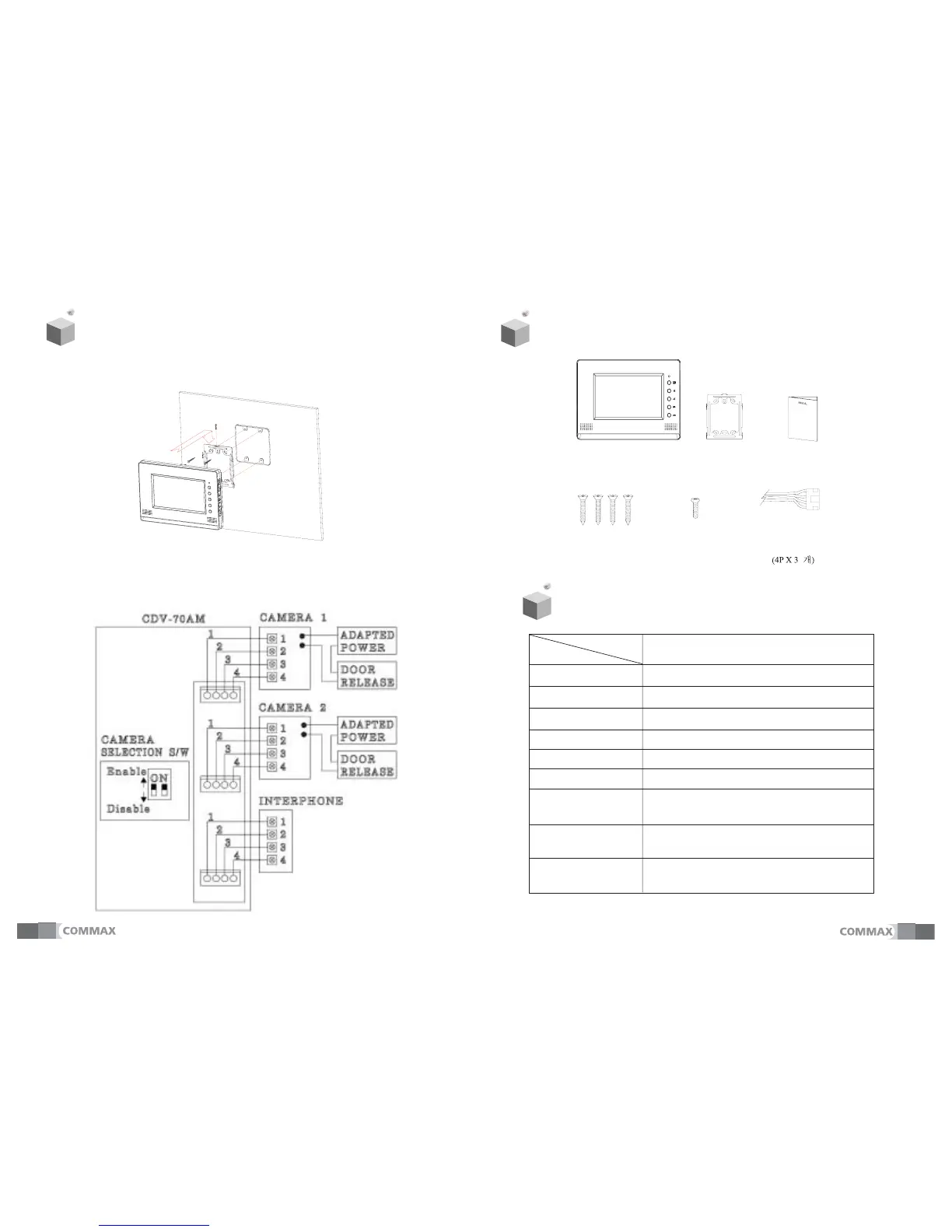

1) Installation diagram
- Terminal wiring in rear
2) Wiring diagram
5IV]IT
?ITTJZIKSM\
5WVQ\WZ
5@
+WVVMK\WZ
5W]V\QVO;KZM_
<@
?ITTJZIKSM\
.Q`QVO;KZM_
5WVQ\WZ
#$$ '"$ 
Model
Spec.
!$ 
Wiring CAMERA : 4 wires, INTERPHONE : 4 wires
CDV-70A/70AM
Power source AC 100-240V 50/60Hz (FREE VOLTAGE)
Power consumption
MAX: 15W, Stand-by:4W
Communication way
HANDS FREE type (Voice Switch)
Image recording (CDV-70AM)
MAX 128 Cuts
Display 7” COLOR TFT-LCD
Call sound
COMMAX chime : 2 times
Interphone : Electric chime
Stand-by :30 seconds,
On the line : 60 seconds
Video duration time
Distance
Entrance: 50m (0.65)
Interphone: 20m (0.65)

Commax CDV-70A Specifications

General

Brand	Commax
Model	CDV-70A
Category	Intercom System
Language	English
