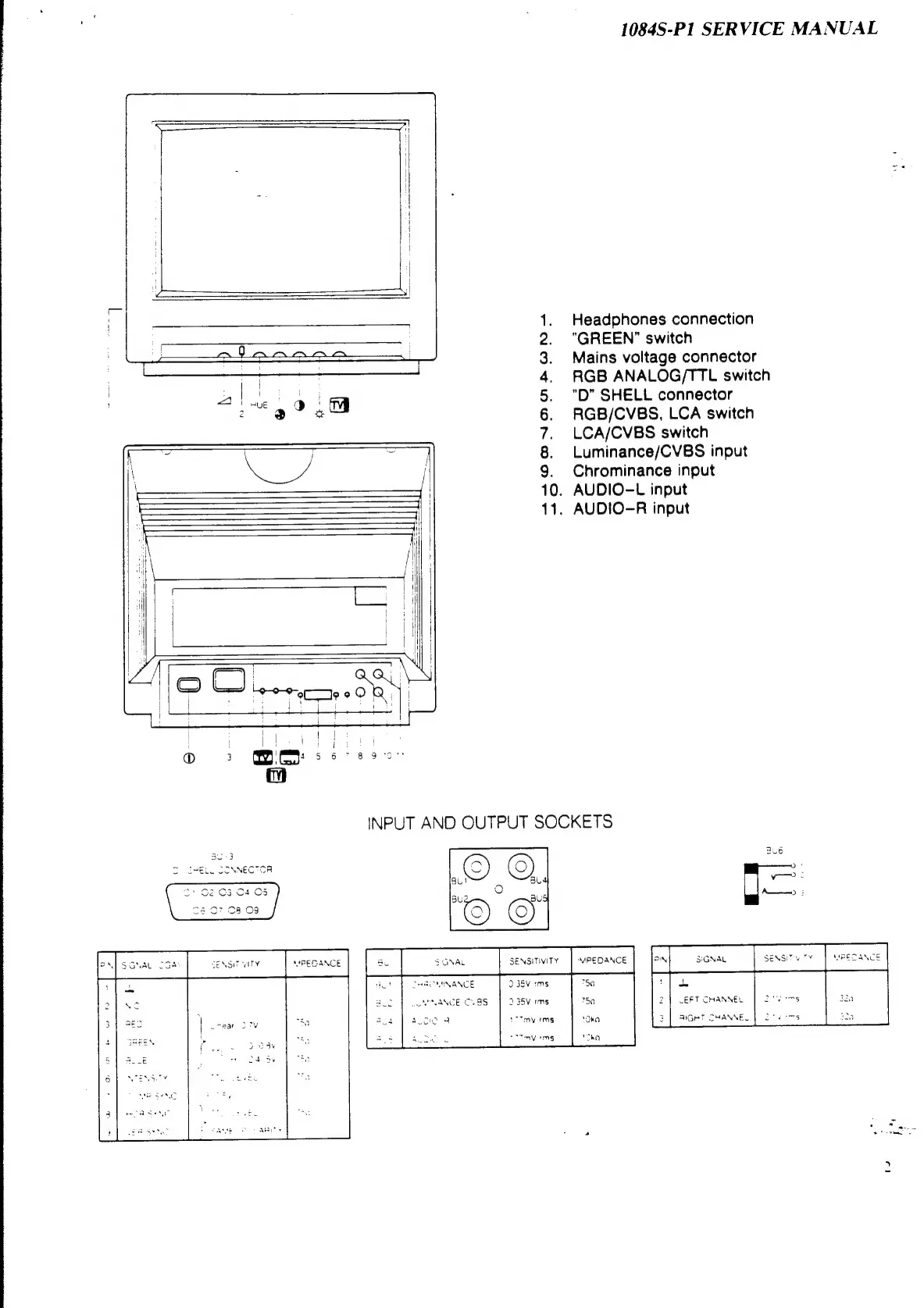

Commodore 1084S-P1 - Input and Output Sockets

10848S-P1 SERVICE MANUAL
Headphones connection
"GREEN” switch
Mains voltage connector
RGB ANALOG/TTL switch
"D” SHELL connector
RGB/CVBS, LCA switch
LCA/CVBS switch
Luminance/CVBS input
Chrominance input
AUDIO-L input
AUDIO-R input
ee O00 OD Oe ON +O
WEFT CHANNEL
FIGHT CHANNEL
