Commodore 1084S-P1 - Connection Part

CABINET
100 ee 150
151
102
103
104 OPERATING PART
CONNECTION PART
Sm gerpeeolt)
ee:
108
109
CRT PANEL

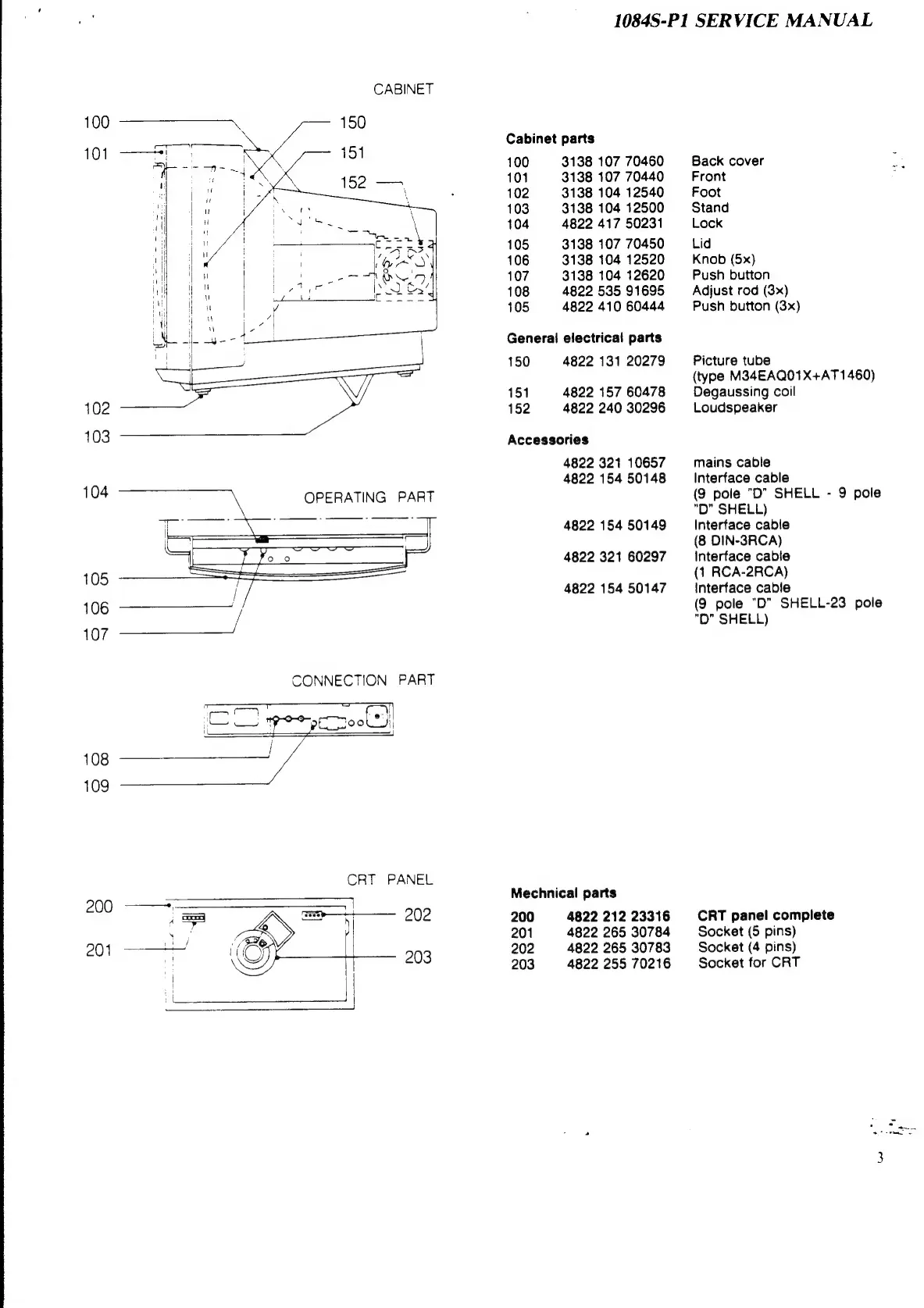

1084S-P1 SERVICE MANUAL
Cabinet parts
100 3138 107 70460
101 3138 107 70440
102 3138 104 12540
103 3138 104 12500
104 4822 417 50231
105 3138 107 70450
106 3138 104 12520
107 3138 104 12620
108 4822 535 91695
105 4822 410 60444
General electrical parts
150 4822 131 20279
151 4822 157 60478
152 4822 240 30296
Accessories
4822 321 10657
4822 154 50148
4822 154 50149
4822 321 60297
4822 154 50147
Mechnical parts
200 4822 212 23316
201 4822 265 30784
202 4822 265 30783
203 4822 255 70216
Back cover
Front
Foot
Stand
Lock
Lid
Knob (5x)
Push button
Adjust rod (3x)
Push button (3x)
Picture tube
(type M34EAQ01X+AT1 460)
Degaussing coil
Loudspeaker
mains cable
Interface cable
(9 pole "D" SHELL - 9 pole
"D” SHELL)
Interface cable
(8 DIN-3RCA)
Interface cable
(1 RCA-2RCA)
Interface cable
(9 pole "D” SHELL-23 pole
"D” SHELL)
CRT panel complete
Socket (5 pins)
Socket (4 pins)
Socket for CRT
