Commodore 1084S-P1 - Technical Data

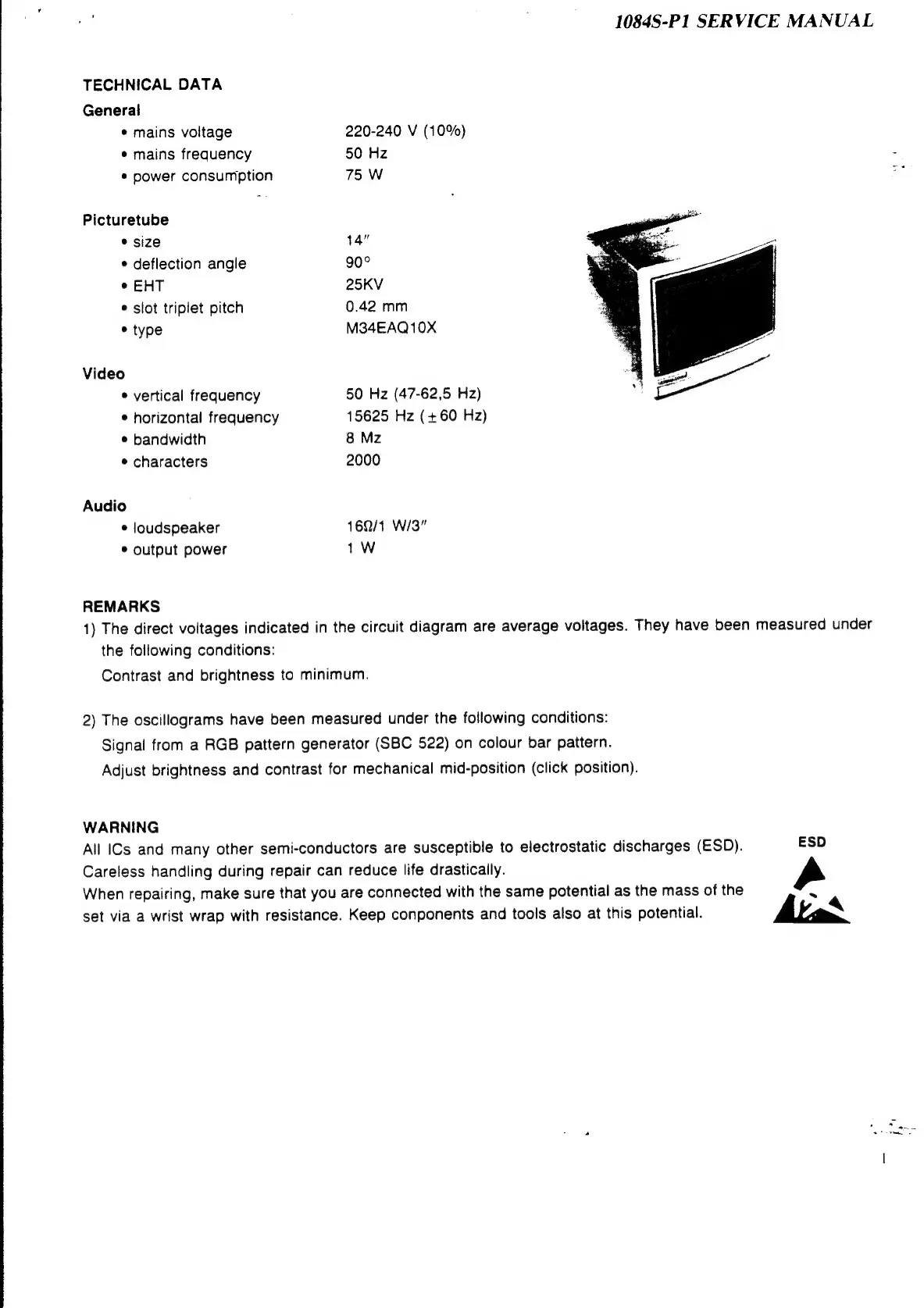

TECHNICAL DATA
General
* mains voltage
¢ mains frequency
* power consumption
Picturetube
© size
¢ deflection angle
° EHT
¢ slot triplet pitch
* type
Video
* vertical frequency
* horizontal frequency
® bandwidth
* characters
Audio
* joudspeaker
¢ output power
REMARKS
220-240 V (10%)
50 Hz
75 W
14”
90°
25KV
0.42 mm
M34EAQ10X
50 Hz (47-62,5 Hz)
15625 Hz (+60 Hz)
8 Mz
2000
160/1 W/3"
1W
1084S-P1 SERVICE MANUAL
1)
The
direct
voltages
indicated
in
the
circuit
diagram
are
average
voltages.
They
have
been
measured
under
the following conditions:
Contrast and brightness to minimum.
2)
The
oscillograms
have
been
measured
under
the
following
conditions:
Signal
from
a
RGB
pattern
generator
(SBC
522)
on
colour
bar
pattern.
Adjust
brightness
and
contrast
for
mechanical
mid-position
(click
position).
WARNING
All
ICs
and
many
other
semi-conductors
are
susceptible
to
electrostatic
discharges
(ESD).
ESD
Careless handling during repair can reduce life drastically.
When
repairing,
make
sure
that
you
are
connected
with
the
same
potential
as
the
mass
of
the
~
set
via
a
wrist
wrap
with
resistance.
Keep
conponents
and
tools
also
at
this
potential.
Ate
