Commodore 1084S - Technical Specifications

=
CD # a a ^j
.c«
O O
O O
O
D
<£i-*™.: *\ ntaVfrura ». -.,..
axon
<uM
fl
:
rowin

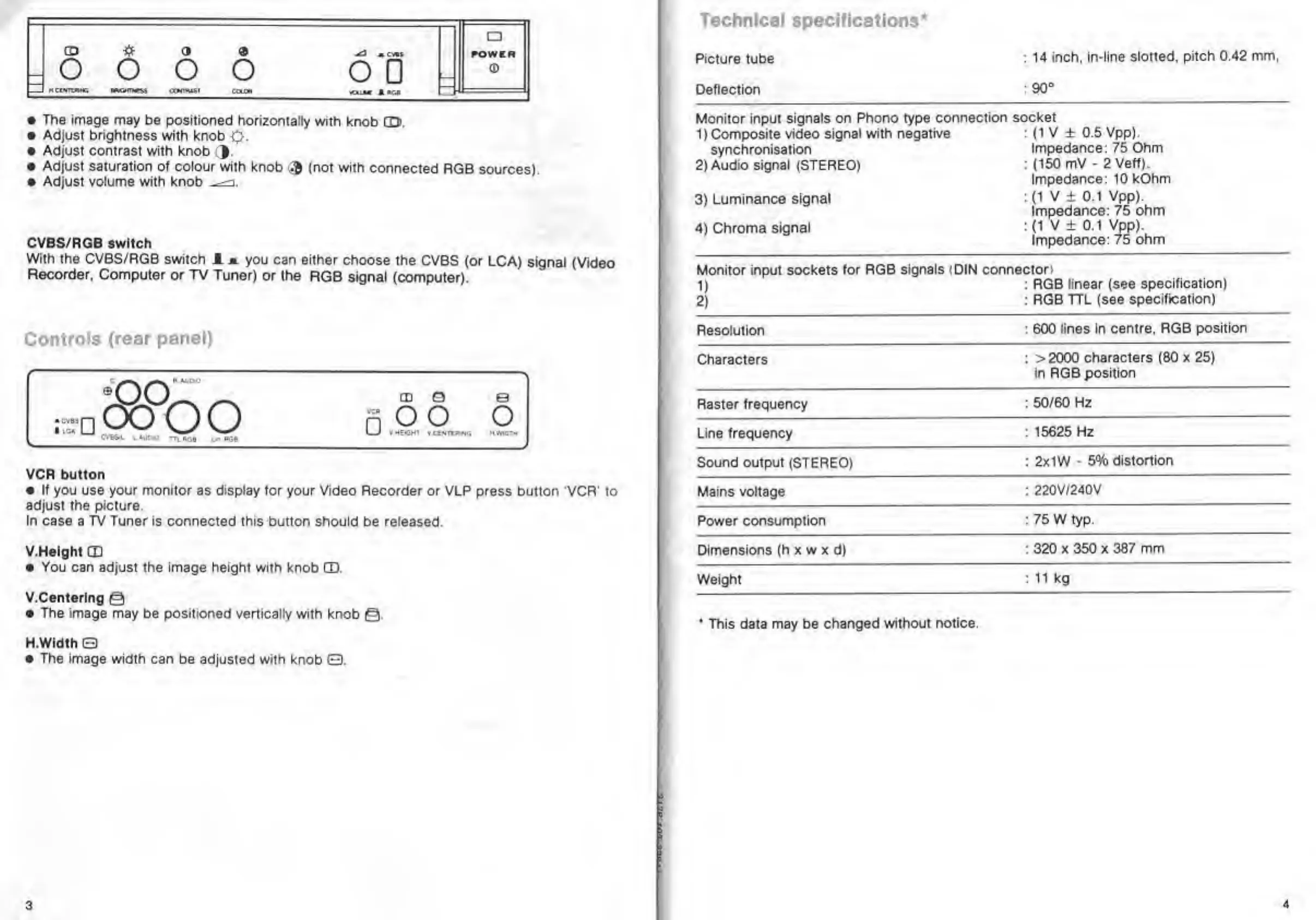

The image may be positioned horizontally
with
knob
CD*.
Adjust brightness with
knob
0.
Adjust contrast with
knob
3.
Adjust saturation
of colour with knob
$
(not
with connected
RGB sources]
Adjust volume with
knob
-^-i
CVBS/RGB switch
With the CVBS/RGB switch
JL
m.
you can either choose
the CVBS (or
LCA) signal
(Video
Recorder,
Computer or TV Tuner)
or the
RGB signal (computer).
Controls (rear
panel)
ffl
o6
u
o
O
C*^&L ^AUPQ
TTLHQfl
M Sft
CD Q e
"OO o
a:
VCR button
• If you use your monitor as display tor your Video
Recorder or VLP press button VCR' to
adjust the picture.
In case a TV Tuner is connected this
button should be released.
V. Height
(X)
• You can
adjust the image height with knob
CD.
V.Centerlng
©
•
The image
may be positioned vertically with knob
Q.
H.WIdth
O
• The image
width can be adjusted with knob
0.
Technical specifications*
Picture tube
Deflection
: 14 inch,
in-line slotted,
pitch 0.42 mm,
:90
(
Monitor input
signals on Phono type
connection
socket
1)
Composite video
signal with negative
synchronisation
2)
Audio signal
(STEREO)
3)
Luminance signal
4)
Chroma signal
(1 V ± 0.5 Vpp).
Impedance: 75 Ohm
(150mV-2VefT).
Impedance: 10kOhm
(1
V
+
0.1 Vpp).
Impedance: 75 ohm
(1
V ±
0.1
Vpp).
Impedance: 75 ohm
Monitor
input
sockets
for RGB signals (DIN connector*
1)
: RGB
linear (see specification)
2)
: RGB TTL
(see specification)
Resolution
:
600 lines in centre. RGB
position
Characters
> 2000 characters (80 x 25)
in RGB position
Raster frequency
: 50/60 Hz
Line frequency
: 15625 Hz
Sound output (STEREO)
; 2x1W
-
5% distortion
Mains voltage
; 220V/240V
Power consumption
: 75 W typ.
Dimensions (h x w x d)
: 320 x 350 x
387 mm
Weight
: 11 kg
'
This data may be
changed without notice.
