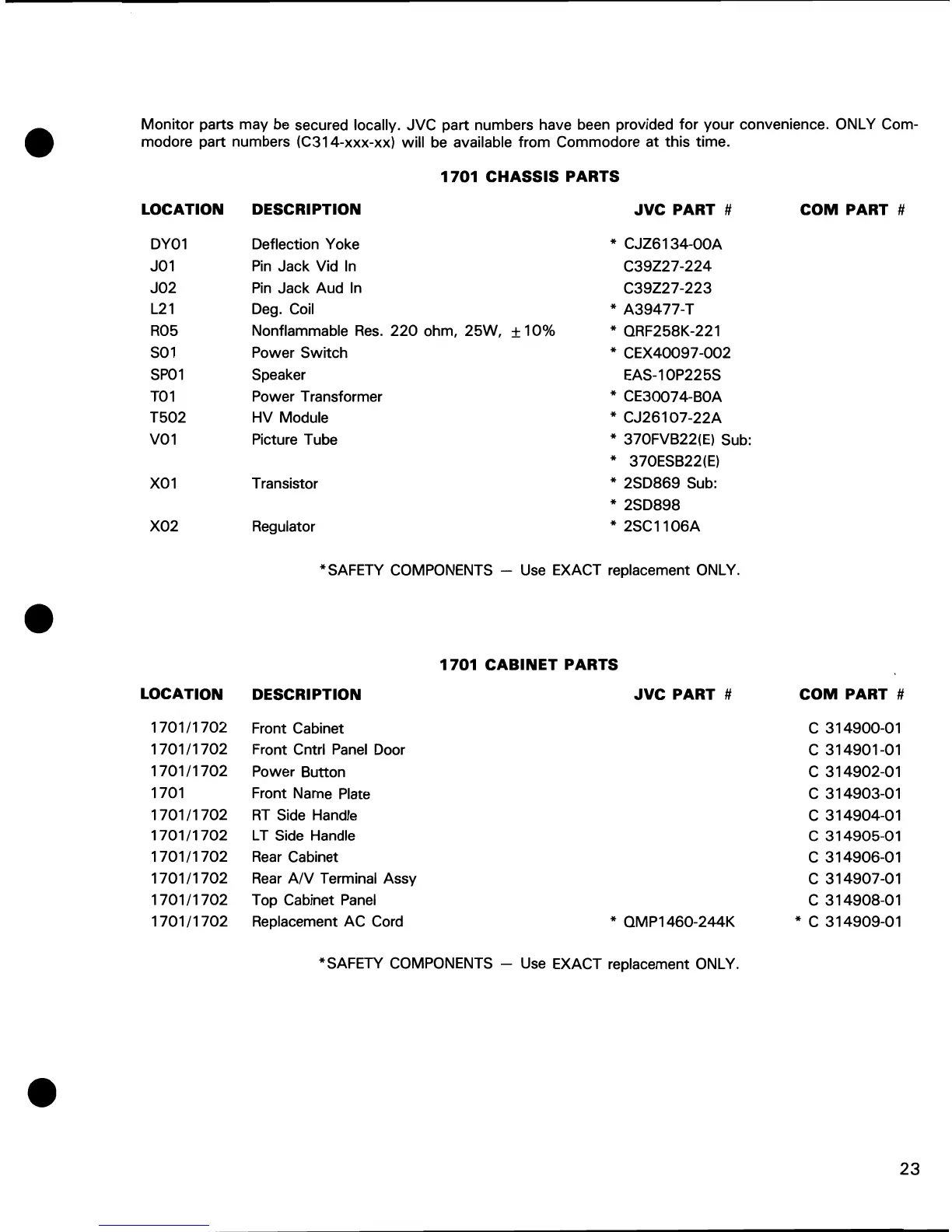

Commodore 1701 - Parts Lists; 1701 CHASSIS PARTS; 1701 CABINET PARTS

Monitor parts may be secured locally. JVC part numbers have been provided for your convenience. ONLY Com-
modore part numbers (C314-xxx-xx) will
be available from Commodore at this time.
1701 CHASSIS PARTS
LOCATION DESCRIPTION
JVC PART # COM PART #
OY01
Deflection Yoke
* CJZ6134-00A
J01
Pin Jack Vid In
C39Z27-224
J02 Pin Jack Aud In
C39Z27-223
L21 Oeg. Coil * A39477-T
R05 Nonflammable
Res. 220 ohm, 25W,
±10%
* QRF258K-221
S01 Power Switch * CEX40097 -002
SP01 Speaker EAS-10P225S
T01 Power Transformer * CE30074-BOA
T502
HV Module * CJ26107-22A
V01
Picture Tube * 370FVB22(E) Sub:
* 370ESB22(E)
X01 Transistor * 2S0869 Sub:
* 2S0898
X02 Regulator
* 2SC1106A
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
1701 CABINET PARTS
LOCATION
DESCRIPTION
JVC PART # COM PART #
1701/1702 Front Cabinet
C 314900-01
1701/1702 Front Cntrl
Panel Door
C 314901-01
1701/1702
Power Button C 314902-01
1701
Front Name
Plate C 314903-01
1701/1702
RT Side Handle C 314904-01
1701/1702
L T
Side Handle C 314905-01
1701/1702
Rear Cabinet
C 314906-01
1701/1702
Rear AN Terminal Assy C 314907-01
1701/1702 Top Cabinet
Panel C 314908-01
1701/1702 Replacement
AC Cord * QMP1460-244K * C 314909-01
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
