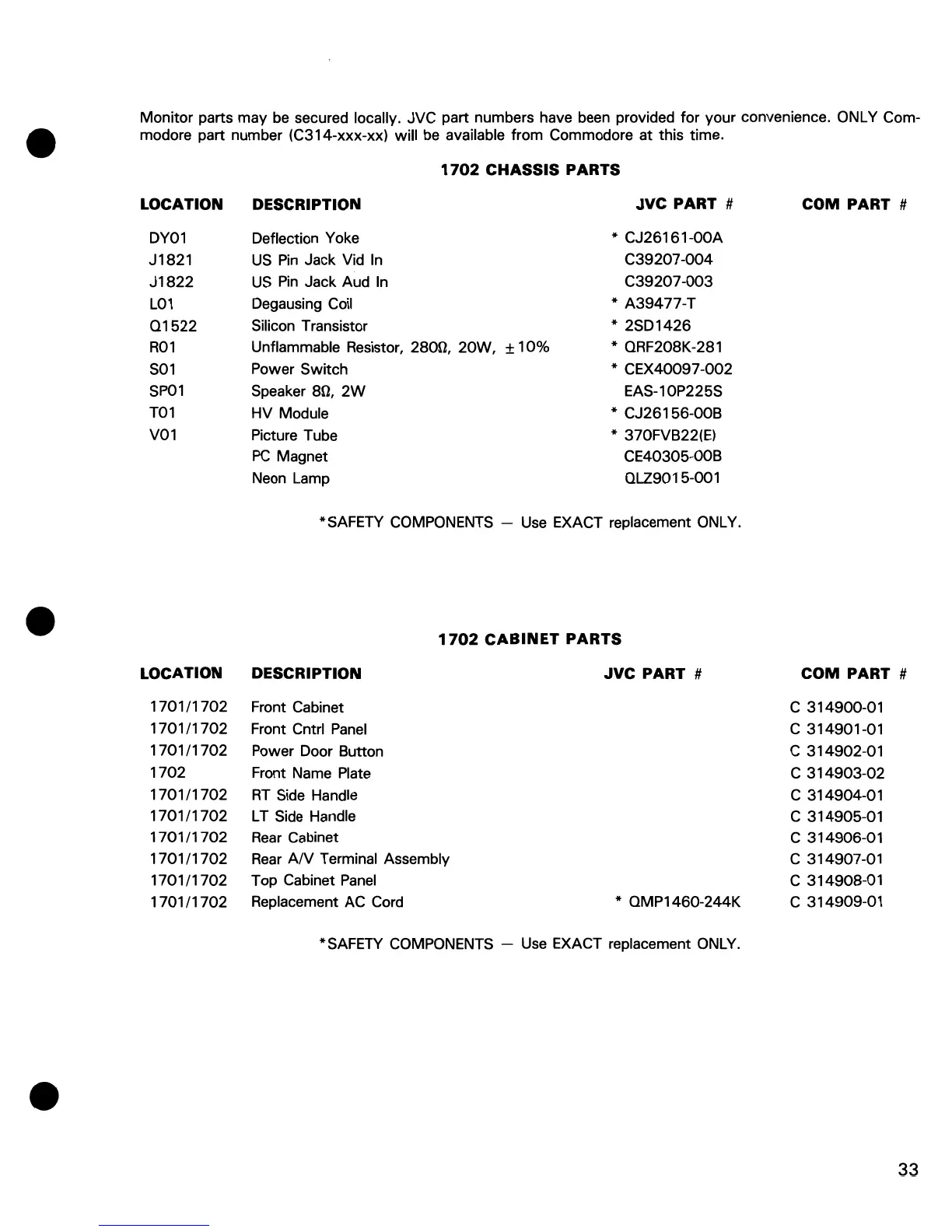

Commodore 1701 - 1702 CHASSIS PARTS; 1702 CABINET PARTS

Monitor parts may be secured locally. JVC part numbers have been provided for your convenience. ONLY Com-
modore part number (C314-xxx-xx) will
be available from Commodore at this time.
1702 CHASSIS PARTS
LOCATION DESCRIPTION
JVC PART #
COM PART #
DY01 Deflection Yoke * CJ26161-00A
J1821
US Pin Jack Vid In
C39207-004
J1822 US Pin Jack Aud In
C39207-003
L01 Degausing Coil
* A39477-T
01522 Silicon Transistor * 2SD1426
R01
Un"flammable Resistor, 280fl, 20W,
±10%
* ORF208K-281
S01
Power Switch * CEX40097-002
SP01 Speaker 80, 2W EAS-10P225S
T01
HV Module * CJ26156-ooB
V01 Picture Tube
* 370FVB22(E)
PC Magnet CE40305-ooB
Neon Lamp
OLZ9015-oo1
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
1702 CABINET PARTS
LOCATION
DESCRIPTION
JVC PART #
COM PART #
1701/1702 Front Cabinet
C 314900-01
1701/1702 Front Cntrl
Panel
C 314901-01
1701/1702
Power Door Button C 314902-01
1702 Front Name Plate
C 314903-02
1701/1702
RT Side Handle C 314904-01
1701/1702
L T
Side Handle C 314905-01
1701/1702
Rear Cabinet C 314906-01
1701/1702
Rear AN Terminal Assembly
C 314907-01
1701/1702 Top Cabinet
Panel C 314908-01
1701/1702 Replacement AC Cord
* QMP1460-244K
C 314909-01
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
33
