Commodore 1701 - 1701 CONTROL & FUSE PCB Parts

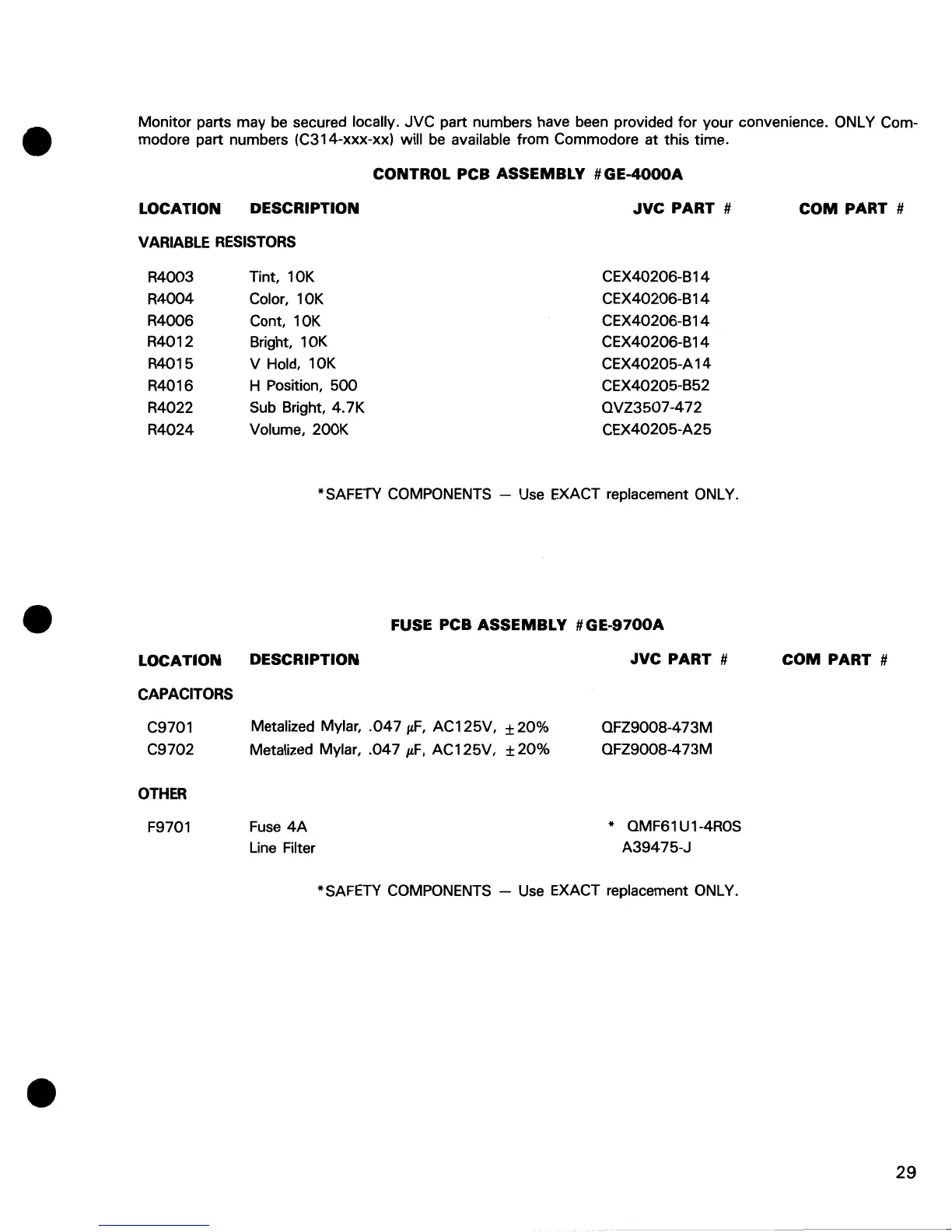

Monitor parts may be secured locally. JVC part numbers have been provided for your convenience. ONLY Com-
modore part numbers (C314-xxx-xx) will
be available from Commodore at this time.
CONTROL PCB ASSEMBLY
#GE-4000A
LOCATION DESCRIPTION JVC PART #
VARIABLE RESISTORS
R4003
Tint, 10K CEX40206-B14
R4004 Color, 10K CEX40206-B 14
R4006 Cont, 10K
CEX40206-B
14
R4012 Bright, 10K CEX40206-B 14
R4015 V Hold, 10K CEX40205-A 14
R4016
H Position, 500 CEX40205-B52
R4022
Sub Bright, 4.7K OVZ3507-472
R4024 Volume, 200K
CEX40205-A25
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
FUSE PCB ASSEMBLY #GE-9700A
LOCATION DESCRIPTION
JVC PART #
CAPACITORS
C9701
C9702
OTHER
F9701
Metalized Mylar,
.047 p,F, AC125V, ±20%
Metalized Mylar, .047 p,F, AC125V, ±20%
Fuse 4A
Line Filter
OFZ9008-473M
OFZ9008-473M
*
OMF61 U1-4ROS
A39475-J
*SAFETY
COMPONENTS - Use EXACT replacement ONLY.
COM PART #
COM PART #
