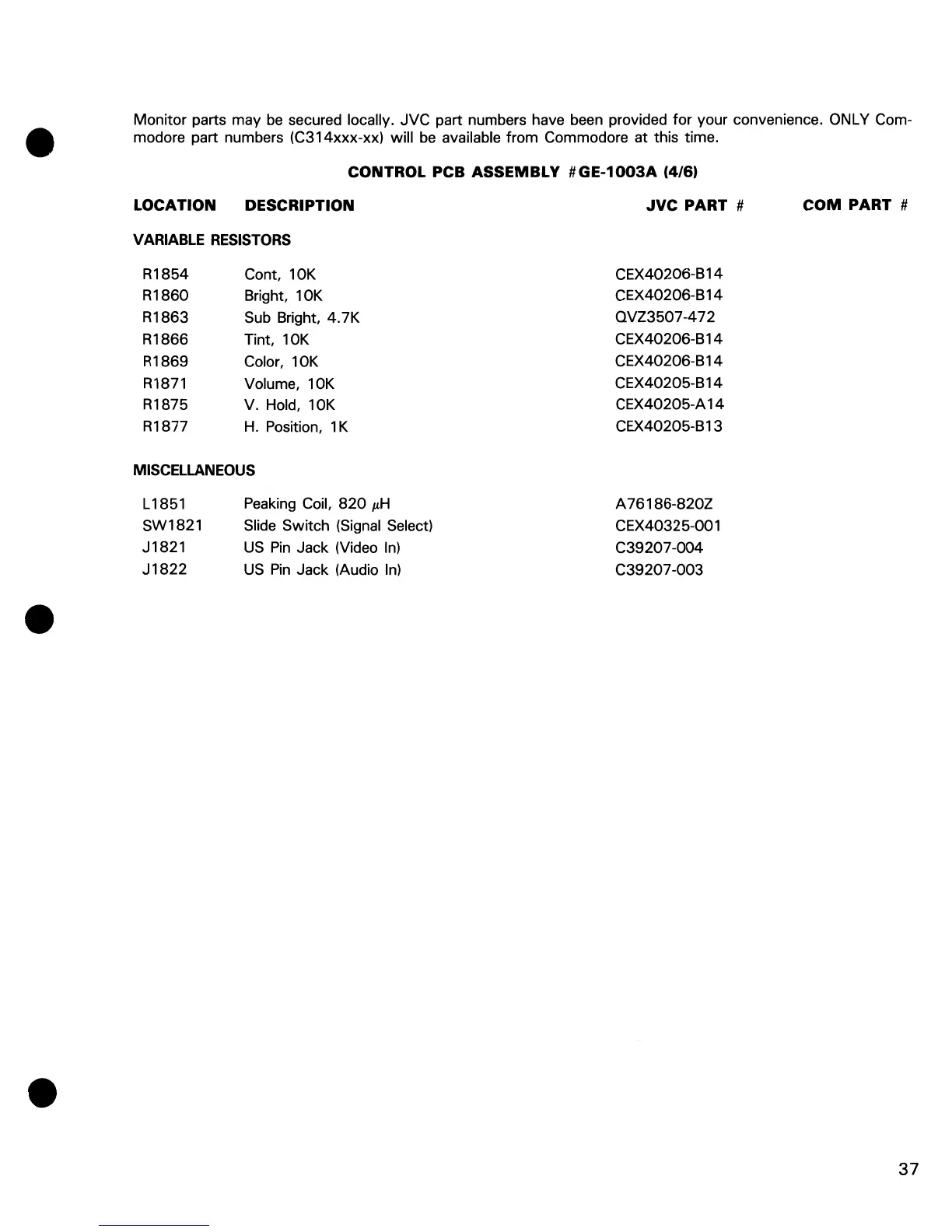

Monitor parts may be secured locally. JVC part numbers have been provided for your convenience. ONLY Com-
modore part numbers (C314xxx-xx) will
be available from Commodore at this time.
CONTROL PCB ASSEMBLY #GE-1003A (4/6'
LOCATION DESCRIPTION
VARIABLE RESISTORS
R1854 Cont, 10K
R1860 Bright, 10K
R1863
Sub Bright, 4.7K
R1866 Tint, 10K
R1869
Color, 10K
R1871 Volume, 10K
R1875
V. Hold, 10K
R1877
H. Position, 1 K
MISCELLANEOUS
L1851
SW1821
J1821
J1822
Peaking Coil, 820 pH
Slide Switch (Signal Select)
US Pin Jack (Video In)
US Pin Jack (Audio In)
JVC PART #
CEX40206-B 14
CEX40206-B 14
aVZ3507-472
CEX40206-B14
CEX40206-B
14
CEX40205-B 14
CEX40205-A 14
CEX40205-B13
A 76186-820Z
CEX40325-001
C39207-004
C39207-003
