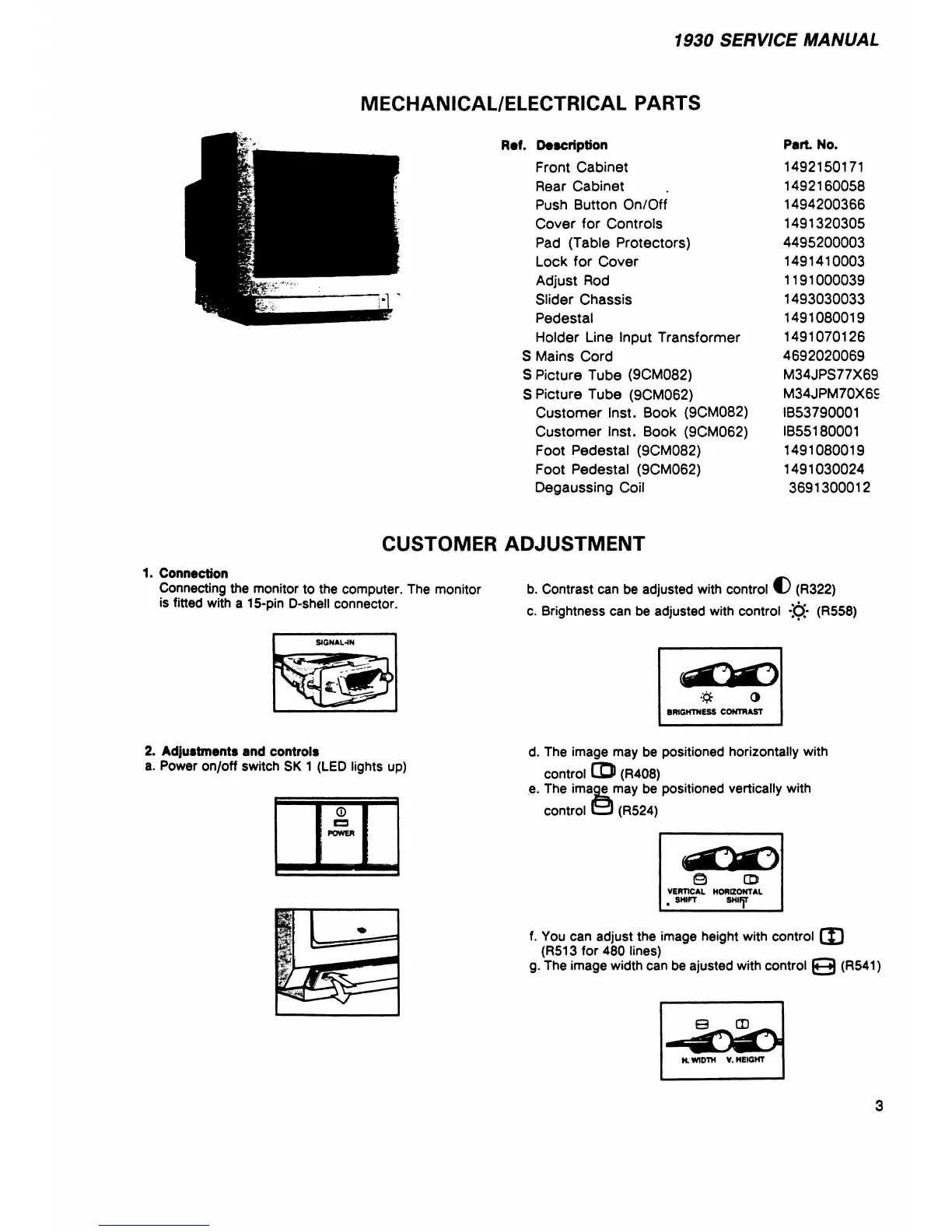

1930 SERVICE MANUAL
MECHANICAL/ELECTRICAL PARTS
Ref. Description
Pert No.
Front Cabinet
1492150171
Rear Cabinet 1492160058
Push Button On/Off 1494200366
Cover for Controls 1491320305
Pad (Table Protectors)
4495200003
Lock for Cover 1491410003
Adjust Rod
1191000039
Slider Chassis
1493030033
Pedestal
1491080019
Holder Line Input Transform er
1491070126
S Mains Cord
4692020069
S Picture Tube (9CM082)
M34JPS77X69
S Picture Tube (9C M 062)
M34JPM70X69
Custom er Inst. Book (9CM 082)
IB53790001
Custom er Inst. Book (9CM 062)
IB55180001
Foot Pedestal (9CM082)
1491080019
Foot Pedestal (9CM062)
1491030024
Degaussing Coil
3691300012
CUSTOMER ADJUSTMENT
1. Connection
Connecting the monitor to the computer. The monitor
is fitted with a 15-pin D-shell connector.
SIGNAL4N
2. Adjustments and controls
a. Power on/off switch SK 1 (LED lights up)
0
POWER
b. Contrast can be adjusted with control € (R322)
c. Brightness can be adjusted with control -j6/ (R558)
O
BRIGHTNESS CONTRAST
d. The image may be positioned horizontally with
control CD (R408)
e. The image may be positioned vertically with
control ( 3 (R524)
© CD
VERTICAL HORIZONTAL
, SHIFT SHIRT
f. You can adjust the image height with control CD
(R513 for 480 lines)
g. The image width can be ajusted with control
e
(R541)
b m
H. WIDTH V. HEIGHT
3
