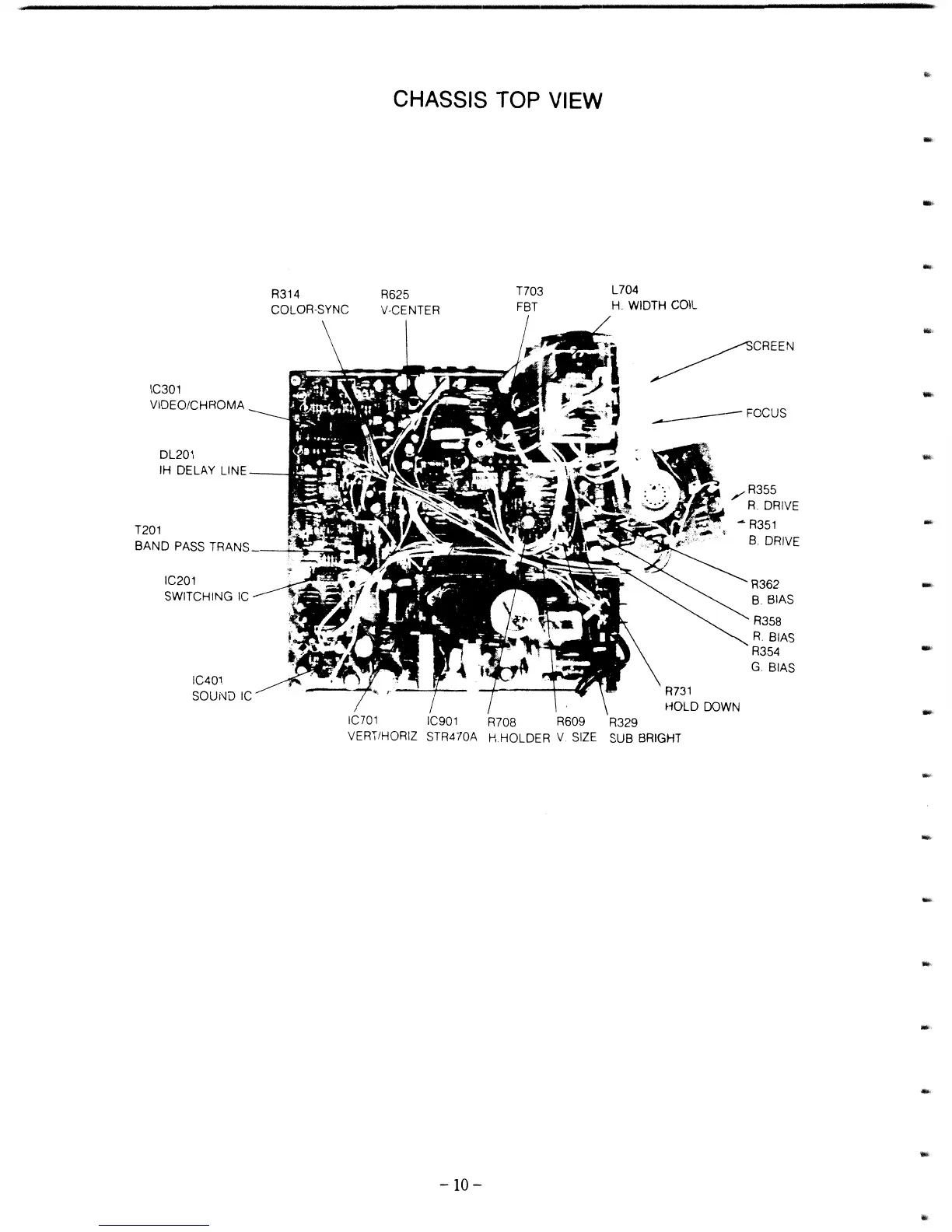

Commodore CM-141 - Chassis Top View

-----------------------------,---------------------------
IC301
VIDEO/CHROMA
DL201
R314
COLOR-SYNC
IH DELAY LlNE- __
T201
BANDPASSTRANv __ ~~~ __
IC201
SWITCHING
IC
IC401
SOUND
IC
CHASSIS TOP VIEW
R625
V-CENTER
T703
FBT
L704
H. WIDTH COIL
~CREEN
~FOCUS
R731
,R355
R DRIVE
~ R351
B. DRIVE
R362
B. BIAS
R358
R. BIAS
R3S4
G. BIAS
HOLD DOWN
IC701 IC901 R708 R609 R329
VERT/HORIZ STR470A H.HOLDER V
SIZE SUB BRIGHT
-10 -
-
