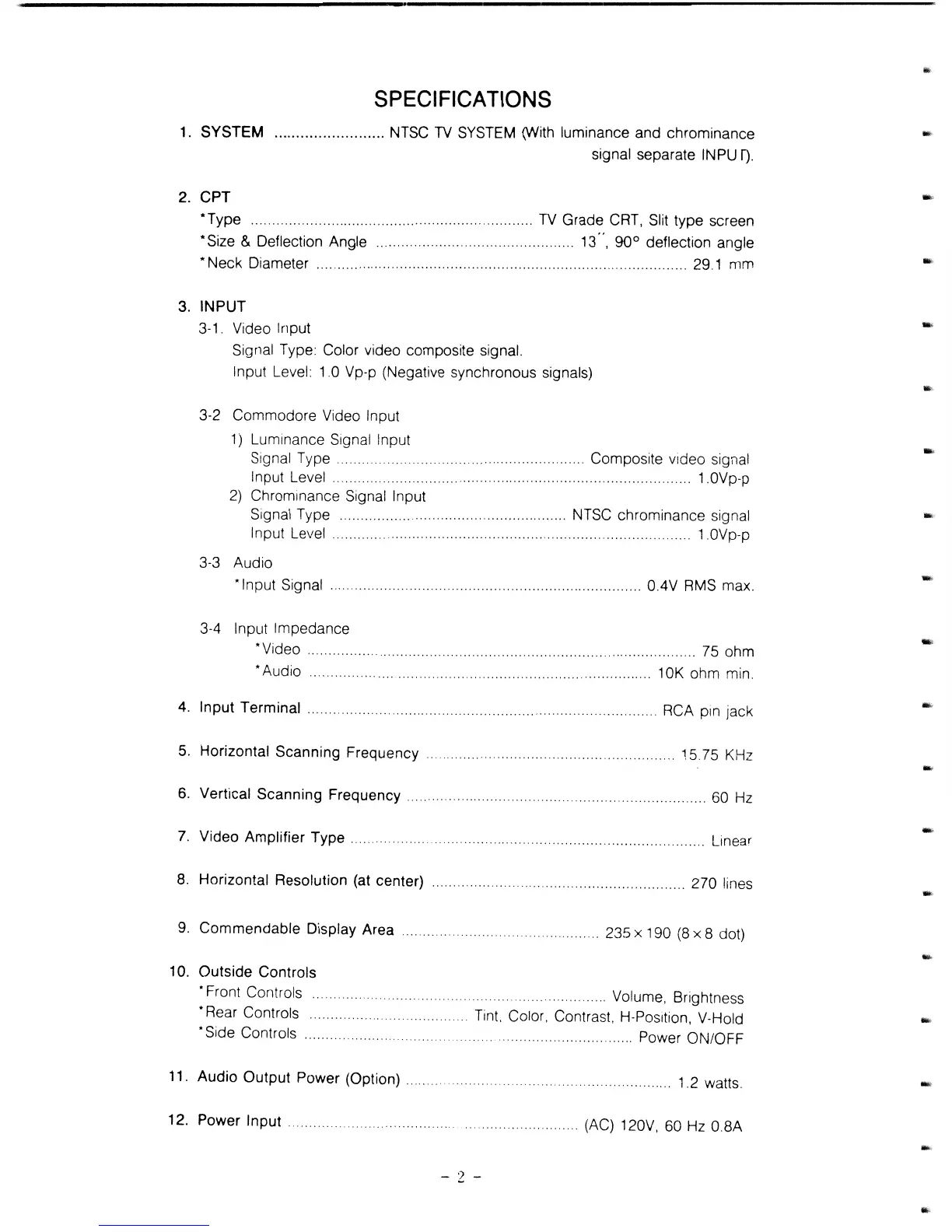

Commodore CM-141 - Specifications

SPECIFICATIONS
1. SYSTEM ......................... NTSC TV SYSTEM (With luminance and chrominance
signal separate INPU
I).
2. CPT
-Type
............. ....... TV Grade CRT, Slit type screen
• Size
& Deflection Angle ............................................... 13", 90° deflection angle
-
Neck Diameter ....................................................................................... 29.1 mm
3. INPUT
3-1. Video Input
Signal Type: Color video composite signal.
Input Level: 1.0 Vp-p (Negative synchronous signals)
3-2 Commodore Video Input
1) Luminance Signal Input
Signal Type ....................................... Composite video signal
Input
Level. ............ ...... ........... . ................................. 1.0Vp-p
2) Chromlnance Signal Input
Signal Type .................................... NTSC chrominance signal
Input
Level... .... . ... ... ... ....... .. ... ........................ 1.0Vp-p
3-3 Audio
-Input Signal ..
............................................ OAV RMS max.
3·4 Input Impedance
-Video
-Audio
4. Input Terminal.
5. Horizontal Scanning Frequency.
..... ....... 75 ohm
... 10K ohm min.
RCA pin
jack
. ........................... 1575 KHz
6. Vertical Scanning Frequency. . ...... .................................................. 60 Hz
7. Video Amplifier Type
8. Horizontal Resolution (at center)
9. Commendable Display Area
10. Outside Controls
• Front Controls
• Rear Controls
-Side Controls
......................... .
11.
Audio Output Power (Option) .
12.
Power Input
... ... ....... linear
.................. ............................... 270 lines
. 235
x 190 (S x S dot)
............................. Volume, Brightness
........ Tint. Color, Contrast. H-Posltlon, V-Hold
..... . ........ Power ON/OFF
'
.. 1.2 watts.
........................ (AC) 120V, 60 Hz O.SA
