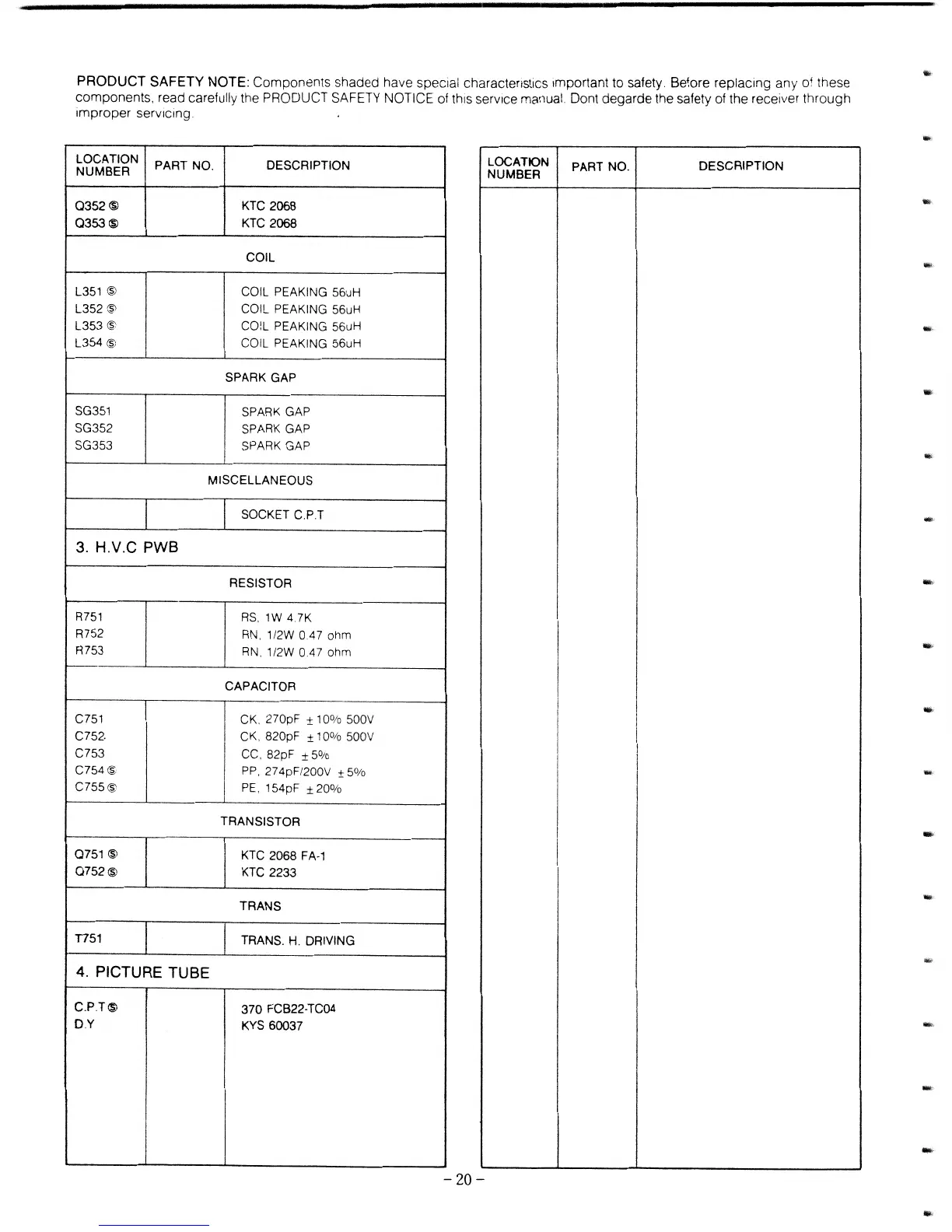

PRODUCT SAFETY NOTE: Components shaded have special charactenstlcs Important to safety. Before replaCing any Of these
components, read carefully the PRODUCT SAFETY NOTICE of this service manual. Dont degarde the safety
of the receiver through
Improper servIcing
LOCATION
PART NO.
DESCRIPTION
NUMBER
LOCATION
PART NO.
DESCRIPTION
NUMBER
0352@
KTC 2068
0353@
KTC 2068
I
I
COIL
L351 ®
COil PEAKING 56uH
l352 ®
COIL PEAKING 56uH
l353 ®
COil PEAKING 56uH
l354 ®,
COIL PEAKING 56uH
SPARK GAP
SG351
SPARK GAP
SG352
SPARK GAP
SG353
SPARK GAP
,
MISCELLANEOUS
SOCKET
CPT
3. H.V.C PWB
I
RESISTOR
R751
RS.
1W 4.7K
R752
RN.
1/2W 047 ohm
R753
RN.
1/2W 047 ohm
CAPACITOR
C751
CK. 270pF ± 10% 500V
C752.
CK,820pF ± 10% 500V
C753
CC, 82pF ±5%
C754(§;
I
PP, 274pF/200V ± 50fa
C755®
I
PE, 154pF ± 20%
TRANSISTOR
Q751 ®
KTC 2068 FA·1
0752®
KTC 2233
TRANS
T751
TRANS.
H,
DRIVING
4. PICTURE TUBE
C.PT®
370 FCB22-TC04
DY
KYS 60037
I
- 20-
-
...
-
...
.,
-
