CommScope CPP-UDDM-SL-1U-24 - DDM Panel Installation Steps; Step 1 - Mounting the Panel to Rack; Step 2 - Rear Cable Manager Assembly

860636329
Instruction Sheet
www.commscope.com
Page 4 of 8
A. Installation of Panel

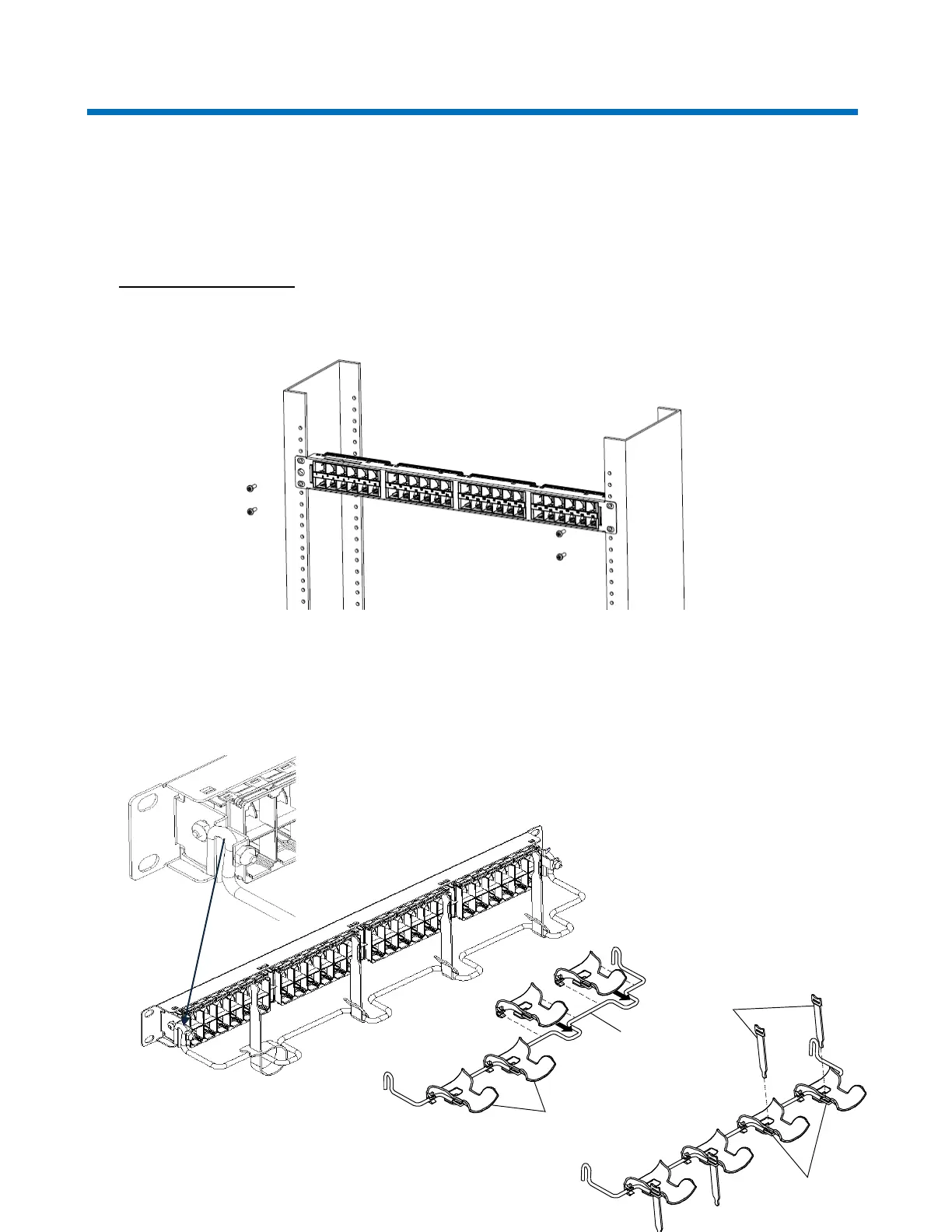

Step 1 – Mount Panel to Rack
1. Mount panel to rack.
Step 2 – Assemble and Install Rear Cable Manager
1. Attach cable bar as shown and insert four hook-and-loop straps to cable bar.
Slots on cable
troughs
Hook-and-loop
straps
Cable troughs
installed
Cable b
ar
