CommScope CPP-UDDM-SL-1U-24 User Manual

www.commscope.com
860636329
Instruction sheet
Page 7 of 8

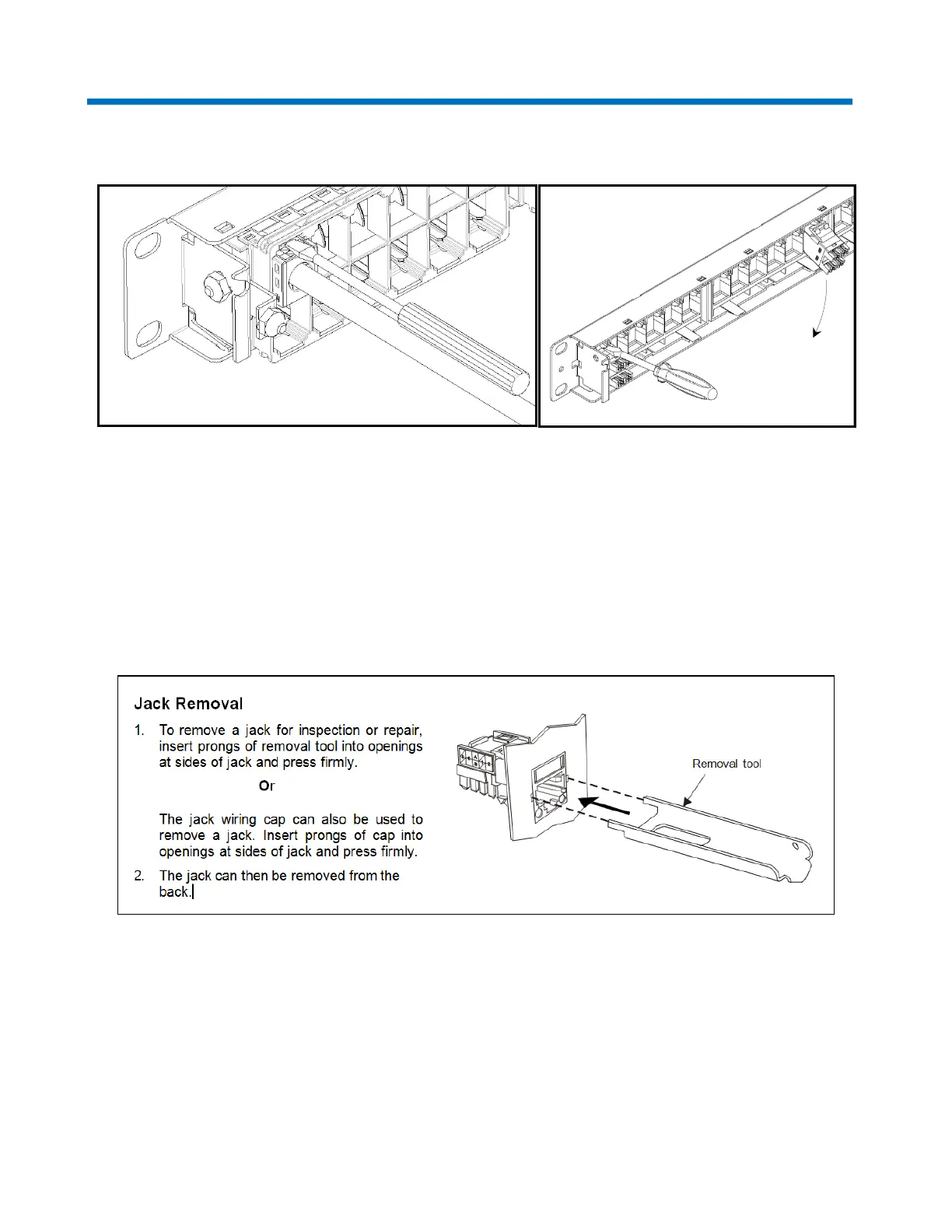

B. To Remove a Jack from Panel
1. Insert a small, 2.9mm dia. max flat-blade screwdriver into the slot above the jack and rotate to release the
latch.
2. Remove jack from rear of panel.
3. Note – cable management bar may need to be removed to enable access to the release slot on some jack
positions.
12 Port Jack Removal 6 Port Jack Removal
M-Series Jack Removal

CommScope CPP-UDDM-SL-1U-24 Specifications

General

Brand	CommScope
Model	CPP-UDDM-SL-1U-24
Category	Network Hardware
Language	English
