CommScope NOVUX SRC100 - 48 Splice Configuration; Installing the Hinges

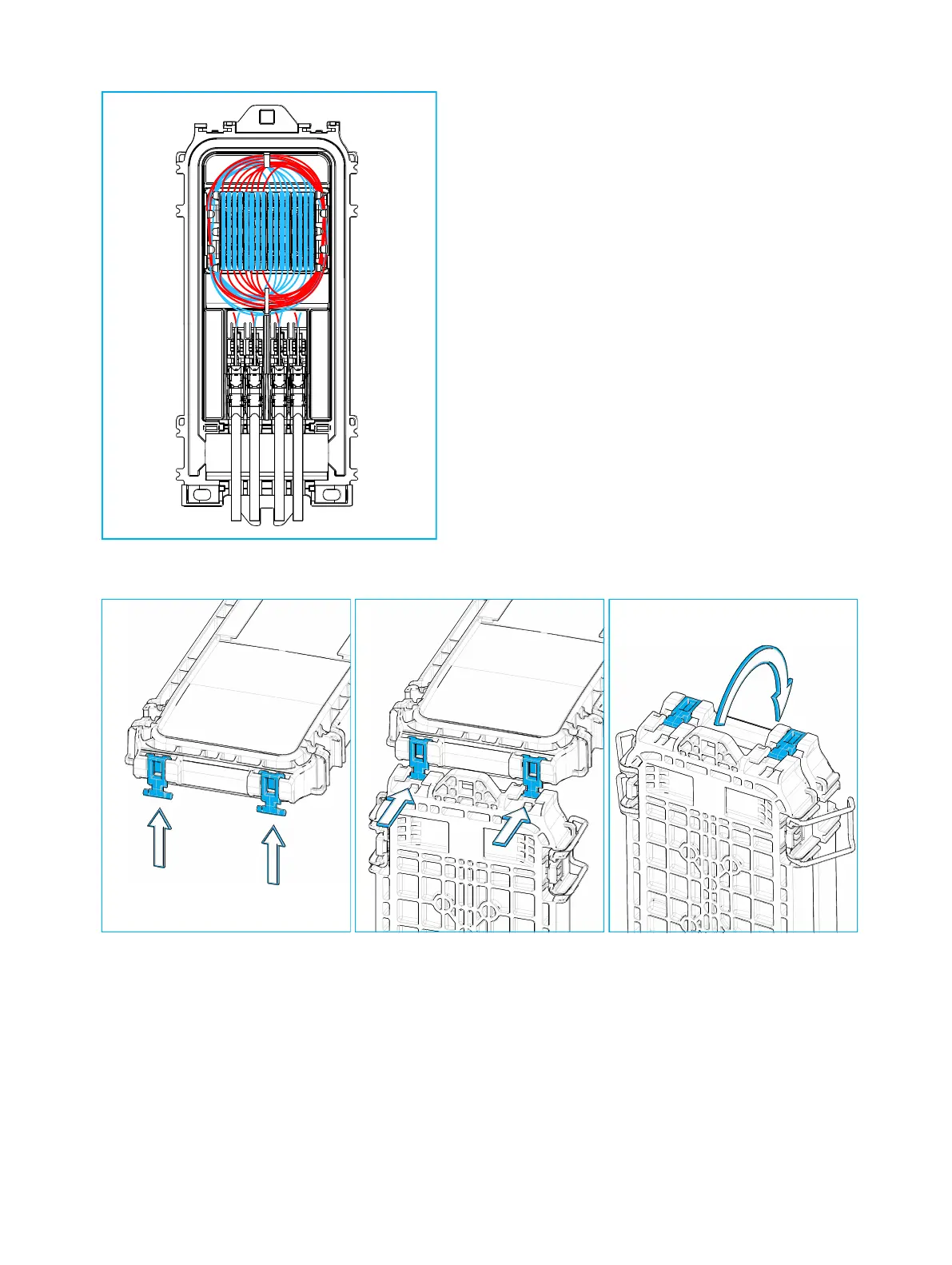

8.3 48 splice configuration
9 Install the hinges
1 Install the hinges at the cover.
2 Install the cover with hinges at the closure base.
3 Close the cover.
page 8 / 11
