Page #10 background image
M10 x 30
Torque to 38Nm ± 5%
M10 x 45
Torque to 38Nm ± 5%
M10 x 20
Torque to 38Nm ± 5%
Assemble antenna mount to
antenna assembly as shown.
Note:For installation of interface see separate instructions.
Apply grease to surfaces shown,
use gloves provided.
50-120 mm
Pole to be structural
engineer approved
rigid structural support
Secure mount to pole as shown.
Tighten 2x nut
to torque of 38Nm ± 5%`
M10 x 150
Pre-assemble antenna
mount as shown. Unless
a torque is specified fit
screws finger tight.
Tighten nut to torque
of 38Nm ± 5%
M10 x 90
Torque to 38Nm ± 5%
Manually adjust
azimuth
to center of slot
BEFORE torquing
Apply grease to all threads
prior to assembly, use gloves
provided.
INSTALLATION
INSTRUCTIONS
SECTION 5
MOUNT ATTACHMENT AND ALIGNMENT
7708353
Page 10 of 13

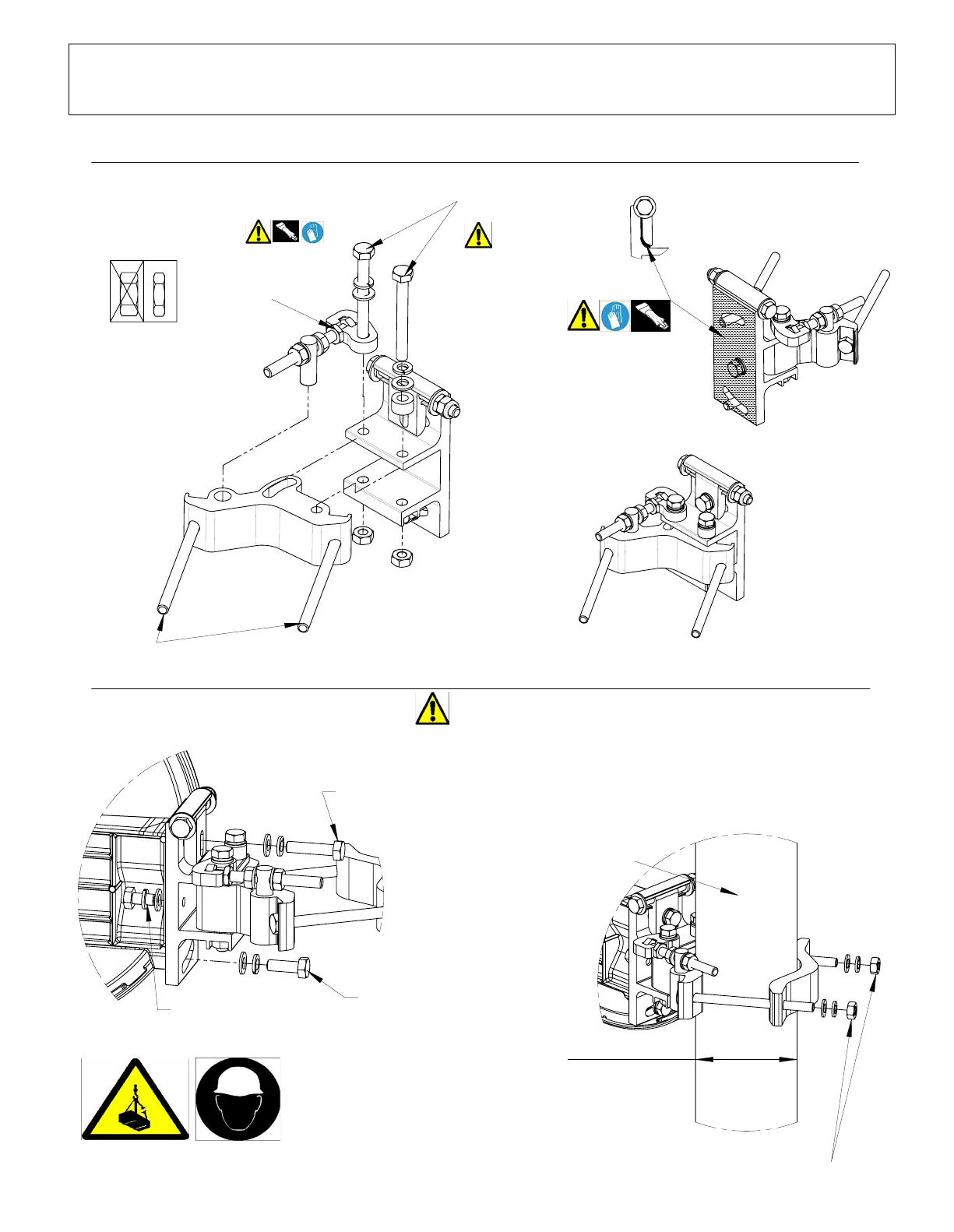

Assemble Mount to antenna at ground level
prior to attachment to tower
Pre-assembly of Mount
1
NEVER WALK
UNDER HOISTED
LOADS
2
Mounting of Antenna
