Page 9 of 13
7708353
UNPACKING
SECTION 4
INSTALLATION
INSTRUCTIONS

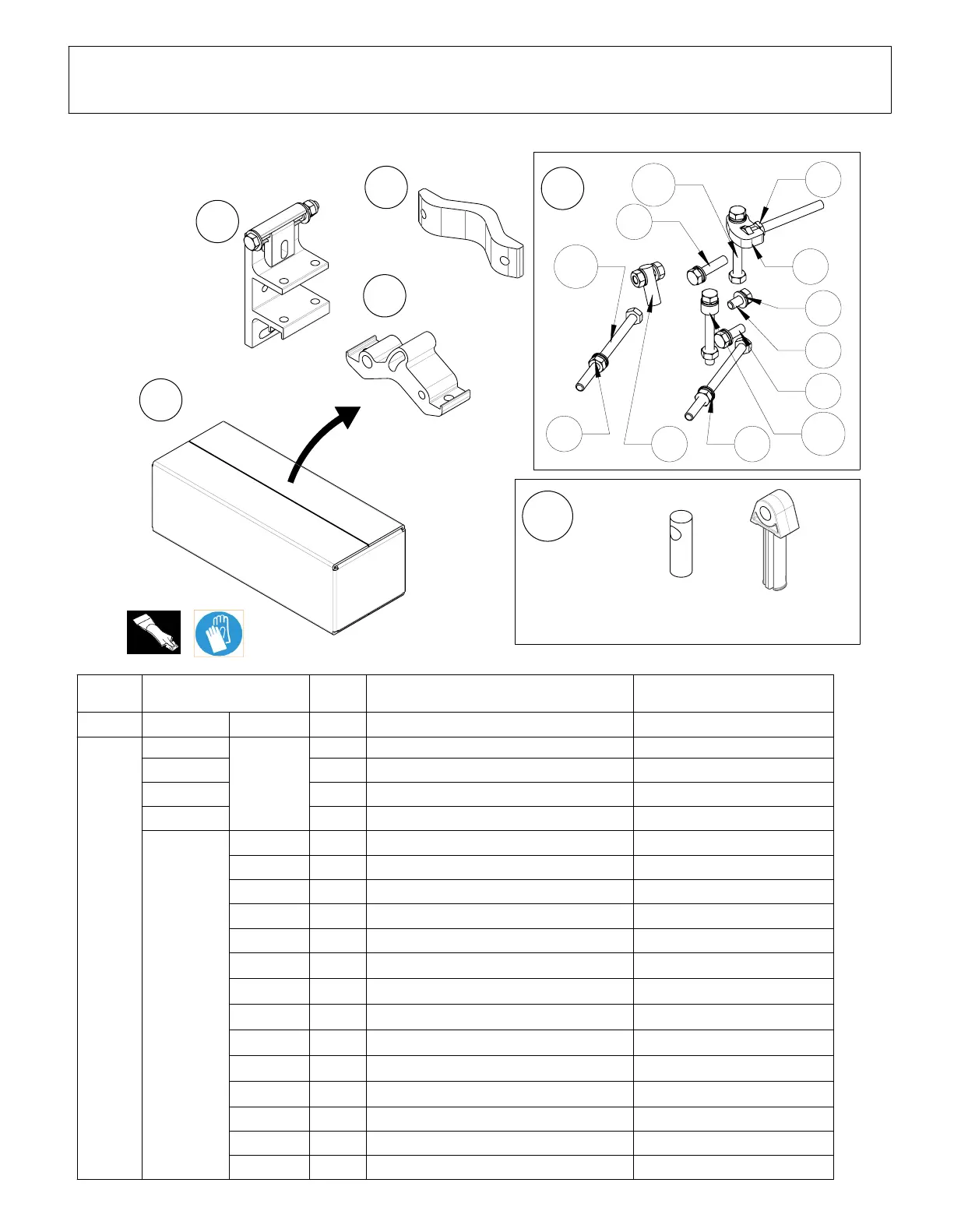

Unpacking Mount Kit
B
B1
B4-2
Kit Variants*:
* No functional change
between kit variants.
Sub
ASSY
Lower Level
Qty
Description
Contained in Kit Part
No
B
Mount Kit
7705250
B1
1
Elevation Adjuster Assembly
7705239
B2
1
Pipe clamp
7676242
B3
1
V Clamp Bracket
7676245
B4
1
Mount Hardware Kit
7724926
B4-1
1
Azimuth Adjuster Assembly
B4-2
1
Adjuster Boss
B4-3
1
Nut,Hex Thin,M10,sst,Pass
B4-4
6
Nut,Hex,DIN 934,M10,sst,Pass
B4-5
7
Wshr,LK,Split,M10,sst,Pass
B4-6
9
Wshr,FLT,M10,10.5X20X2,sst,Pass
B4-7
1
Scr,HCS,Hex,M10X20,sst,Pass
B4-8
1
Scr,HCS,Hex,M10X30,sst,Pass
B4-9
1
Scr,HCS,Hex,M10X45,sst,Pass
B4-10
2
Scr,HCS,Hex,M10X90,sst,Pass
B4-11
2
Scr,HCS,Hex,M10X150,sst,Pass
1
Conductive Grease (Tube)
2
Gloves
B4-12
1
SPACER
