Community XLT / XLTE Series Owner’s Manual

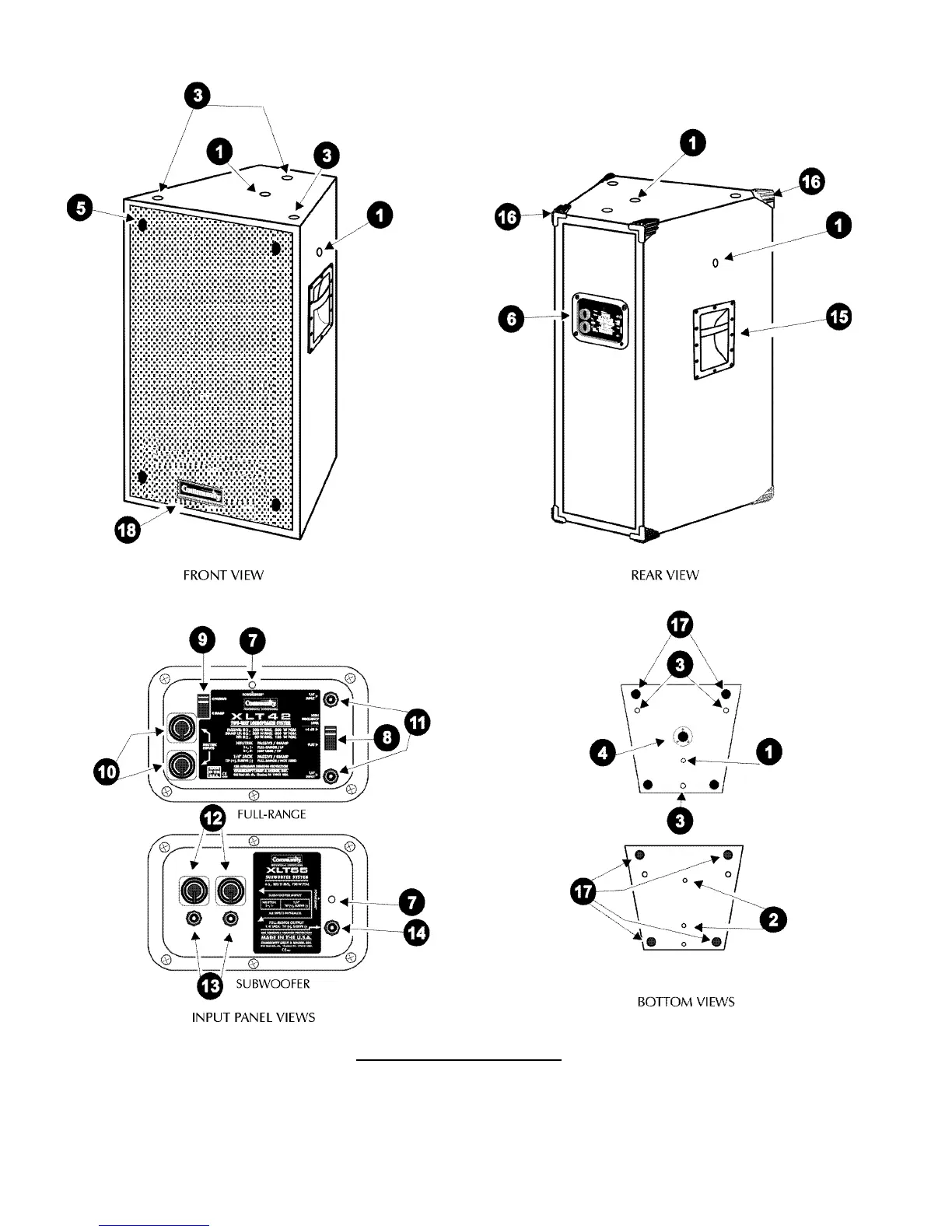

Figure 1: Physical Features
NOTE: These are composite, generalized drawings showing features for both XLT and XLTE products.
Refer to TABLE 1 to determine which of these features apply to your particular loudspeaker model.
