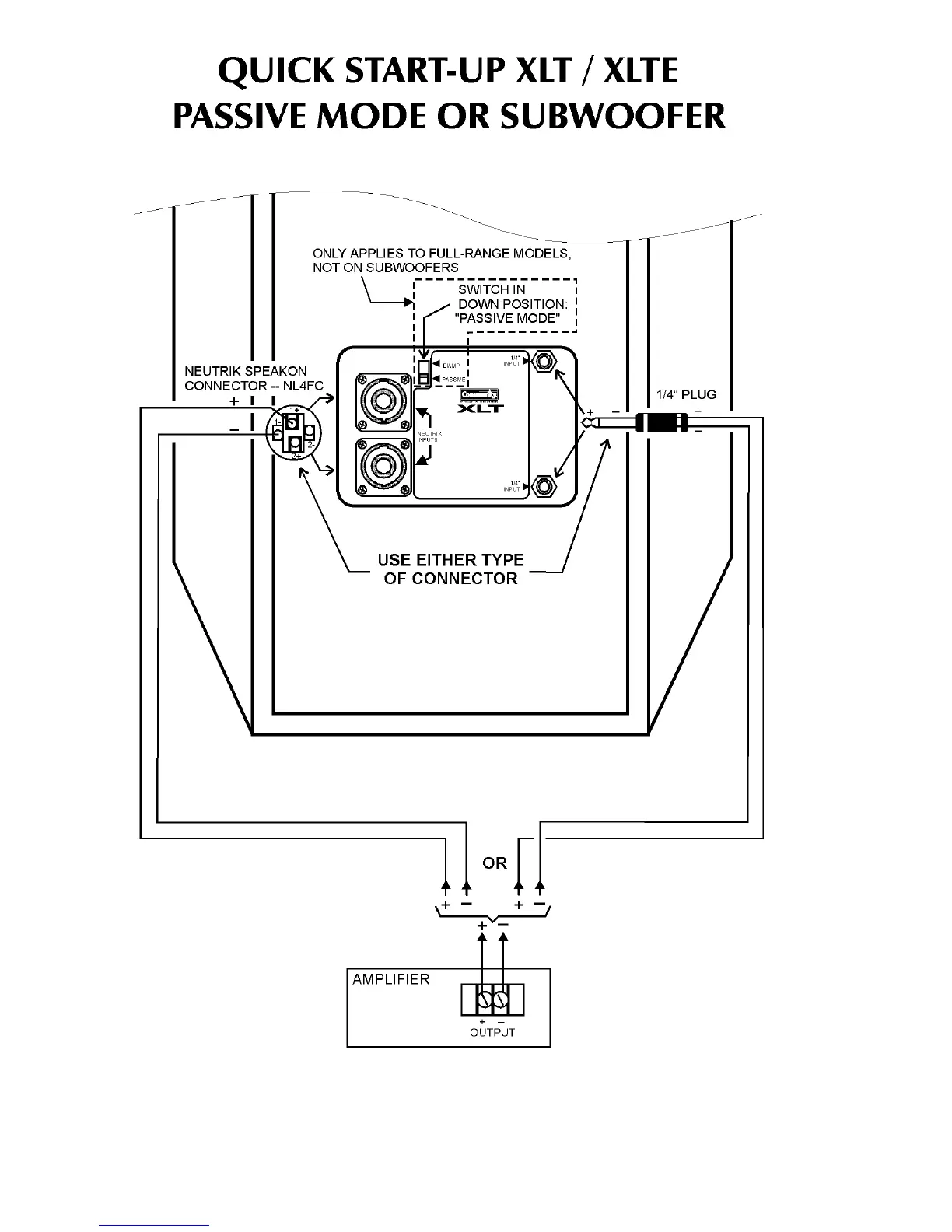

Community XLT - Quick Start-Up Guides; Passive Mode or Subwoofer Connection

PAGE
6
Community XLT / XLTE Series Owner’s Manual
NOTES: As shipped from the factory the PASSIVE/BIAMP switch is set for PASSIVE mode and the HF Level Switch
(not shown) is set in the +4 dB (maximum) position. Subwoofer input panel layout is different from that shown.
