Community XLT / XLTE Series Owner’s Manual
specific crossover settings for all possible combinations and situations. Therefore, if the crossover allows a
range of filter adjustments, you should experiment for the best sound.
Here are some general recommendations: The crossover frequency can be set anywhere between 80 Hz and
175Hz, however a setting between 100 Hz to 150 Hz is recommended. Use a 12 dB or 18 dB per octave
crossover slope. If you have a choice of filter types, the Butterworth type should work well. Adjust the
acoustical balance between the full-range loudspeaker and the subwoofer by using the amplifier input level
controls or the crossover output level controls.

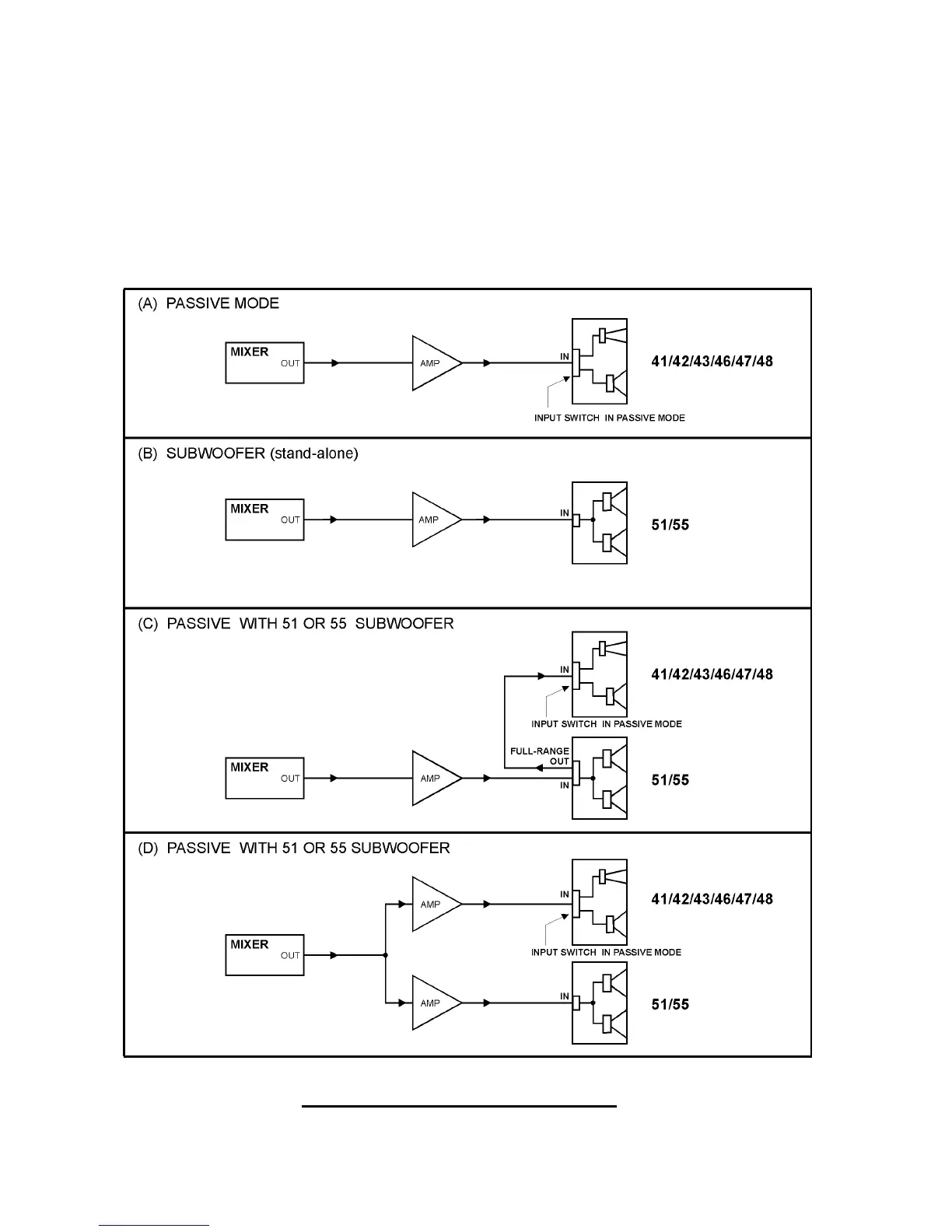

FIGURE 2: PASSIVE Mode Configurations
