Installation
Page 17
Step 3 - Connecting the VHF antenna
Route the cable from the VHF antenna to the AIS transceiver and connect to the VHF connector on the AIS transceiver as shown in
Figure 9.
A standard marine band VHF antenna or AIS antenna should be used with the AIS transceiver. The connector type on the AIS
transceiver is SO239. Your chosen VHF antenna requires a PL259 connector to mate with this. If your VHF antenna does not use this
type of connector please contact your dealer for details of available adaptors.

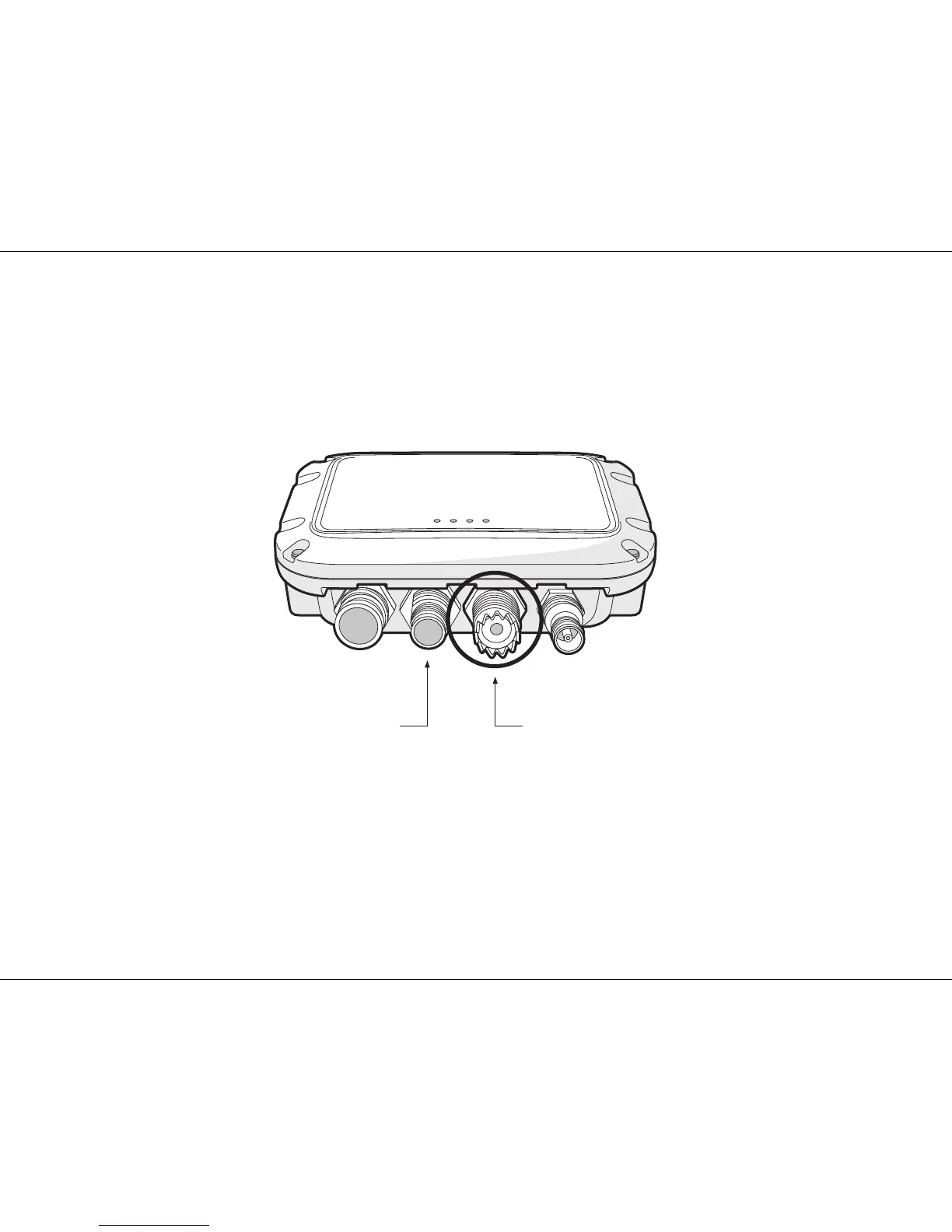

Figure 9 Position of the VHF antenna connector
