ComNav Class B AIS - Connecting an External Switch

Installation
Page 19
Step 5 - Connecting an external switch
A toggle switch can be connected to the AIS transceiver to provide remote control of silent mode.
Connect the toggle switch between the light green and orange wires as shown in Figure 10. Connection of an external switch to toggle
silent mode is optional and not essential for normal operation of the product.

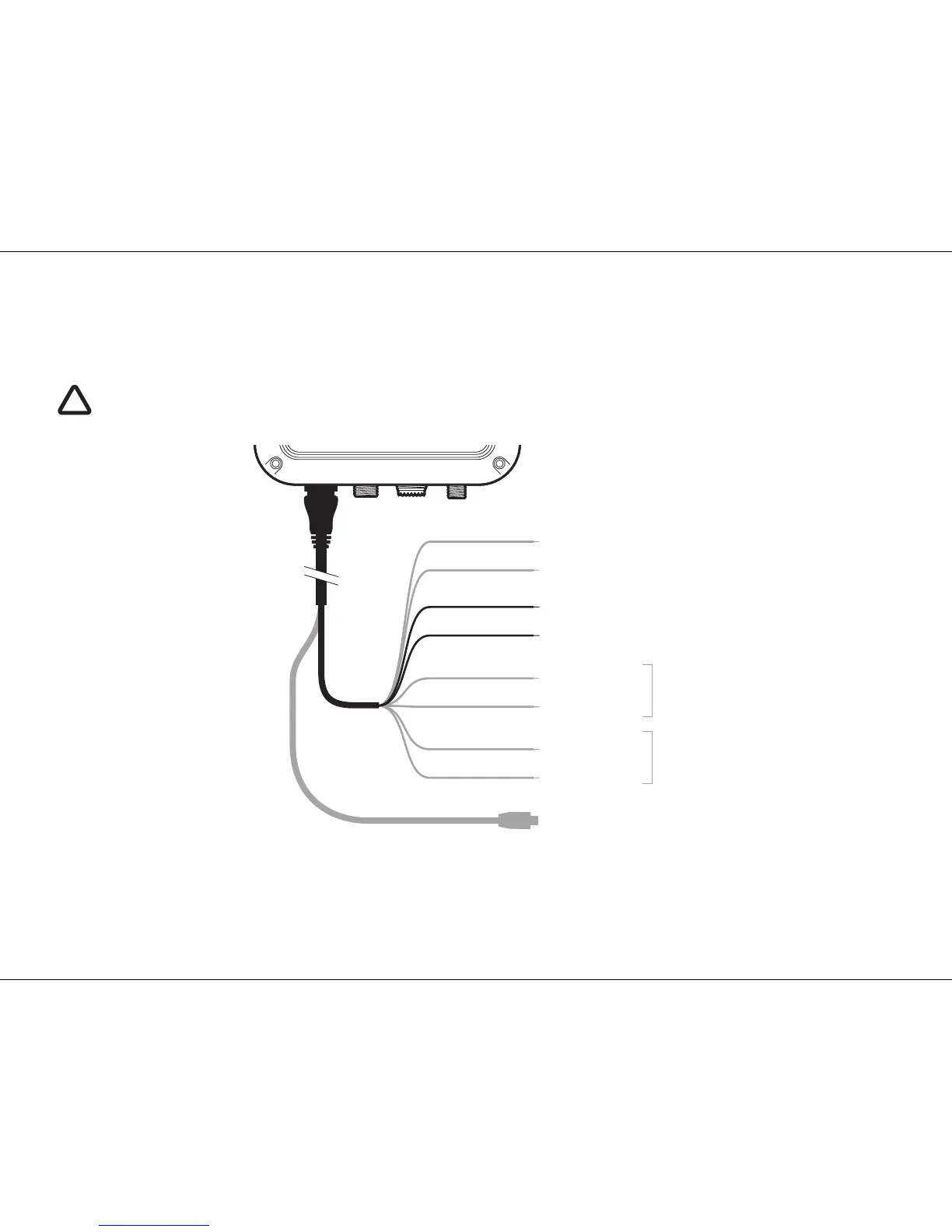

Figure 10 Connecting an external switch
Do not connect a voltage source across the switch inputs as this may damage the transceiver.
!
Transmit +
Transmit –
Power in +
Power in –
Switch input +
Switch input –
Receive +
Receive –
USB
Brown
Blue
Green
Orange
Red
Bl
ack
Purple
Yell
ow
NMEA0183
38,400 Baud
NMEA0183
4,800 Baud
