QUICK START GUIDE CNFE3TX2CXMS(U,E)
TECH SUPPORT: 1.888.678.9427

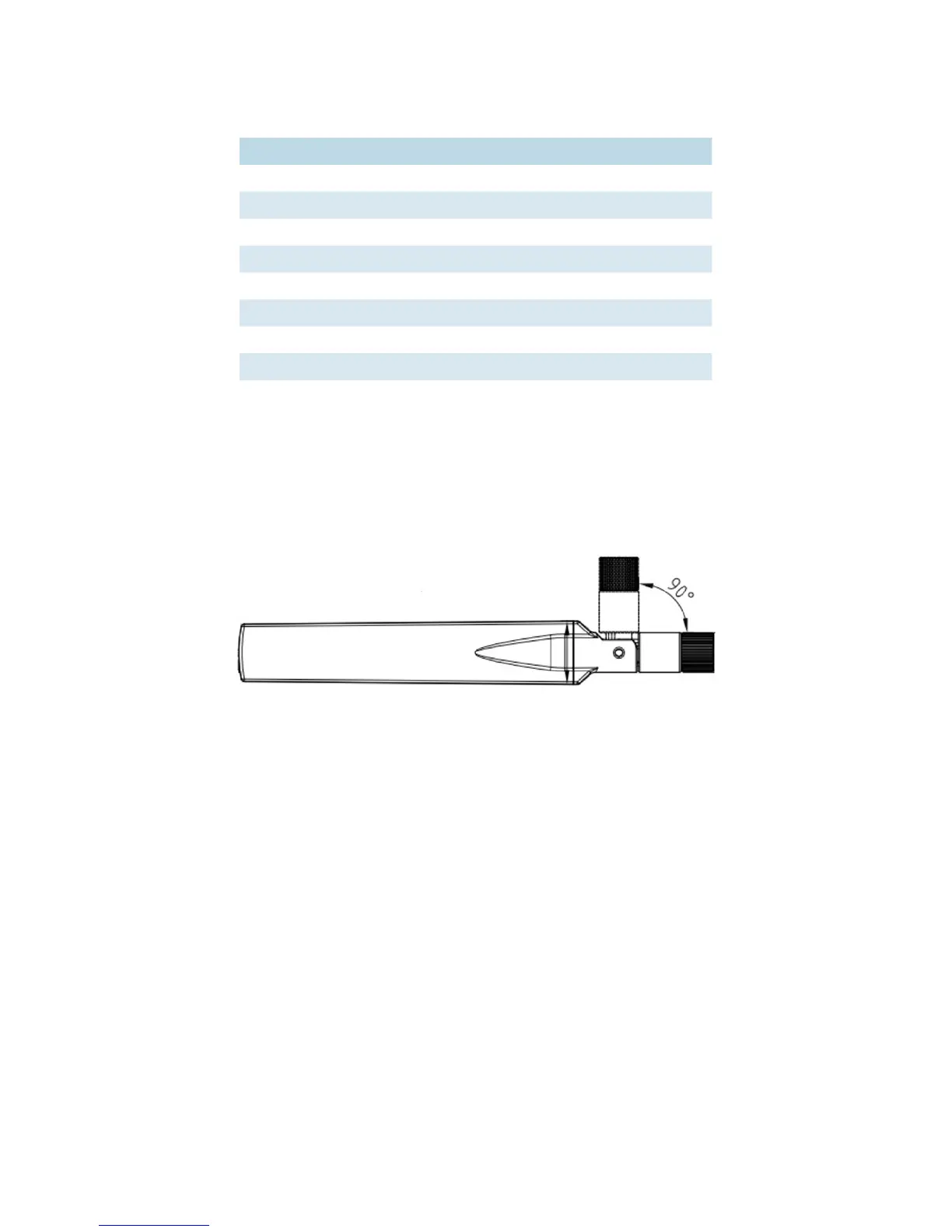

MDI/MDI-X pins assignment
Pin Number MDI port MDI-X port
1 TD+(transmit) RD+(receive)
2 TD-(transmit) RD-(receive)
3 RD+(receive) TD+(transmit)
4 P.O.E. power input + P.O.E. power input +
5 P.O.E. power input + P.O.E. power input +
6 RD-(receive) TD-(transmit)
7 P.O.E. power input - P.O.E. power input -
8 P.O.E. power input - P.O.E. power input -
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
4.3 Cellular Antenna
The router provides two SMA connectors for cellular antennas. External RF cables and antennas
can also be used with the connector.
