Displays: Litres only, Retail, Multi-p
rice & Preset
Electrical Wiring C4000
Compac Industries Ltd.
Page
54
www.compac.co.nz
S
e
c
u
r
e
P
IN
P
a
d
U
n
i
t

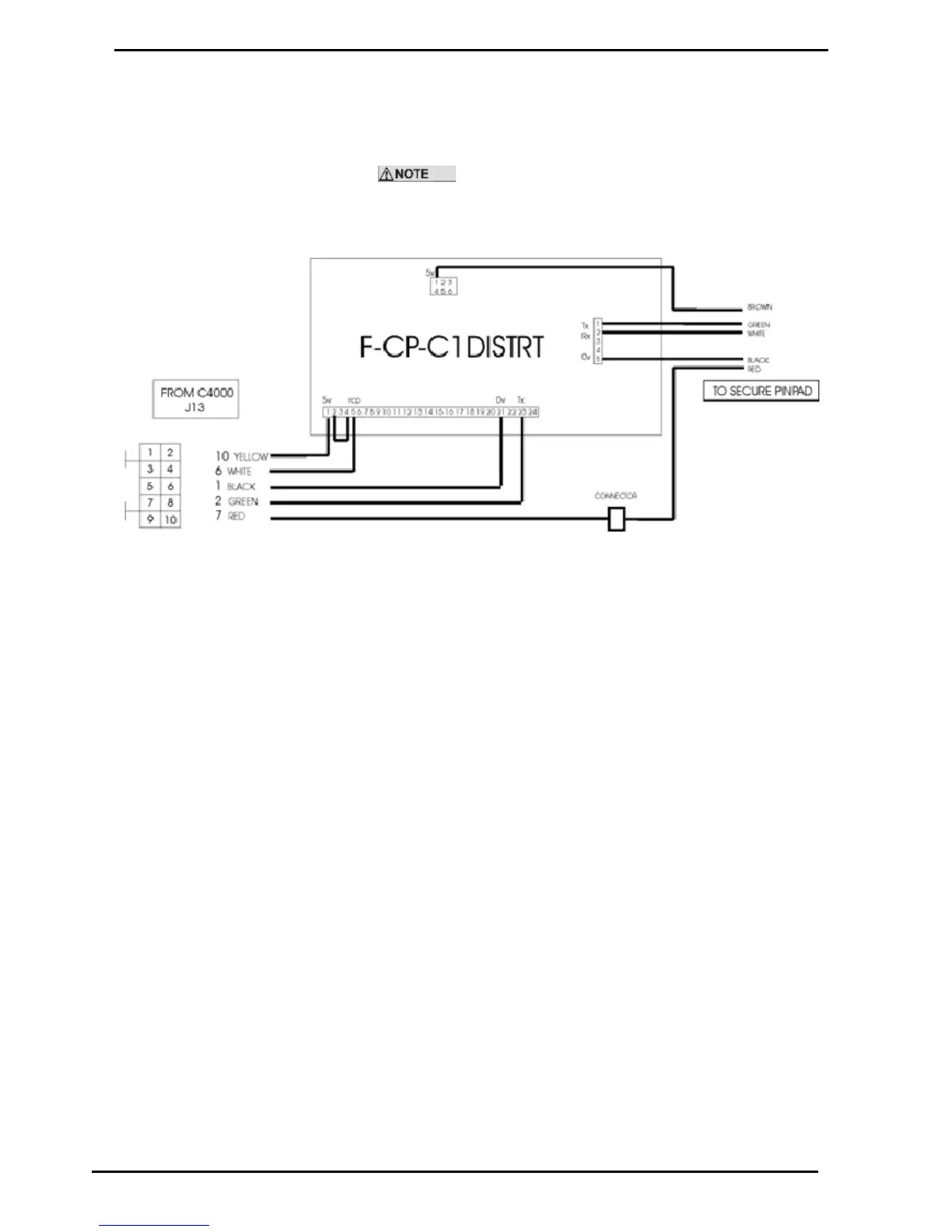

When connecting a BP Secure PIN pad to a C4000 a Distribution board CI-
36 is required as an interface.
The Secure PIN pad / C4000 combination only works with old
type Central Controllers
Special software is required for the C4000. Secure PIN pads are not
supported in either Futra or Communicator Controller software.
Figure 19. Secure PIN Pad
M
o
d
e
m
This device is not covered in this part of the manual. Refer to the FUT
RA
Service Supplement.
53
55
Table of Contents
Default Chapter
3
Table of Contents
3
Product Identification C4000 Processor
5
Document Control Information
6
Symbols and Units of Measure
7
Safety - C4000 Controller
8
Mechanical Safety
8
Electrical Safety
8
Safety Precautions
8
Electrical Commissioning
9
Cable Requirements
9
Connecting Mains Power and Communication
10
Electrical Commissioning C4000
11
Main Features
12
C4000 Components
12
Configurations
13
Set-Up Modes
16
Configuration Code
16
B' Settings
18
C4000 Set-Up
21
Calibration ('K') Factor
23
No Flow Cut-Off Timer
25
Display (Litres) Resolution
26
Solenoid Delay
27
Pre-Set Cut-Off
28
Further Settings Available on the 'K' Factor Switch
28
Parameter Switch
33
Printer Set-Up
40
Displaying and Printing Totals
41
Basic Systems (Comcard Compin & Cwidkey)
43
Electrical Wiring C4000
45
Compac Wireless Transceiver
49
Displays: Litres Only, Retail, Multi-Price & Preset
52
End of Sale Indications
58
Software Upgrade Procedure
59
Solid State Relays (Triacs)
61
Triacs C4000 Single, Dual & Quad
62
Triacs C4000 MPD6 & MPP6 Side a
63
Triacs C4000 LPG Single/Dual, CNG & Bulk Meter
64
High Current Triac Option
65
Indicator Leds
66
Fault Finding
68
Error Codes
70
Error Messages
71
C4000 with RS232 Wiring
72
Appendix A
72
RS485 Wiring
73
C4000 with RS485 Wiring
75
Gilbarco Interface Wiring
76
Glossary of Terms
77
