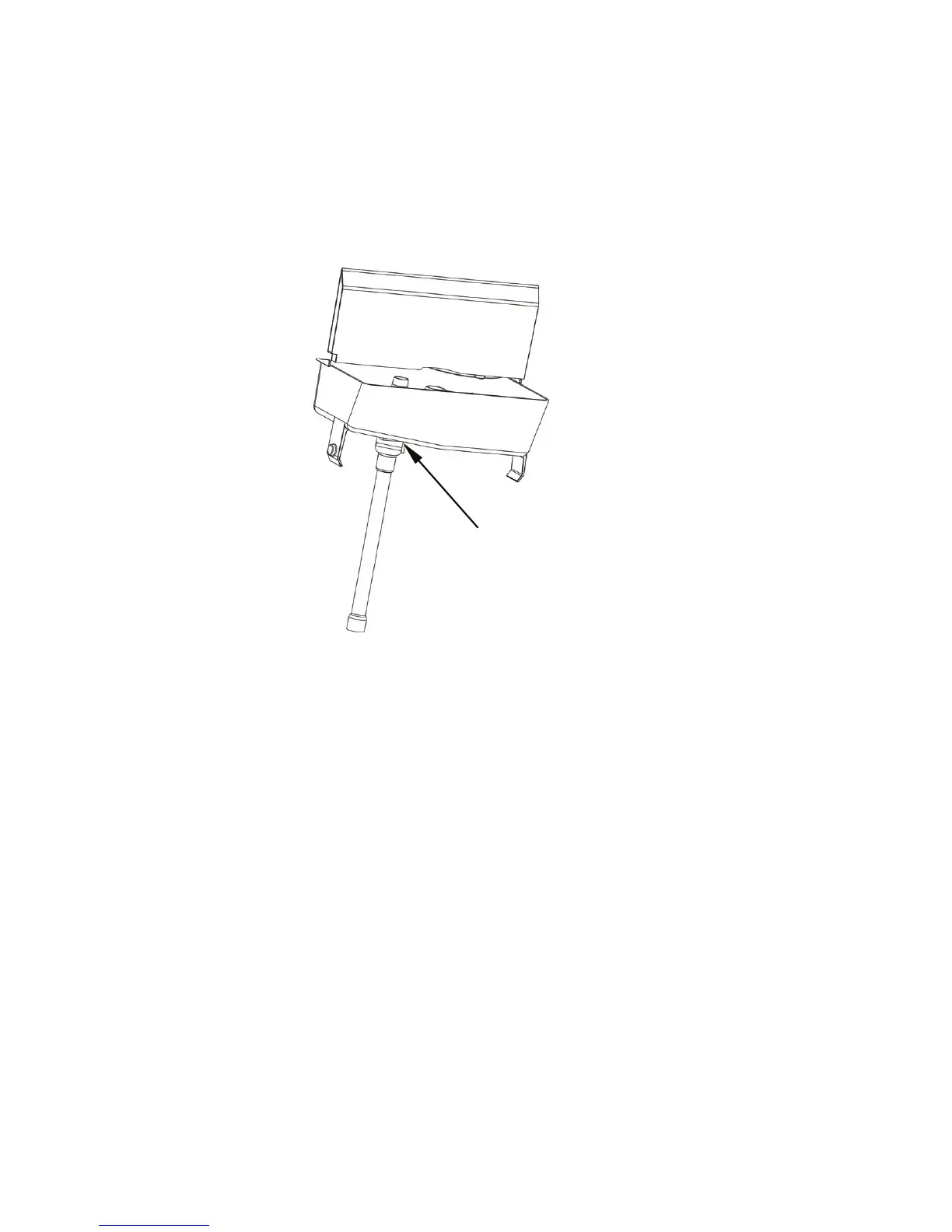

SUMP DRAIN OVERFLOW TUBE
1. Remove clamp.
2. Pull down to remove overflow tube and tubing
as an assembly. The sump trough water will
drain into the bin.
3. Remove overflow tube from vinyl tubing by
pulling.
Remove Clamp
&
Pull Down
