33
ICE CHUTE
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin. It must be firmly
positioned over the spray bar, with the front edge
inside the water trough. Spray nozzles must align with
the spray holes or spray water will fall into the bin.

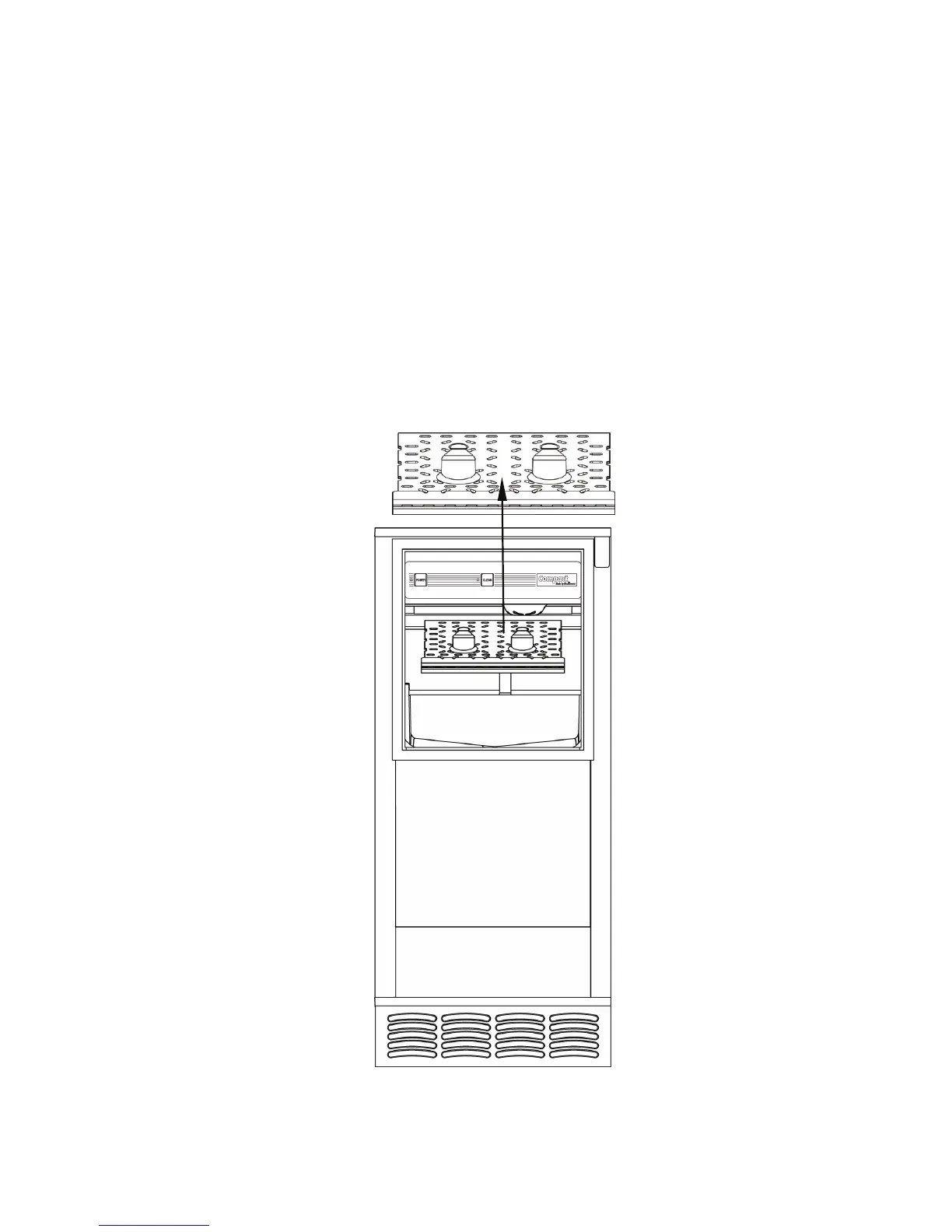

1. Grab protruding spray hole on one end and lift
up and remove.
2. To re-install ice chute, grasp protruding spray
hole and position over Water Distribution
Assembly. Make sure rear supports are over
spray bar, and front edge is inside of water
trough.
