37

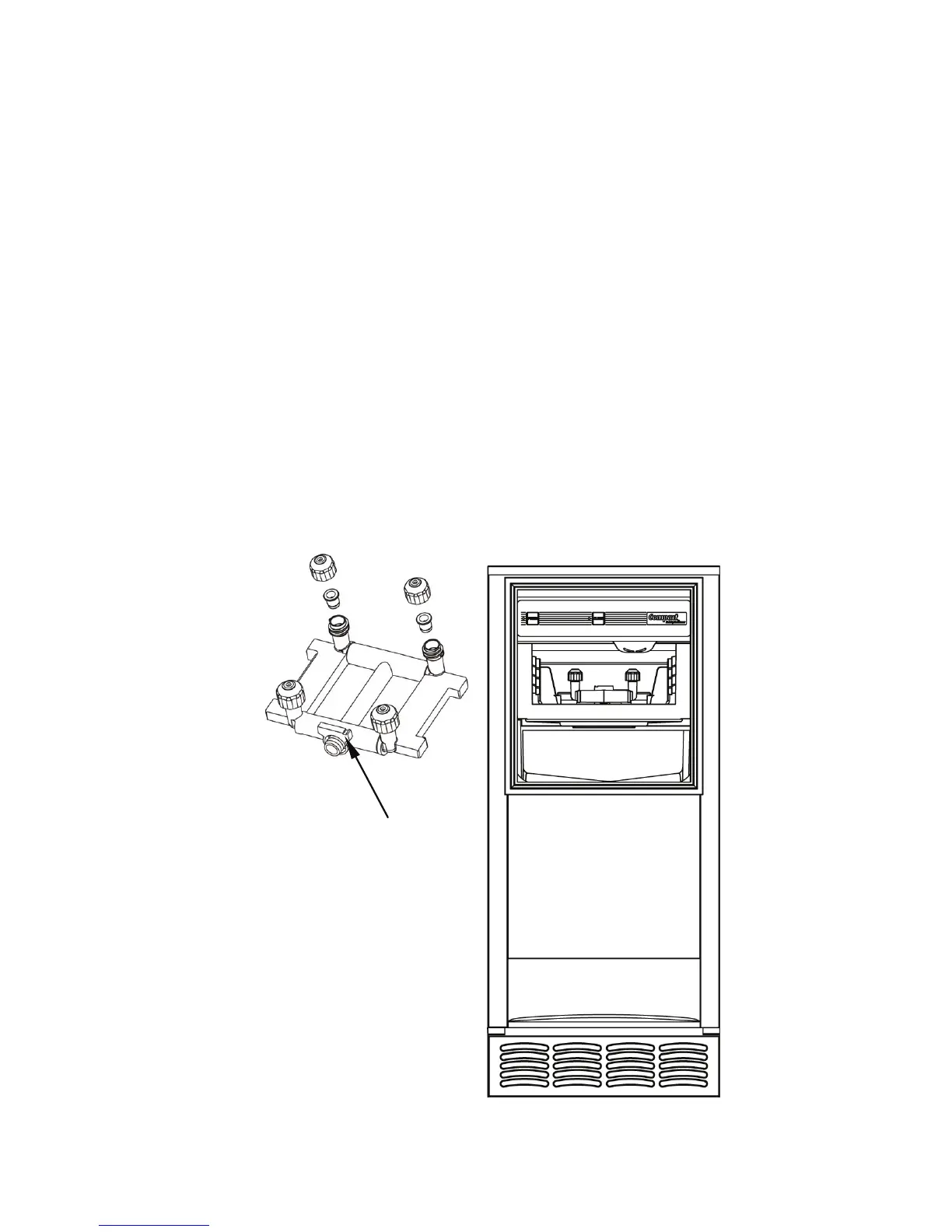

SPRAY BAR DISASSEMBLY
The spray bar supplies water to the individual ice
making cups. Water from the water pump sprays
through the nozzles, located on the upper portion of
the tubes.
1. Grasp one end of the spray bar, lift up and
remove from seat formed in evaporator bucket.
2. Remove clamp on water inlet tubing by grasping
both ears on clip and separating.
3. Apply food grade lubricant to ease re-assembly
of spray bar components when necessary.
4. To re-install spray bar, position water inlet
tubing on inlet ports, and squeeze clips until
tight.
5. Reposition assembly on water trough seat.
Nozzles and inserts can be removed for
cleaning by unscrewing nozzles. Inserts are
located inside the spray bar ports. The spray bar
also disassembles for easy cleaning.
Remove
Clamp
