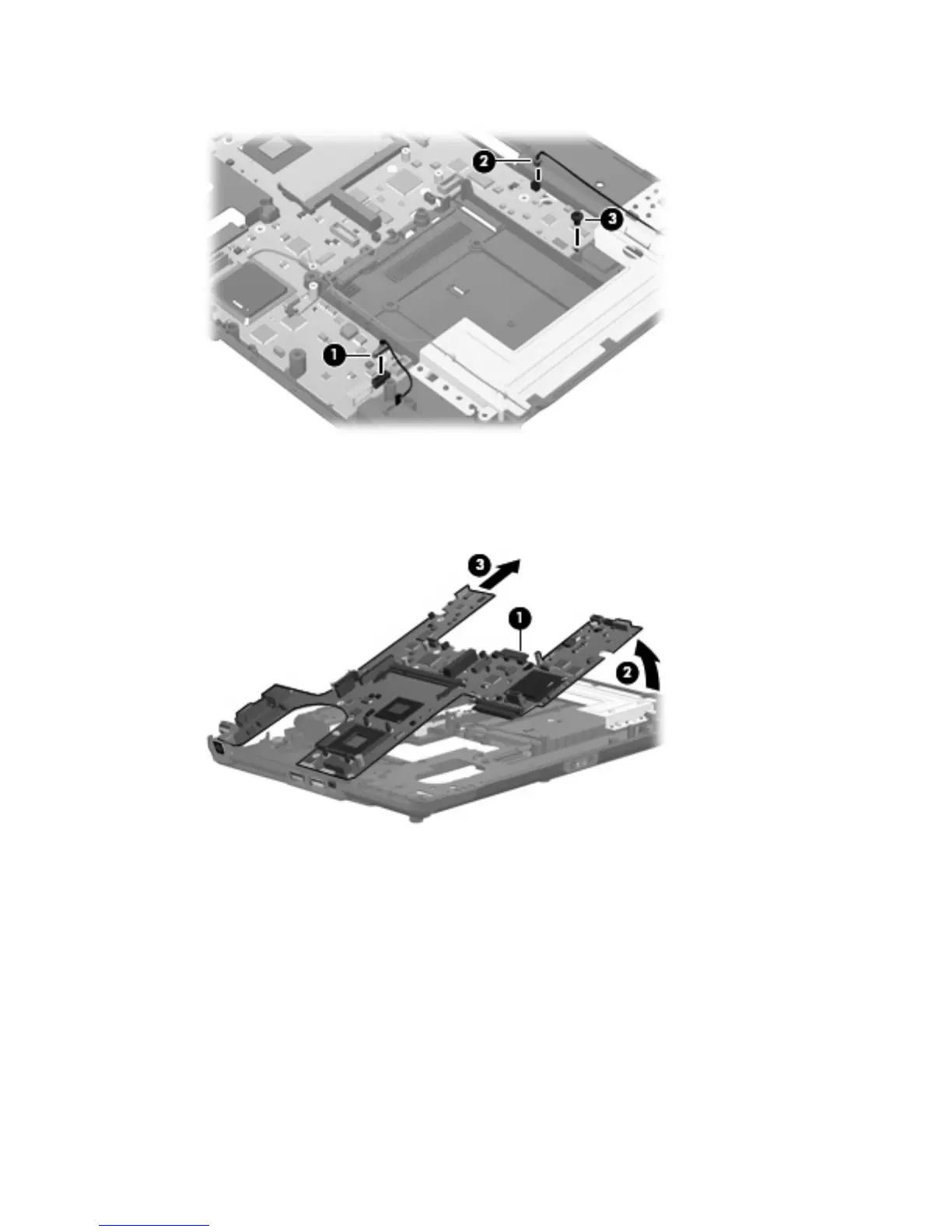

6. Remove the Phillips PM2.0×5.0 screw (3) that secures the system board to the base enclosure.
7. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an
angle.
8. Remove the system board (3) from the base enclosure by sliding it up and to the right.
Reverse the preceding procedure to install the system board.
Component replacement procedures 103

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Compaq 6530b - Notebook PC and is the answer not in the manual?

Compaq 6530b - Notebook PC Specifications

General IconGeneral
ProcessorIntel Core 2 Duo
GraphicsIntel GMA 4500MHD
Operating SystemWindows Vista Business
Battery LifeUp to 4 hours
Display14.1-inch WXGA (1280x800)
MemoryUp to 4GB DDR2
Storage120 GB to 250 GB 5400 rpm SATA
Battery6-cell Lithium-Ion
ChipsetMobile Intel GM45 Express
Optical DriveDVD+/-RW SuperMulti with Double Layer
NetworkingIntegrated Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless802.11a/b/g/n
AudioHigh Definition Audio, stereo speakers
PortsVGA, RJ-45
SlotsExpressCard/54
Processor Speed2.53 GHz
