Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 48).
5. Disconnect the wireless antenna cables from the WLAN module (see
WLAN module on page 59).
6. Remove the keyboard (see
Keyboard on page 63).
7. Remove the switch cover (see
Switch cover on page 67).
Remove the display assembly:
1. Close the computer and turn it upside down, with the rear panel toward you.

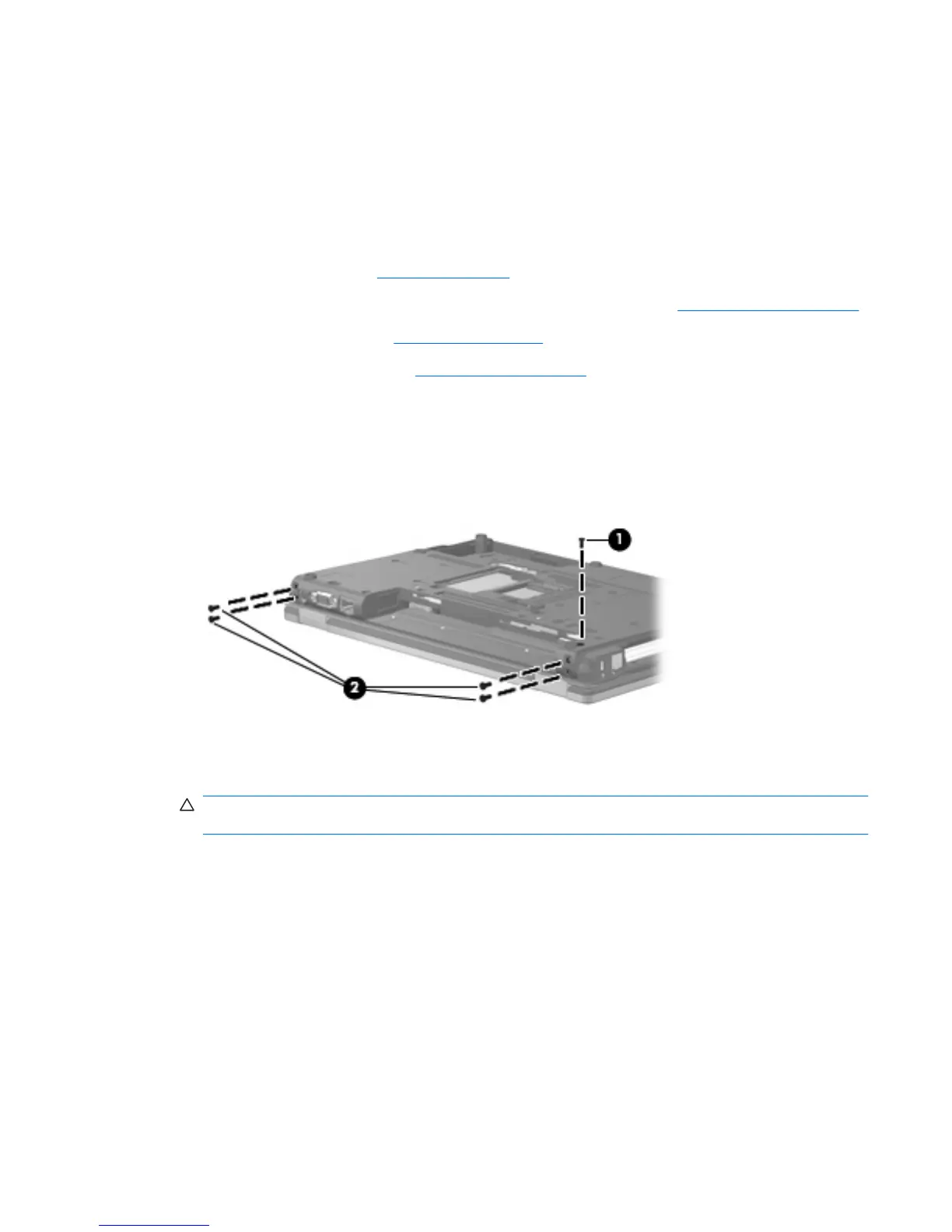

2. Remove the Torx T8M2.5×9.0 screw (1) that secures the display assembly to the computer.
3. Remove the four Torx T8M2.5×9.0 screws (2) that secure the display assembly to the computer.
4. Turn the computer right-side up, with the front toward you.
5. Open the computer as far as possible.
CAUTION: The display assembly will be unsupported when the left and right hinge cover screws
are removed. To prevent damage to the display assembly, support it before removing the screws.
6. Remove the Phillips PM2.5×4.0 screw (1) that secures the left hinge cover to the computer.
7. Remove the left hinge cover (2). The display hinge covers are available using spare part number
486287-001.
8. Disconnect the display panel cable (3) from the system board.
