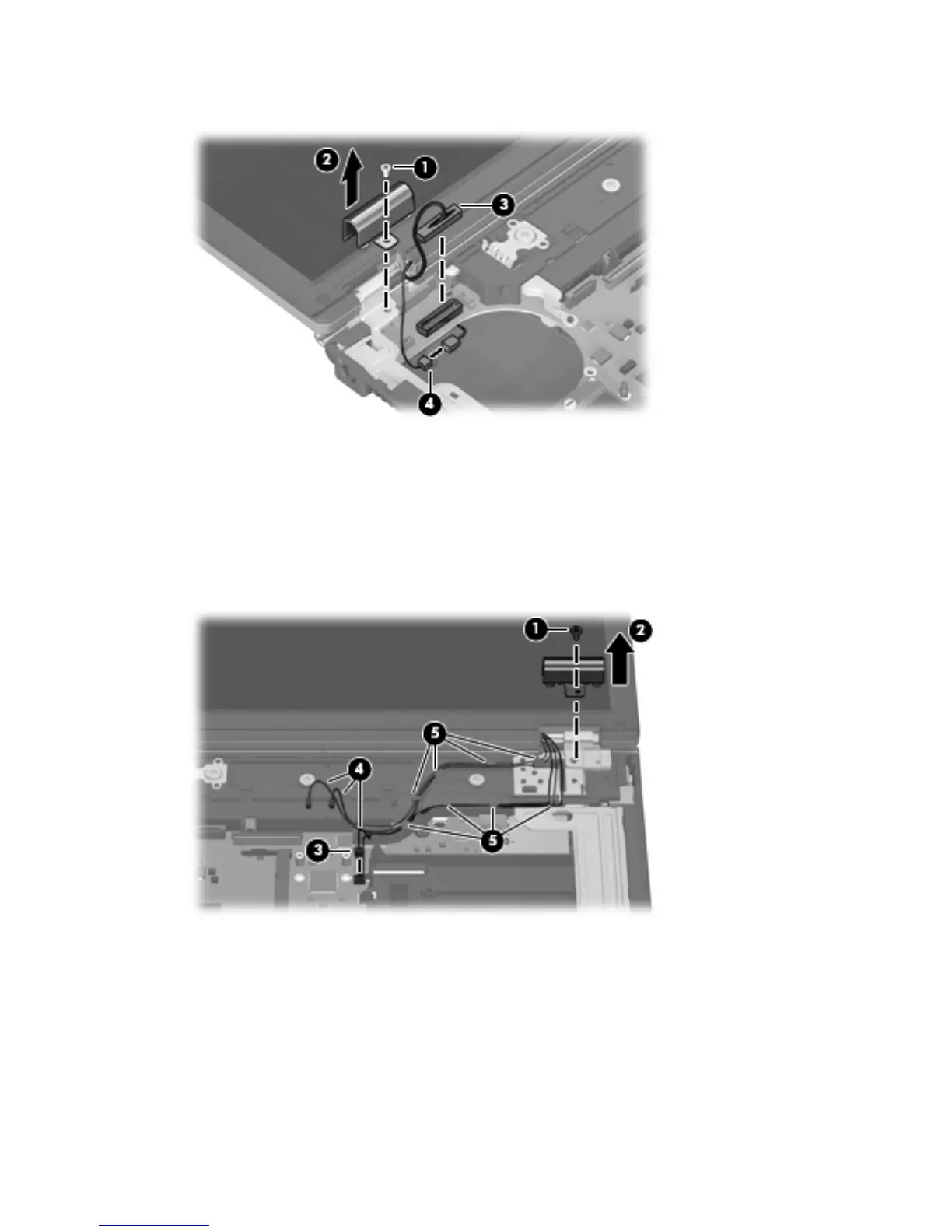

9. Disconnect the microphone extension cable (4) from the system board.
10. Remove the Phillips PM2.5×4.0 screw (1) that secures the right hinge cover to computer.
11. Remove the right hinge cover (2). The display hinge covers are available using spare part number
486287-001.
12. Disconnect the webcam cable (3) from the system board.
13. Remove the wireless antenna cables (4) from the clips (5) and routing channels built into the top
cover.
78 Chapter 4 Removal and replacement procedures

Compaq 6530b - Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista Business
Battery Life	Up to 4 hours
Display	14.1-inch WXGA (1280x800)
Memory	Up to 4GB DDR2
Storage	120 GB to 250 GB 5400 rpm SATA
Battery	6-cell Lithium-Ion
Chipset	Mobile Intel GM45 Express
Optical Drive	DVD+/-RW SuperMulti with Double Layer
Networking	Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless	802.11a/b/g/n
Audio	High Definition Audio, stereo speakers
Ports	VGA, RJ-45
Slots	ExpressCard/54
Processor Speed	2.53 GHz
