Compaq dc7800 - Convertible Minitower PC Hardware Reference Guide

System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

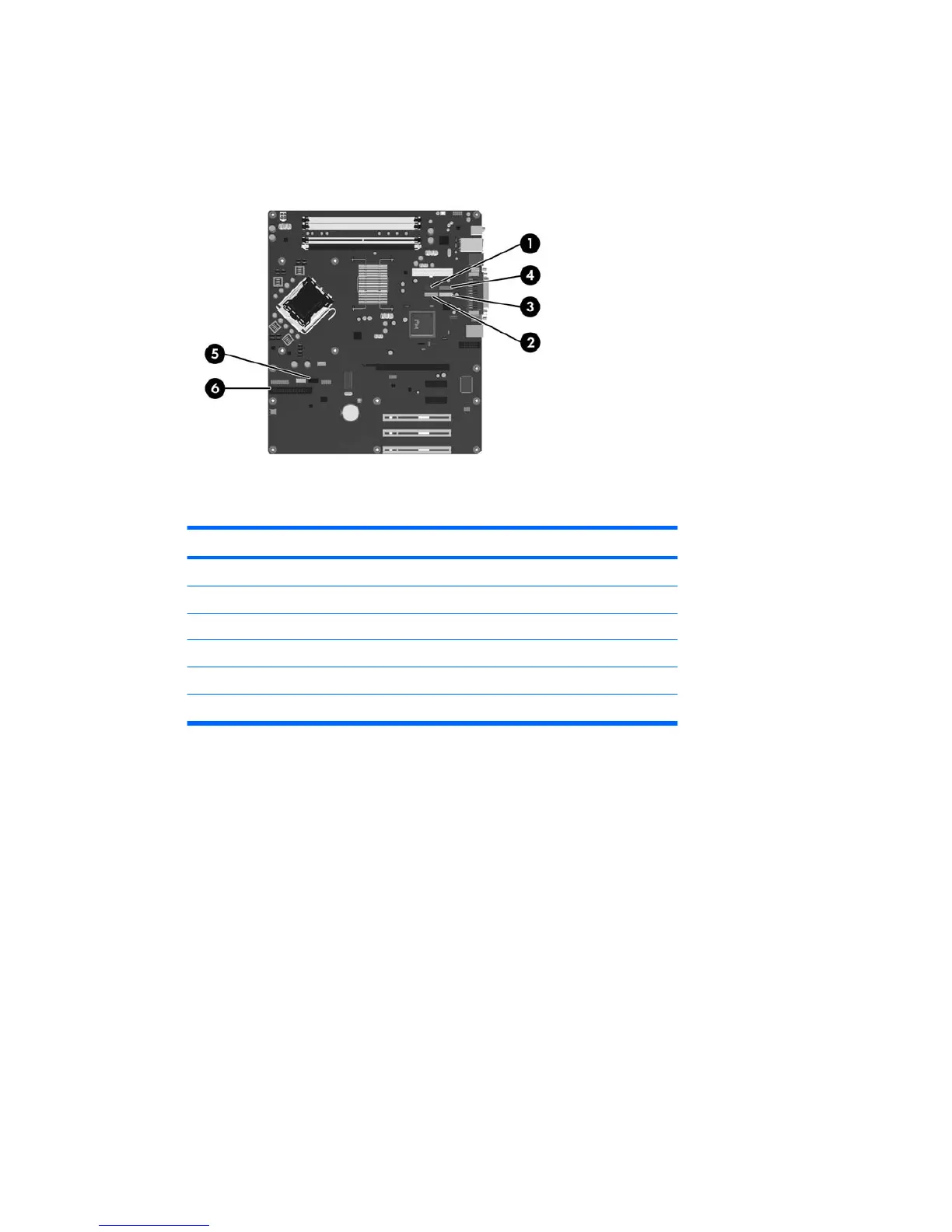

Figure 2-21 System Board Drive Connections
Table 2-4 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA4 SATA4 light blue
4 SATA5 SATA5 orange
5 Media Card Reader MEDIA CARD black
6 Diskette Drive FLOPPY black
ENWW Installing Additional Drives 29

Compaq dc7800 - Convertible Minitower PC Specifications

General

Chipset	Intel Q35 Express
Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Convertible Minitower
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA Hard Disk Drive or Solid State Drive
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Networking	Integrated Intel Gigabit Network Connection
Ports	USB 2.0, serial, parallel, VGA, audio in/out, PS/2
Audio	Integrated High Definition Audio
Operating System	Windows XP, Windows Vista
Expansion Slots	1 PCI Express x16, 3 PCI
Power Supply	365W standard efficiency or 80 PLUS power supply
