Compaq dc7800 - Convertible Minitower PC Hardware Reference Guide

Front Panel Components
Drive configuration may vary by model.

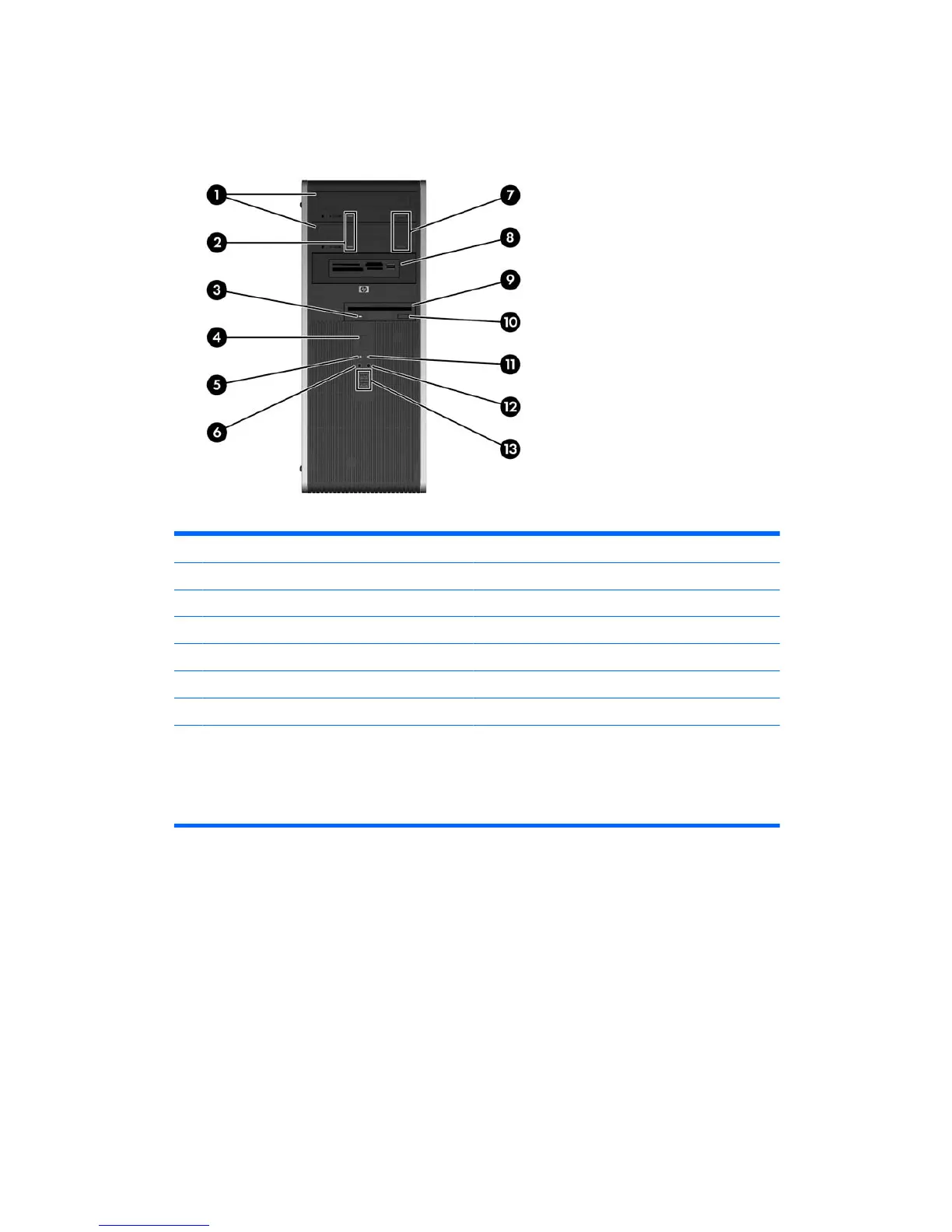

Figure 1-2 Front Panel Components
Table 1-1 Front Panel Components
1 5.25-inch Optical Drives 8 5.25-inch Media Card Reader (optional)
2 Optical Drive Activity Lights 9 Diskette Drive Activity Light (optional)
3 3.5-inch Diskette Drive (optional)
1
10 Diskette Eject Button (optional)
4 Dual-State Power Button 11 Power On Light
5 Hard Drive Activity Light 12 Headphone Connector
6 Microphone Connector 13 USB (Universal Serial Bus) Ports
7 Optical Drive Eject Buttons
NOTE: An optical drive is a DVD-ROM or SuperMulti LightScribe drive.
CAUTION: The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The bottom bay supports
a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force a larger drive,
such as an optical drive, into the bottom bay. This could cause damage to the drive and the system board. The use
of unnecessary force when installing any drive into the drive bay may result in damage to the drive.
1
Some models are configured with a media card reader in the external 3.5-inch drive bay. Other models have a bezel blank
covering this bay.
2 Chapter 1 Product Features ENWW

Compaq dc7800 - Convertible Minitower PC Specifications

General

Chipset	Intel Q35 Express
Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Convertible Minitower
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA Hard Disk Drive or Solid State Drive
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Networking	Integrated Intel Gigabit Network Connection
Ports	USB 2.0, serial, parallel, VGA, audio in/out, PS/2
Audio	Integrated High Definition Audio
Operating System	Windows XP, Windows Vista
Expansion Slots	1 PCI Express x16, 3 PCI
Power Supply	365W standard efficiency or 80 PLUS power supply
