2–12 Getting Started
A Look at the Notebook
Rear Panel Components

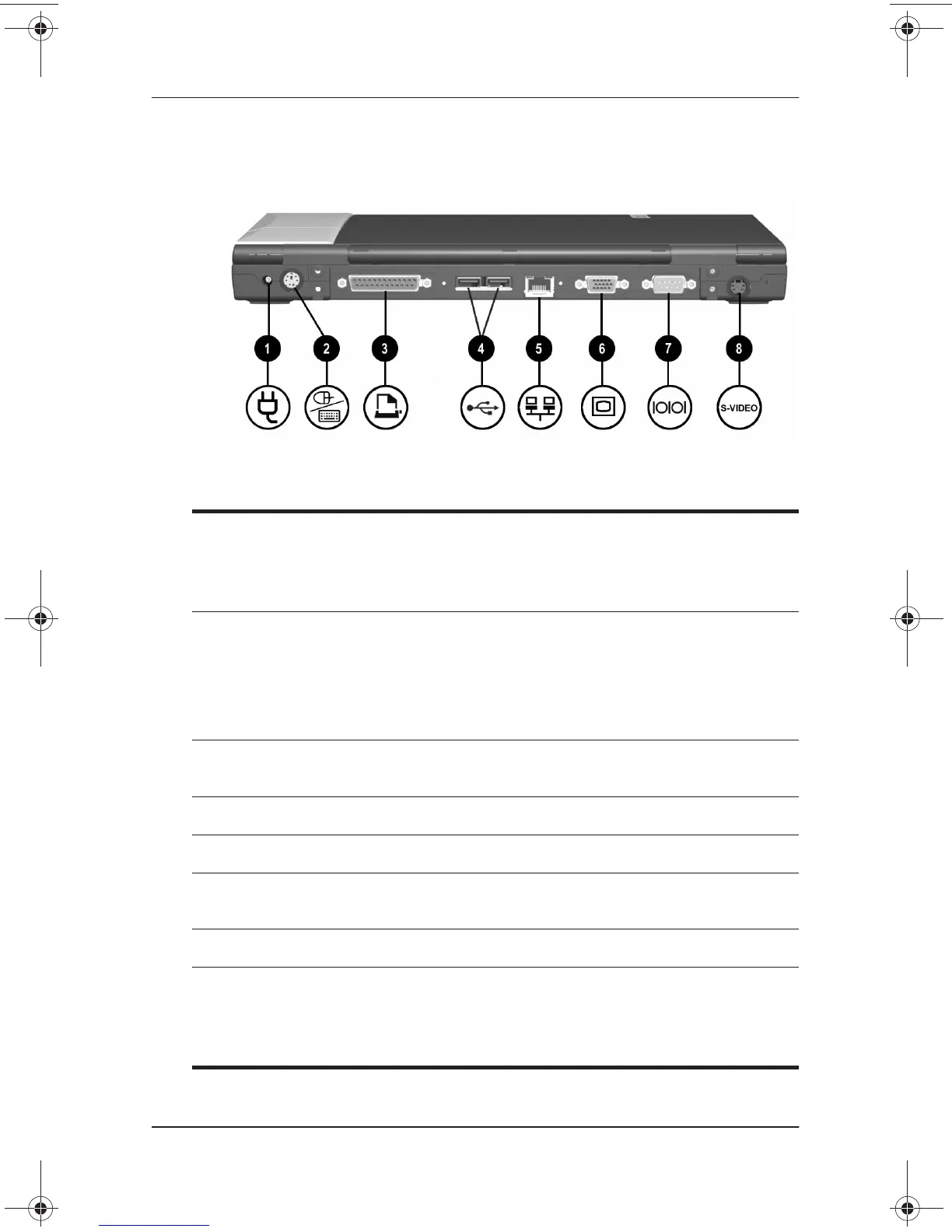

Identifying rear panel components
1
DC power connector Connects an AC Adapter or an
optional Automobile Power
Adapter/Charger, Aircraft Power
Adapter, or DC cable.
2
Keyboard/pointing device
(PS/2) connector
Connects an optional PS/2 device
such as a keyboard or mouse.
✎
To connect a keyboard and
a mouse at the same time,
use an optional Y-adapter.
3
Parallel connector Connects an optional parallel device,
such as an external diskette drive bay.
4
USB connectors (2) Connect optional USB devices.
5
RJ-45 jack Connects a network cable.
6
External monitor connector Connects an optional external
monitor or overhead projector.
7
Serial connector Connects an optional serial device.
8
S-video-out jack Connects an optional S-video device,
such as a television, VCR,
camcorder, overhead projector, or
video capture card.
