Compaq MV7540 User Manual

HP MV7540
10

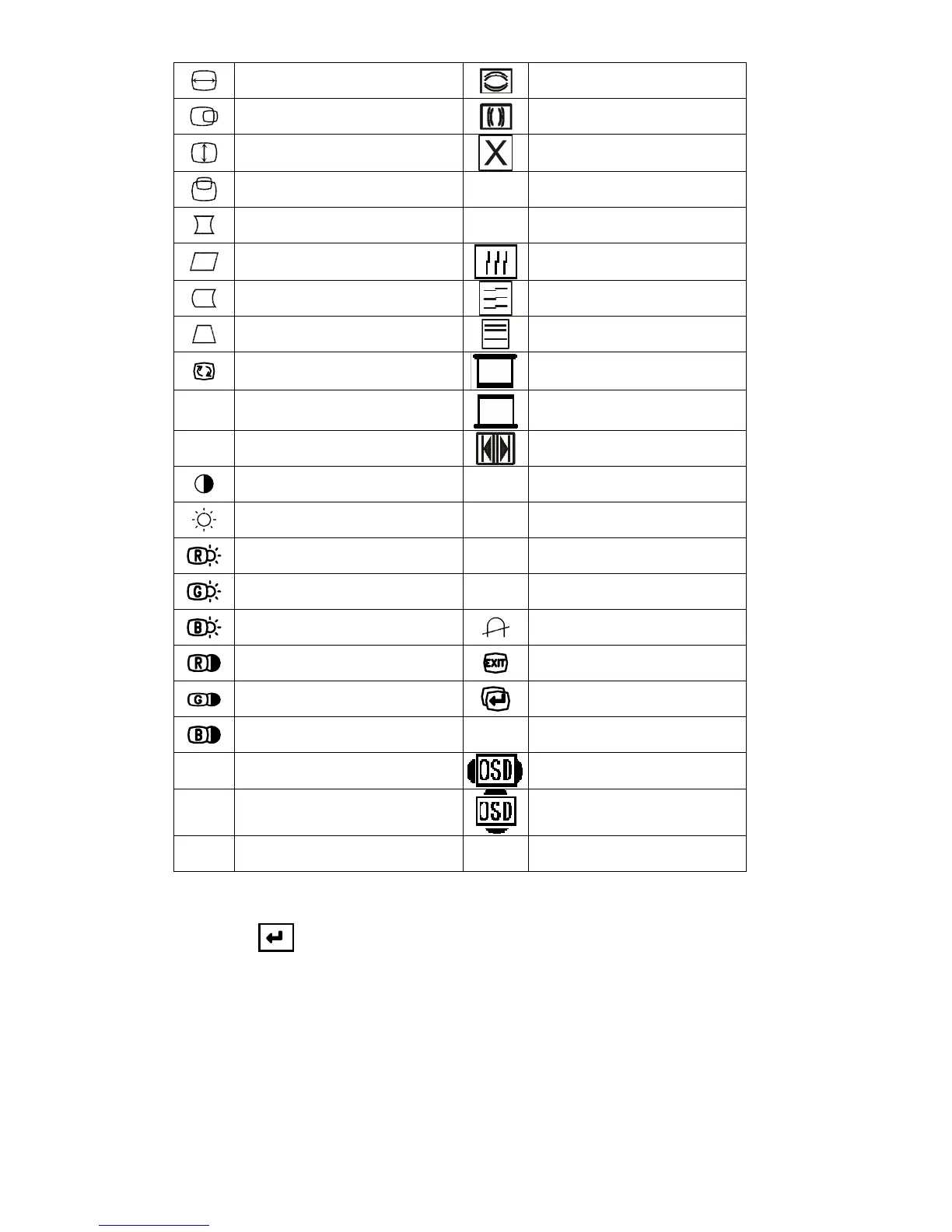

H-SIZE
H-MOIRE REDUCE
H-CENTER
V-MOIRE REDUCE
V-SIZE
MOIRE DISABLE
V-CENTER
HE
NO USE
PINCUSHION
VE
NO USE
PARALLELOGRAM
NO USE
PIN-BALANCE
V-LINEARITY
TRAPEZOID
V-LINEARITY
ROTATION
TOP CORNER
SH
NO USE BOT CORNER
AB
ABL ADJUST FREQUENCY SELECT
CONTRAST
HM
MAX-HSIZE MODIFY
BRIGHTNESS
VM
MAX-VSIZE MODIFY
R-BIAS
KM
MAX-TRAPEZOID MODIFY
G-BIAS
BI
BI SELECT FUNCTION
R-BIAS
DEGAUSS
R-GAIN
OSD EXIT
G-GAIN
RETURN
B-GAIN
Tm
BURN IN TIME
9300
COLOR TEMPERATURE
USER OSD HORIZONTAL
LOCATION ADJUST
6500
COLOR TEMPERATURE
USER OSD VERTICAL
LOCATION ADJUST
5500
COLOR TEMPERATURE
FV
FACTORY OSD VERTICAL
LOCATION ADJUST
D. To switches the input signal to the other Timing Mode. Please follow step A ~ C to get the optimum
picture.(H/V-size:312*234mm)
E. Select the "
" RETURN function and press the MENU Key, then the Factor Preset window will be
returned to the original OSD window.(user's operating condition)
F. The setting data of the CONTRAST, BRIGHTNESS, ROTATION, COLOR TEMPERATURE are
common mode saved in the memory. Don't needed adjust it individual at every timing Mode and save in
the memory.
3. White Balance, Luminance adjustment:
A. Bias (Raster) adjustment:
(a) Set mode8 1024×768 @85Hz full white pattern(100% white field).
(b) To make the adjustment condition is under the Factory preset OSD menu.
Same as step 2-B.
(c) Warm up more than 20 minutes.
