HP MV7540

4. Adjustment

4-1 Adjustment Conditions And Precautions

1. Approximately 30 minutes should be allowed for warm up before proceeding.

2. Adjustments should be undertaken only on those necessary elements since most of them have been

carefully preset at the factory.

4-2 Main Adjustments

No. Function Location Designation

1 B + ADJ PCB - MAIN VR902

2 SCREEN ADJ FLY BACK TRANS T402

3 FOCUS ADJ FLY BACK TRANS T402

4 ABL ADJ FACTORY OSD ABL FUNCTION

- SELECT PCB - MAIN <SW101>

- DOWN (-) PCB - MAIN <SW102>

- UP (+) PCB - MAIN <SW103>

5 FUNCTION ADJ

- MENU PCB - MAIN <SW104>

4-3 Adjustment Method

1. B + & HV voltage adjustment:

A. Chroma-2000 Signal generator or PC equivalent set mode 1, VGA 640X480 pattern 1.0 .

B. Connect a DC Volt meter between D925 cathode and ground, then adjust VR902 to be 66.0 VDC for

CPT CRT or LPD CRT.

2. Factory preset Timings Adjustment:

A. Press MENU Key to show OSD window press Up or Down Key to switch the functional controls.

B. Press the Up Key to select the "MORIE" function, then press the SELECT Key. While do not release the

SELECT Key until the OSD window changed to the Factory preset window.

C. The Factory preset window contains the following functional controls. Select one of the control. Then

press the Up/Down Key to adjust its value for the optimum picture.

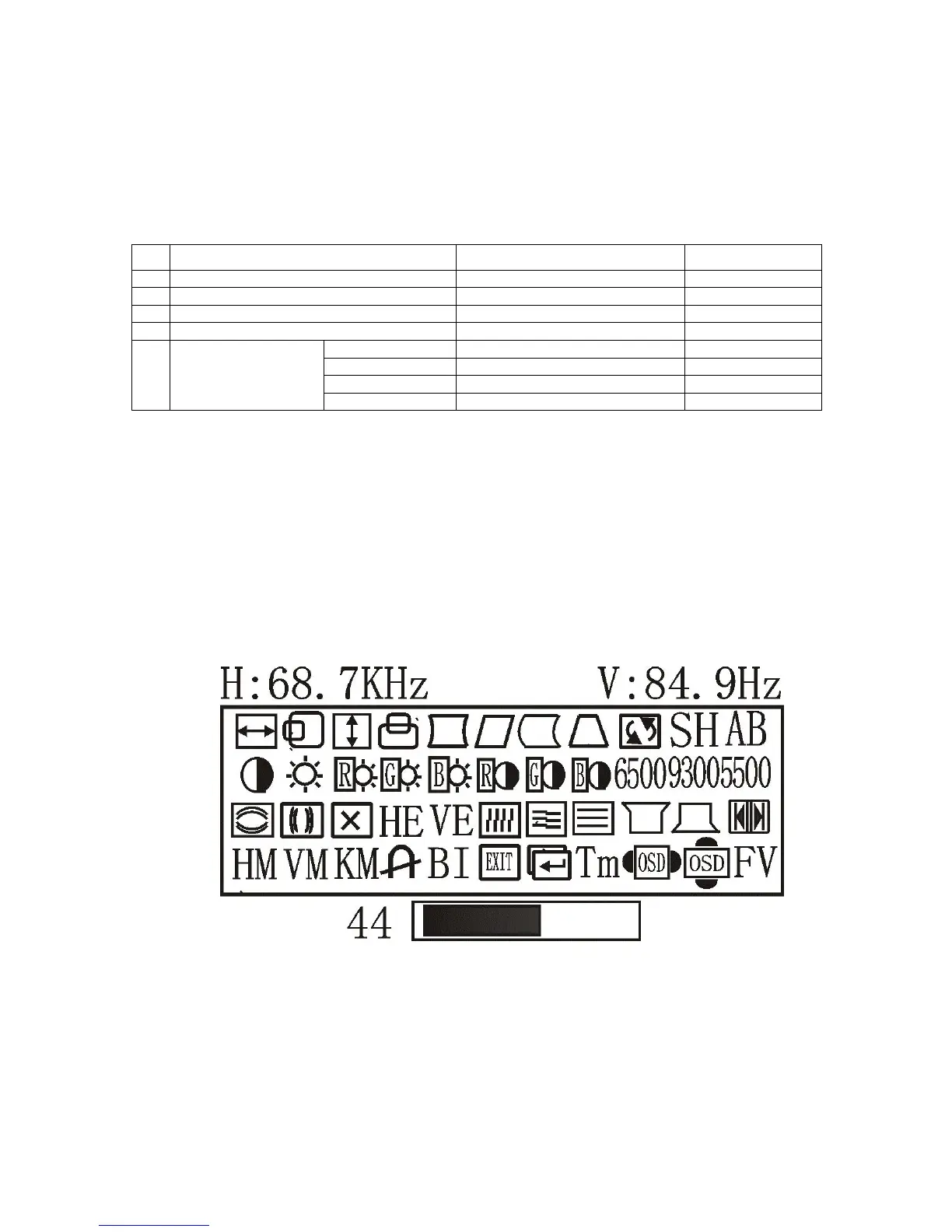

(The OSD menu for factory preset FOR WT CPU)
