Compaq P1210 User Manual

(Female)
DB9-15P
MOUNTED ON THE REAR PANEL
PIN ASSIGNMENTS
DDC................... DISPLAY DATA CHANNEL
SDA ...................SERIAL DATA
SCL ....................SERIAL CLOCK
NC .....................NO-CONNECTION
DDC ............... DISPLAY DATA CHANNEL
SDA ................ SERIAL DATA
SCL ................ SERIAL CLOCK
NC .................. NO-CONNECTION
Approx. 1.8m
DB9-15P(Male) DB9-15P(Male)
7 APPENDIX
7
3
2
1
68
10
13
45
11
14
12
15
9
4
3
2
1
10
10
11
11
13
13
14
14
6 7
8
5
9
12
12
15
15

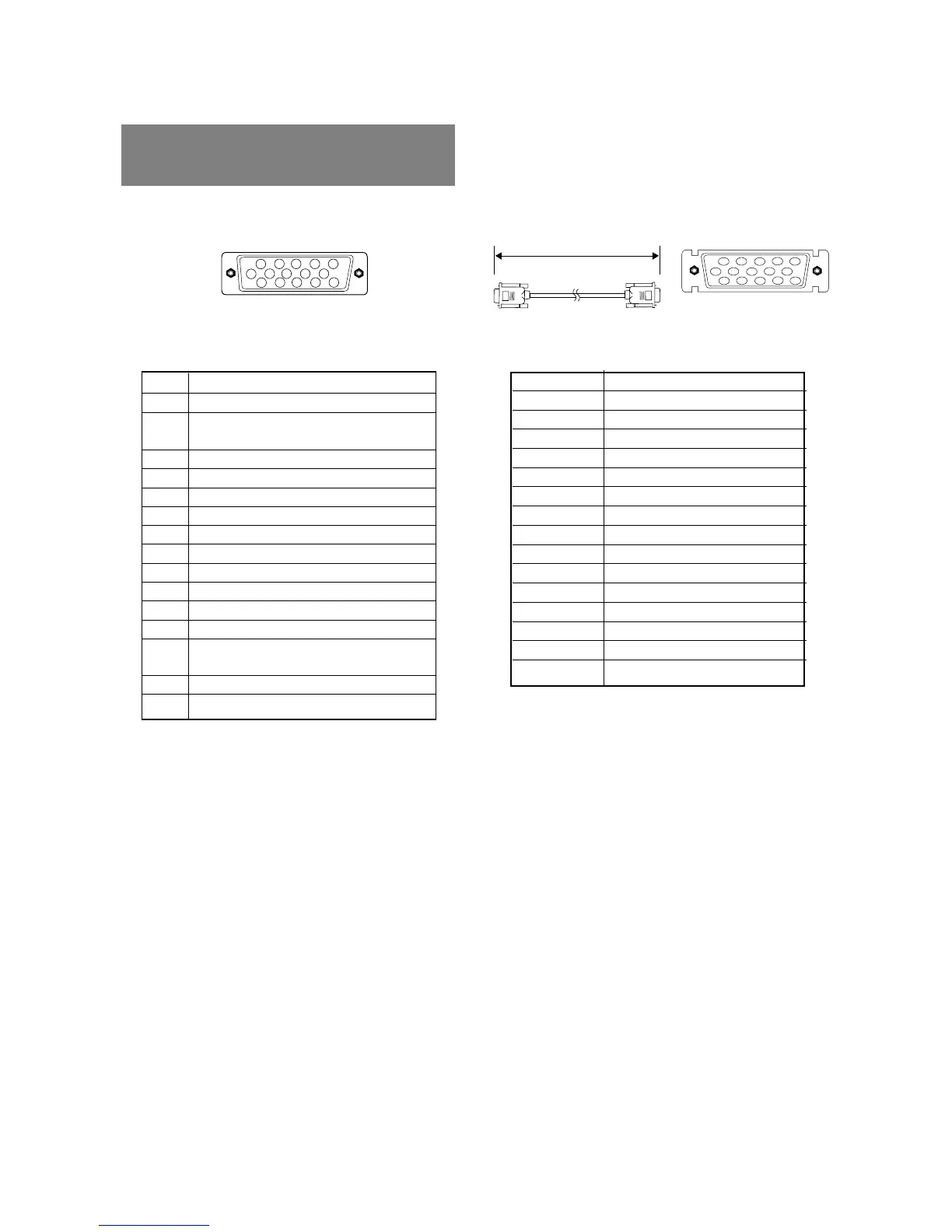

Monitor Signal Input Connector (DB9-15P) SC-B104 Signal Cable
Pin No. Signal
1 RED VIDEO
2 GREEN VIDEO
or COMPOSITE SYNC with GREEN VIDEO
3 BLUE VIDEO
4 GROUND
5 DDC GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND
9NC
10 SYNC GROUND
11 GROUND
12 SDA
13 HORIZONTAL SYNC
or COMPOSITE SYNC
14 VERTICAL SYNC(VCLK)
15 SCL
PIN ASSIGNMENTS
Pin No. Signal
1 RED
2 GREEN
3 BLUE
4 GROUND
5 DDC GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND
9NC
10 SYNC GROUND
11 GROUND
12 SDA
13 HORIZONTAL SYNC
14 VERTICAL SYNC(VCLK)
15 SCL
