Compaq P900 - 5 Exploded Views; Chassis

— 28 —
P900
22
14
8
10
15
31
7
9
13
20
11
12
21
18
19
16
17
30
32
25
26
23
24
28
29
1
2
3
4
5
6
27
33
SECTION 5
EXPLODED VIEWS
Note:
The components identified by shading and
mark are critical for safety.
Replace only with part number specified.
• Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
• The component parts of an assembly are
indicated by the reference numbers in the
remarks column.
• Items marked " * " are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.

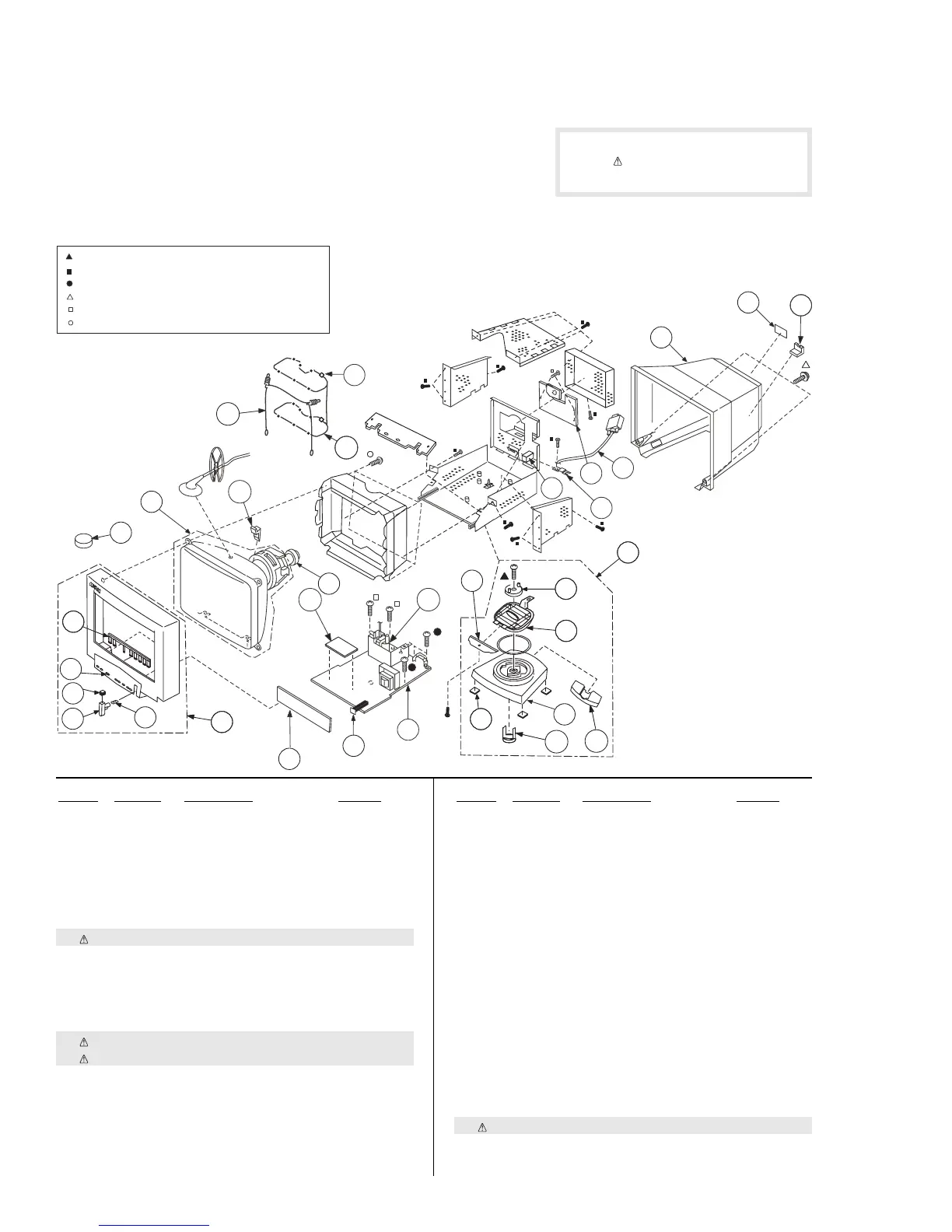

5-1. CHASSIS
REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK
1 * X-4037-185-1 BEZEL ASSY 2-6
2 4-063-224-01 SPRING, COMPRESSION
3 * 4-072-776-01 BUTTON, POWER
4 * 4-072-777-01 GUIDE, LIGHT
5 * 4-072-775-01 BUTTON, MULTI
6 * 4-072-773-01 BUTTON, SLIDE
7 8-736-407-61 ITC ASSY (19TKC-R1)
8 * A-1372-725-A H MOUNTED PC BOARD
9 * 4-072-440-01 CAP, POWER BUTTON (F99)
10 * A-1346-862-B D COMPLETE PC BOARD
11 4-040-897-01 SPACER, DY
12 1-452-912-61 NECK ASSEMBLY (NA-2914)
13 1-419-285-11 COIL, DEGAUSSING
14 * 4-061-573-01 SPRING, TENSION
15 4-041-021-11 HOLDER, DEGAUSING COIL
16 1-251-382-31 INLET, AC 3P(WITH NOISE FILTER)
17 * 4-045-131-01 STOPPER, CABLE
18 * A-1299-063-A A COMPLETE PC BOARD
19 1-791-754-11 CABLE ASSY(15P DSUB CONNECTOR)
20 * 4-072-772-01 CABINET
21 * 4-072-770-01 LABEL, INFORMATION
(US/CANADA/AEP MODELS ONLY)
21 * 4-072-770-11 LABEL, INFORMATION
(JAPAN/N.HEMISPHERE/UK MODELS ONLY)
21 * 4-072-770-21 LABEL, INFORMATION (AUS MODEL ONLY)
22 * 4-072-441-11 COVER, CABLE
23 X-4037-008-1 BASE ASSY, STAND 24-29
24 4-065-886-01 STOPPER, A
25 4-071-065-21 SLIDER
26 4-065-885-01 STOPPER, B
27 * 4-071-886-01 BASE, USB STAND
28 * 4-060-533-01 CUSHION
29 * 4-071-887-01 COVER, USB
30 * A-1390-957-A N MOUNTED PC BOARD
31 1-452-032-00 MAGNET,DISC
32 1-453-317-11 FBT ASSY NX-4700//X4E4
33 * 4-073-997-01 SUPPORT, SLIDER
7-685-882-09 SCREW +BVTT 4X10 (S)
7-685-881-09 SCREW +BVTT 4X8 (S)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
7-685-872-09 SCREW +BVTT 3X8 (S)
4-365-808-01 SCREW (5) TAPPING
